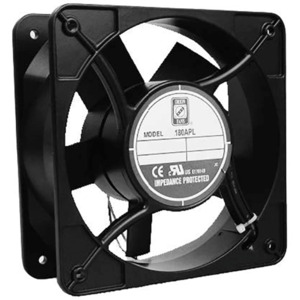

OD180APL-12HTBIP68 Orion Fans | Fans, Thermal Management | DigiKey

Fan Tubeaxial 12VDC Square - 180mm L x 180mm H Ball 460.0 CFM (12.88m?/min) 2 Terminals

Orion Fans . OD180APL-12HTBIP68

Attributes

Brand name, Manufacturer name, Manufacturer, MfrOrion Fans
DimensionUnitmm
Extra Product NameOD180APL-12HTBIP68 Orion Fans | Fans, Thermal Management | DigiKey
atoms1
extraShipping, qtyInStock0
moq, multiple, tierMinQty12
MPNOD180APL-12HTBIP68
SKU16342737
snippetFan Tubeaxial 12VDC Square - 180mm L x 180mm H Ball 460.0 CFM (12.88m?/min) 2 Terminals
tierPrice1159.35500
width65.0
width_AttribWidth
CategoryFans, Thermal Management
SeriesOD180APL-IP68
PackageBox
Product StatusActive
Voltage - Rated12VDC
Size / DimensionSquare - 180mm L x 180mm H
Width65.00mm
Air Flow460.0 CFM (12.88m?/min)
Static Pressure1.100 in H2O (274.0 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesAuto Restart
Noise63.2dB(A)
Power (Watts)50.4 W
RPM3375 RPM
Termination2 Terminals
Ingress ProtectionIP68 - Dust Tight, Waterproof
Operating Temperature-4 ~ 149?F (-20 ~ 65?C)
Approval AgencyCE, cURus, TUV, UR
Weight-
Current Rating (Amps)4.20A
Voltage Range9 ~ 13.8VDC
Material - FrameAluminum
Material - BladePolybutylene Terephthalate (PBT)
Lifetime @ Temp60000 Hrs @ 40?C
