SunSource | 25U085 GRACO Lubrication | SunSource.com

25U085 GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.

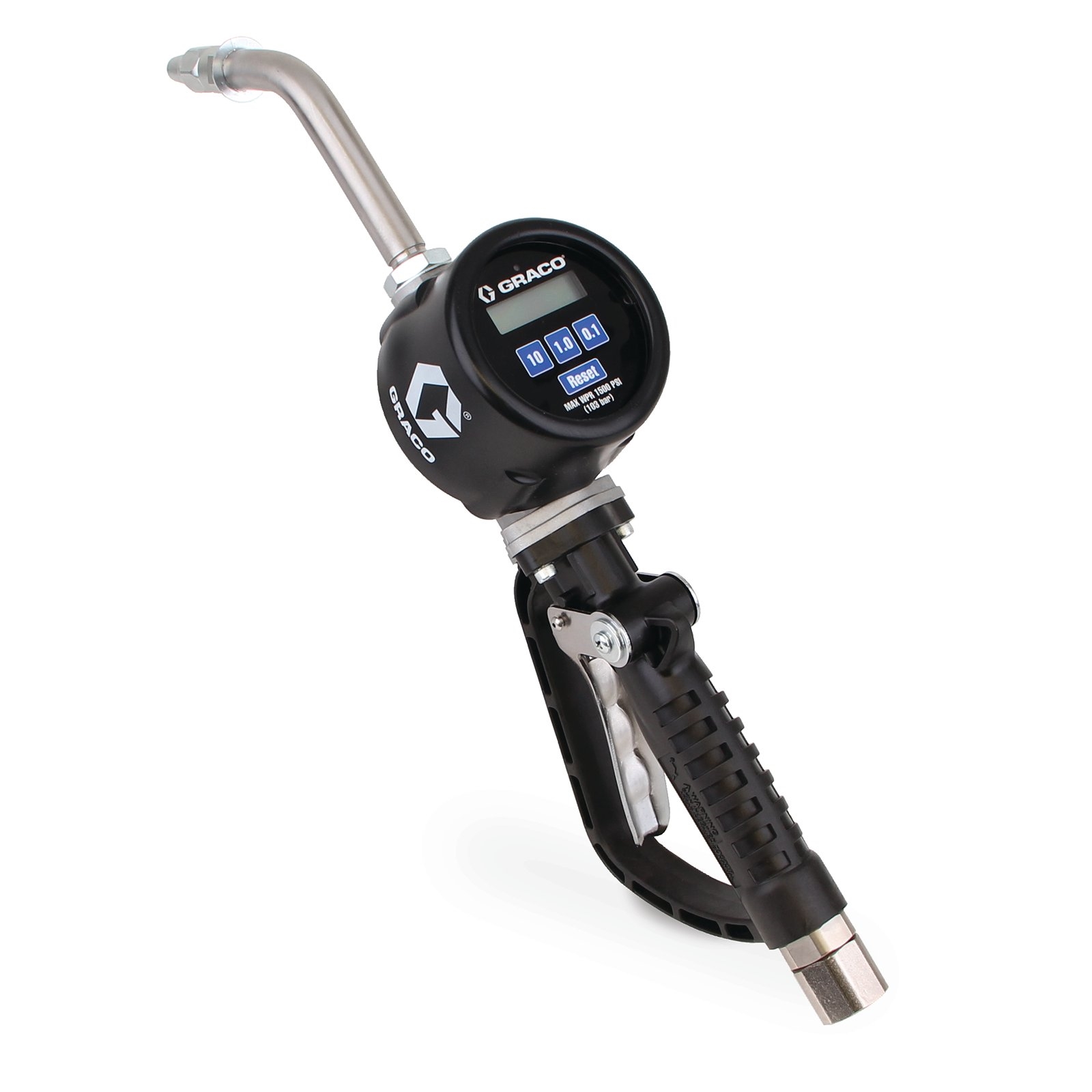

GRACO . 25U085

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerGRACO
Extra Product NameSunSource | 25U085 GRACO Lubrication | SunSource.com
Weight, Metering gun weight (kg)2.4
WeightUnitkg
Weight_AttribMetering gun weight (kg)
jsonUrlData5c79ce09-4e3c-4d33-a06c-ae4e00ebf980
keywordsVALVE, PM8, 1/2"NPT, RIGIG, AF 25U085
moq, multiple, tierMinQty11
MPN, SKU25U085
qtyInStock, tierPrice10
snippet25U085 GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.
Calibration typeFactory Calibrated
Compatible materialPetroleum-Based Oil;Synthetic-Based Oil;Antifreeze
Dimension uom codeIN
Dispense typePreset
Display TypeElectronic
Division codeLED
Extension typeRigid
Fluid inlet thread gender, Fluid outlet thread genderFemale
IncludesNozzle;Extension
Inlet size (cm)1.27
Inlet size (in)1/2
Inlet size (mm)12.7
Inlet thread typeNPT
Ip rating69K
Maximum flow rate (cc/min)30283
Maximum flow rate (cc/sec)505
Maximum flow rate (gpm)8
Maximum flow rate (l/min)30.3
Maximum operating temperature (?c)52
Maximum operating temperature (?f)125
Maximum recorded dispense, Maximum totalizer19999
Maximum storage temperature (??c)85
Maximum storage temperature (??f)185
Maximum working pressure (bar)13.8
Maximum working pressure (kpa)1380
Maximum working pressure (mpa)1.4
Maximum working pressure (psi)200
Meter accuracy, Meter accuracy (%)??0.5
Meter pressure loss (bar)4.1 Bar at 6 GPM
Meter pressure loss (psi)60 PSI at 6 GPM
Meter technologyOval Gear
Metering gun weight (lb)5.2
Minimum flow rate (gpm)0.25
Minimum operating temperature (?c)-29
Minimum operating temperature (?f)-20
Nozzle typeManual
Outlet size (cm)1.905
Outlet size (in)3/4
Outlet size (mm)19.05
Outlet thread typeORB
Overall height (cm)18.3
Overall height (in)7.2
Overall height (mm)183
Overall length (cm)54.4
Overall length (in)21.4
Overall length (mm)544
Overall width (cm)10.4
Overall width (in)4.1
Overall width (mm)103.5
Recommended environmentIndoor/Outdoor
Trigger lockLocking
Trigger protection typeLock Off Button
TypeElectronic Metered Dispense Valve
Unit of measureQuart;Pint;Liter;Gallon
Valve TypeMetered
Wetted MaterialAluminum;Stainless Steel;Carbon Steel;Acetal;Nitrile Rubber;Geolast?

Distributor offers

SellerSKUMOQIn stockMultiplePrices
sun-source.com25U085111 @ $0.00
