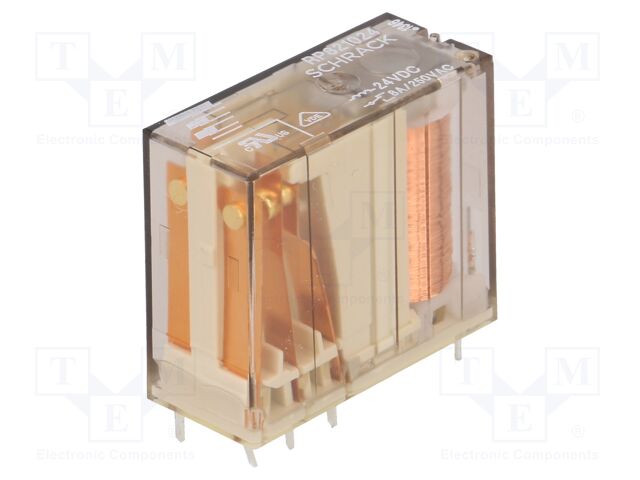

TE Connectivity 0-1393845-5 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 8A; PCB

TE Connectivity 0-1393845-5 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 8A; PC

TE Connectivity . 0-1393845-5

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTE Connectivity
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameTE Connectivity 0-1393845-5 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 8A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData19e1fa40cb366f15955b0c000b4485db.
jsonUrlData2be9c0e9e1b39314a3049
keywordsTE Connectivity, 0-1393845-5, RP821024, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN0-1393845-5
qtyInStock569
SKURP821024
snippetTE Connectivity 0-1393845-5 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 8A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice19
tierPrice27.36
tierPrice36.13
tierPrice45.73
tierPrice55.4
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage24V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 300V DC,
Relay variantminiature
MountingPCB
Coil resistance270?
Operate time8ms
Body dimensions29x12.6x25.5mm
Release time2ms
Coil power consumption500mW
IP ratingIP67
Mechanical durability30000000 cycles
Operating temperature-40...70?C
Relay seriesRPII/2
Switching capacity4kVA
Contact materialAgNi + Au
Terminal pitch5mm
Coil current21.8mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERP821024156911 @ $9.00, 5 @ $7.36, 25 @ $6.13, 100 @ $5.73, 500 @ $5.40
