Marathon Motors

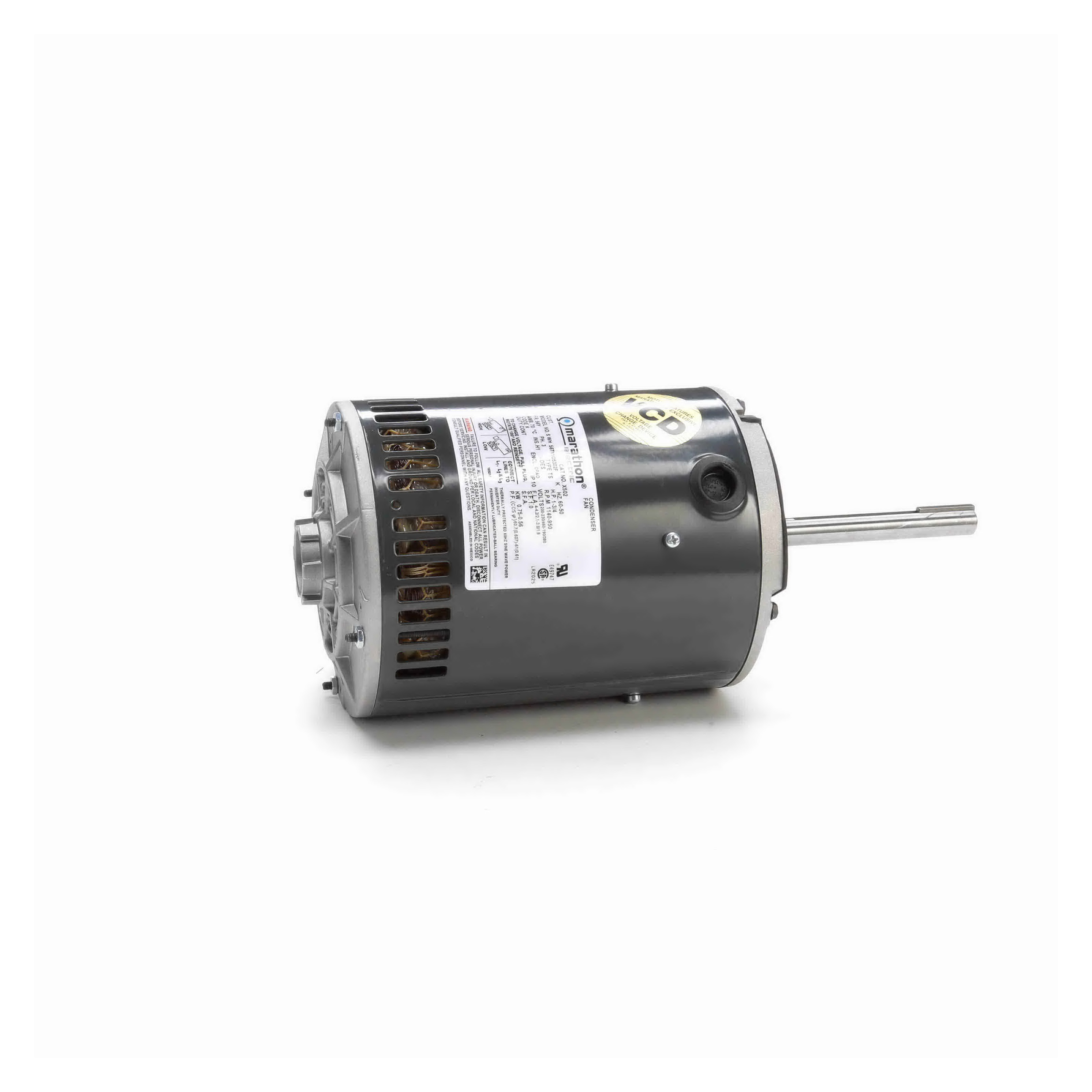

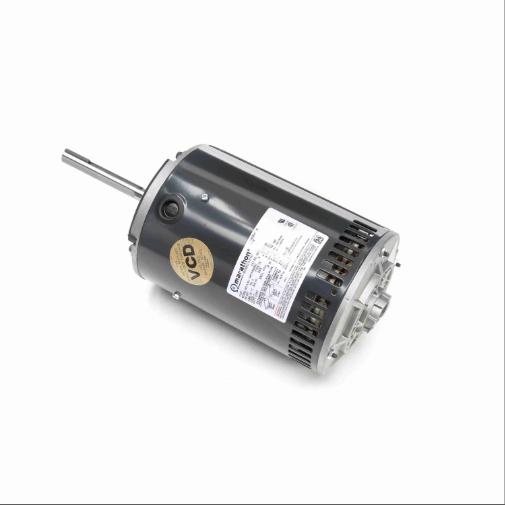

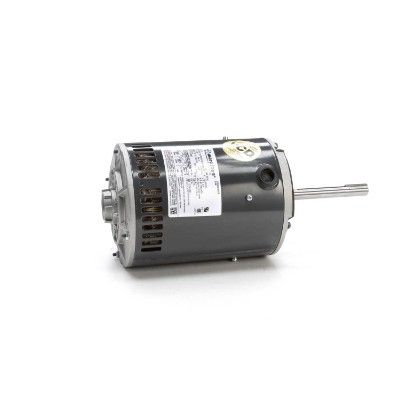

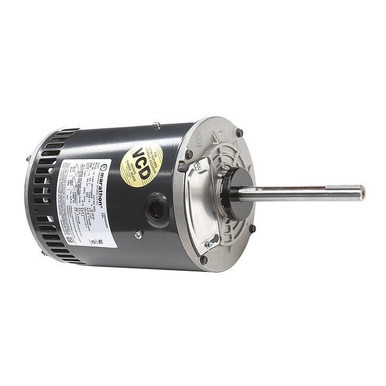

056T11O5302 X502 HVAC Motor 50-60 Hertz | X502 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Marathon Motors . 056T11O5302

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameMarathon Motors
DimensionUnitinch
GraingerSku490T62
UPC722856038425
UnitOfMeasureEA
Voltage, Voltage @ 50Hz200-230/460V AC
Weight27.6
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height8.3
jsonUrlData924526ffbdad25e5923b
length16.6
moq, multiple, tierMinQty1, No of Speeds, HP, Motor Service Factor, Service Factor @ 50Hz, HP @ 50Hz1
MPN056T11O5302
qtyInStock95
qtyInStockOverride-2
SKUG7347127
tierPrice1398.11
urlhttps://www.zoro.com/marathon-motors-condenser-fan-motor-1-hp-56y-frame-056t11o5302/i/G7347127/
width7.9
Features(4) Locating Screws 90 Degrees Apart, 3 5/16 in From Outer Edge of Shaft Slinger, Voltage Change Device for Quick Voltage Changes
Capacitor Required, Removable BaseNo
Max Ambient Temp70 Degrees C
Shaft Length5 in
Motor Shaft RotationCW/CCW
Motor Mounting TypeRound Belly Band
RPM Range1,101-1,200
Motor Thermal ProtectionAuto
Motor Design3-Phase
Overall Length15 1/16 in
Ins ClassH
Motor Shaft DesignKeyed with Single Flat
StandardsCSA Certified (LR2025), UL Recognized
Application, Motor Sub ApplicationCondenser Fan
Motor ApplicationHVAC/R
Motor BearingsBall
Hz60/50
Motor Mounting PositionHorizontal or Vertical Shaft Up
PhaseThree
Body Dia6 1/2 in
Frame56Y
Nameplate RPM, RPM @ 50Hz1,140
Nominal Efficiency75.5 %
ItemCondenser Fan Motor
Shaft Dia5/8 in
Duty, Duty CycleContinuous
Manufacturers Warranty Length1 yr
Motor Enclosure DesignOpen Air-Over
Full Load Amps, Full Load Amps @ 50Hz4.2-4.0/2.1
Length Less Shaft10 1/16 in
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Motor Frame MaterialSteel
Usable @ 208V, Usable @ 200VYes
Conduit Box LocationExterior
Output Watts750 W
Conduit Box PositionF1
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG734712719511 @ $398.11
Raptor SuppliesAJ2KXK111 @ $839.50
Dealers Electric056T11O5302111 @ $654.72
PurvisX5021-211 @ $569.86
motorsandcontrol.comX5021411 @ $444.94
simsupply.comCU-34393054363211411 @ $418.13
pumpproducts.com056T11O53021-211 @ $1128.00
simsupply.comZO-G734712714211 @ $461.89
Grainger490T62111 @ $468.67
Galco056T11O5302-MARA111 @ $398.11
Platt.com210558911
