Marathon Motors

http://www.sustainablesupply.com/cdn/shop/products/44N962_AS01_1024x.jpg

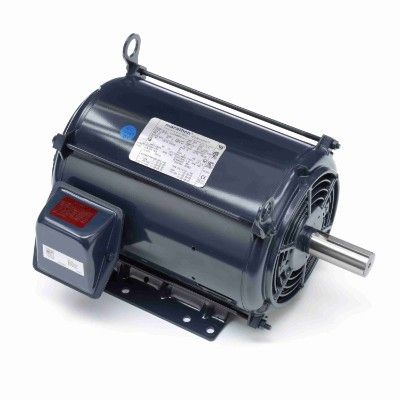

Marathon Motors . 213TTDBD6076

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameMarathon Motors
DimensionUnitinch
GraingerSku44N962
UPC, Motor Thermal ProtectionNone
UnitOfMeasureEA
Voltage230/460V AC
Weight136
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
extendedLead26
extendedQty-2
height14
jsonUrlData924526ffbdad25e5923b
length22.5
moq, multiple2
MPN213TTDBD6076
perItemShipping100.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG5565287
tierMinQty1, No of Speeds1
tierPrice11127.05
urlhttps://www.zoro.com/marathon-motors-3-phase-general-purpose-motor-3-hp-213t-frame-230460v-ac-voltage-1-183-nameplate-rpm-213ttdbd6076/i/G5565287/
width16.81
ItemGeneral Purpose Motor
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeRigid Base
HP3
RPM Range1,101-1,200
Frame213T
Motor Service Factor1.15
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor ApplicationGeneral Application
Motor Design3-Phase
Nameplate RPM1,183
Motor Shaft RotationCW/CCW
Motor Mounting PositionHorizontal
Motor Frame MaterialSteel
Motor Shaft DesignKeyed
StandardsCE, CSA (LR2025), UL (E49747)
IncludesConduit Box
PhaseThree
RPM Group1101-1200
Motor BearingsBall
Ins ClassF
Hz60
Frame MaterialRolled steel
Overall Length17 1/2 in
Duty, Duty CycleContinuous
Manufacturers Warranty Length1 yr
Shaft Length3 3/8 in
Shaft Dia1 3/8 in
Nominal Efficiency88.5 %
Full Load Amps8.4/4.2
Inverter RatedYes
Max Ambient Temp40 Degrees C
Motor Efficiency GroupNEMA Premium Efficient
Length Less Shaft14 1/8 in
CC NumberCC003A
Capacitor Required, Usable @ 208V, Usable @ 200VNo
Green Certification or Other RecognitionNEMA Premium(R) Rated
NEMA DesignB
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG5565287221 @ $1127.05
sustainablesupply.comC27914531Add to Cart11 @ $1133.97
motorsandcontrol.comGT0011A111 @ $0.00
pumpproducts.com213TTDBD60761-211 @ $1691.24
Galco213TTDBD6076-MARA111 @ $806.13
