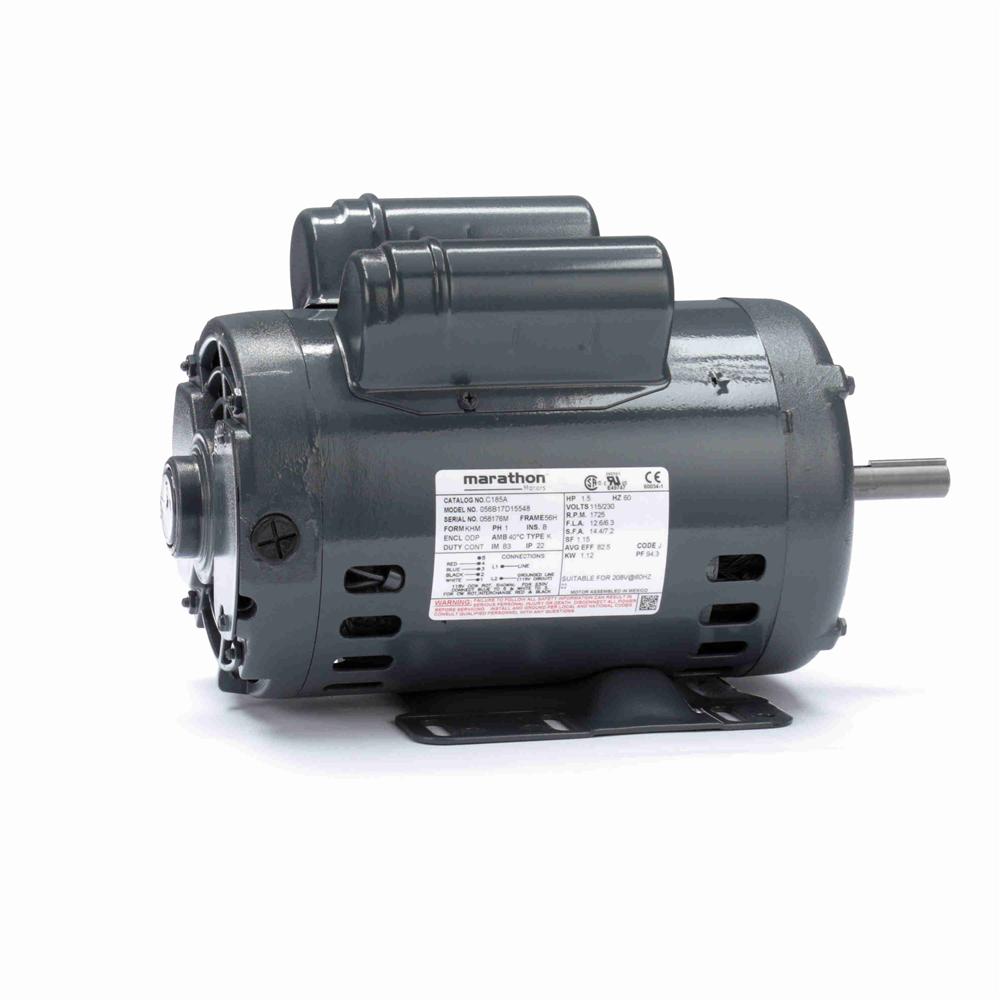

Marathon C185A 6-1/2" Diameter General Purpose Motor - C185B
Replaces Marathon cat# C185A, Model#?056B17D15548.? Bearings: Ball Duty Cycle: Continuous Efficiency:?83.8% Enclosure Material: Steel Enclosure Type: ODP (Open Dripproof) Frame: 56 HP: 1-1/2 Hz: 60 Insulation Class: B Manufacturer Model #: 056B17DRR70037A1 Maximum Ambient Temperature: 40? C Motor Diameter: 6-1/2" Motor
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Marathon |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Marathon C185A 6-1/2" Diameter General Purpose Motor - C185B |
| Voltage, Volts | 115 |
| Weight | 45 |
| WeightUnit | lbs |
| diameter, height, width | 6.5 |
| height_Attrib, width_Attrib | Motor Diameter |
| length | 13.36 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds, Phase | 1 |
| MPN, SKU | C185B |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 501.70 |
| Bearings | Ball |
| Duty Cycle | Continuous |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 56 |
| HP | 1-1/2 |
| Hz | 60 |
| Insulation Class | B |
| Maximum Ambient Temperature | 40? C |
| Motor Diameter | 6-1/2" |
| Motor Shell Length | 11.33" |
| Mounting Orientation | Horizontal |
| Mounting | Base |
| Overall Length | 13.36" |
| Product Type | Capacitor Start/Capacitor Run |
| Rotation | Reversible |
| RPM | 1725 |
| Service Factor | 1.2 |
| Shaft Diameter | 5/8" |
| Shaft Length | 1.88" |
| Thermal Protector | None |
| Ship Weight | 45 lbs. |
