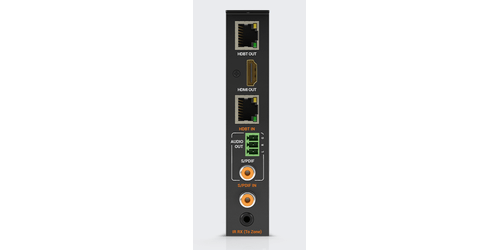

WyreStorm TX-H2X-HDBT HDBaseT Input and HDBaseT Output Card - Conference Room AV
Shop for WyreStorm TX-H2X-HDBT HDBaseT Input and HDBaseT Output Card and other Matrix Switchers with the best prices, free shipping and customer reviews from ConferenceRoomAV.com
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | WYRESTORM |
|---|---|
| KnownMan, Extra Product Name | WyreStorm TX-H2X-HDBT HDBaseT Input and HDBaseT Output Card - Conference Room AV |
| moq, multiple, tierMinQty1 | 1 |
| MPN, SKU | TX-H2X-HDBT |
| qtyInStock | 0 |
| snippet | Shop for WyreStorm TX-H2X-HDBT HDBaseT Input and HDBaseT Output Card and other Matrix Switchers with the best prices, free shipping and customer reviews from ConferenceRoomAV.com |
| tierPrice1 | 1105.00 |
| Inputs | 1x HDMI In19-pin type A / 1x S/PDIF In Coaxial Digital / 1x HDBaseT 8-pin RJ-45 female |
| Outputs | 1x HDBaseT 8-pin RJ-45 female / 1x S/PDIF Out Coaxial Digital / 1x Audio Out 3pin Phoenix Connector |
| Outputs Video Encoding | HDBaseT Class A |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10 s (micro seconds) |
| Audio Formats: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos Video Resolutions (Max) Video Resolutions: 4096x2160p @60Hz 8bit 4:4 | 4 |
| Supported Standards | DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100 |
| Maximum Pixel Clock: HDMI: 600mHz | HDBaseT | 297MHz |
| HDMI | HDCP 2.2 | DVI-D supported with adapter (not included) |
| HDBaseT | HDMI | HDCP 2.2 | 1-way PoH to Receiver | IR RX to Receiver |
| IR | 1x IR RX 3.5mm (1/8in) TRS Stereo | To Receiver over HDBaseT |
| RS-232 | Matrix Control | Bidirectional over HDBaseT | Firmware Updates |
| Ethernet | From Matrix - No Connection on card | Bidirectional over HDBaseT |
| ARC (Audio Return Channel) | Returns audio from displays built-in applications via ARC HDMI Input over HDBaseT (Requires ARC or SCL Receiver) |
| Power Supply | Internal to Matrix |
| Max Power Consumption, Regulatory Safety and Emission | Matrix Dependent |
| PoH | 48V 15.4W |
| Warranty | 5 years |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TX-H2X-HDBT | 1 | 1 | 1 @ $1105.00 | ||
| avalive.com | 273872 | 1 | -2 | 1 | 1 @ $894.00 |
| exertisalmo.com | TX-H2X-HDBT | 1 | 1 |
