Zoro Select

Zoro Select . S-CH-63SPB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameZoro Select
DimensionUnitinch
GraingerSku571Z35
UPCNone
UnitOfMeasureEA
Weight24.68
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead11
extendedQty-2
height7.7
jsonUrlData924526ffbdad25e5923b
length9.2
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-CH-63SPB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9260933
tierPrice1224.33
urlhttps://www.zoro.com/zoro-select-plte-caster-swvl-poly-6-1800-lb-s-ch-63spb/i/G9260933/
width5.6
Caster Brake Included, Extended Lead, Thread GuardsNo
Caster Load Rating RangeMedium-Duty
Caster Sub-TypeSwivel
Caster Wheel Shape, Tread ShapeStandard
Caster Wheel/Tread Material, Wheel/Tread MaterialPolyurethane
Load Rating1800 lb
Overall Height8"
Wheel Dia6 in
Wheel Width3 in
Outside Bolt Hole Spacing4 1/8 in x 6 1/8 in
ApplicationAll Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts
Mounting Bolt Dia1/2 in
Caster Max Temp175 Degrees F
Durometer80 Shore A
Non-Marking, Caster Temp Range AvailableYes
Frame FinishEnamel
Caster Plate Size5-1/4" x 7-1/4"
Core ColorGray
Caster Min Temp-50 Degrees F
StandardsICWM
Caster Raceway, Swivel Raceway TypeSingle Ball
Replacement Wheel49H436
Wheel ColorBlue
Caster Wheel BearingsBall
Caster Plate Hole Pattern, Plate Caster Bolt Hole PatternA
Caster Swivel Lock Type, Swivel Lock TypeNo Lock Included
IncludesSpanner Bushing
Caster Core Material, Wheel Core MaterialCast Iron

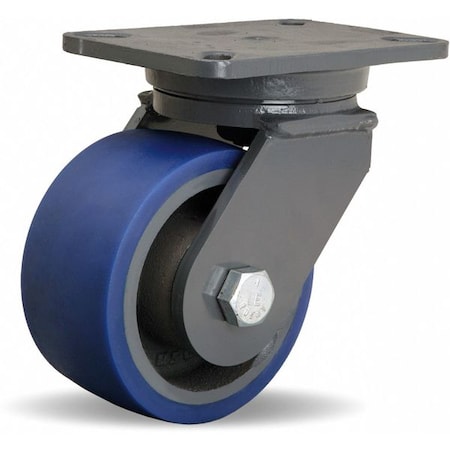

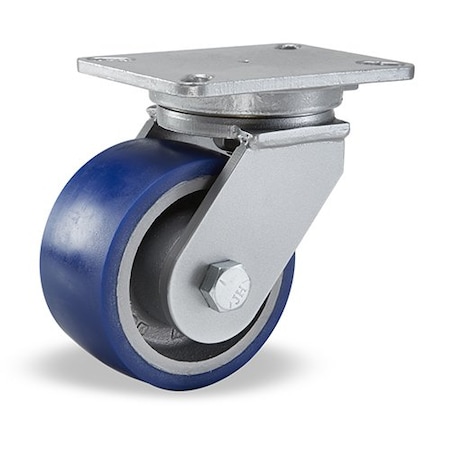

ItemPlte Caster
FeaturesFloor Protective
Caster Product GroupSwivel Caster
Caster Frame MaterialSteel
Caster Plate Thickness1/2"
Inside Bolt Hole Spacing3 3/8 in x 5 1/4 in
Mounting Plate Size5 1/4 in x 7 1/4 in
Load Rating RangeMedium
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9260933111 @ $224.33
ZoroG6866054111 @ $253.08
