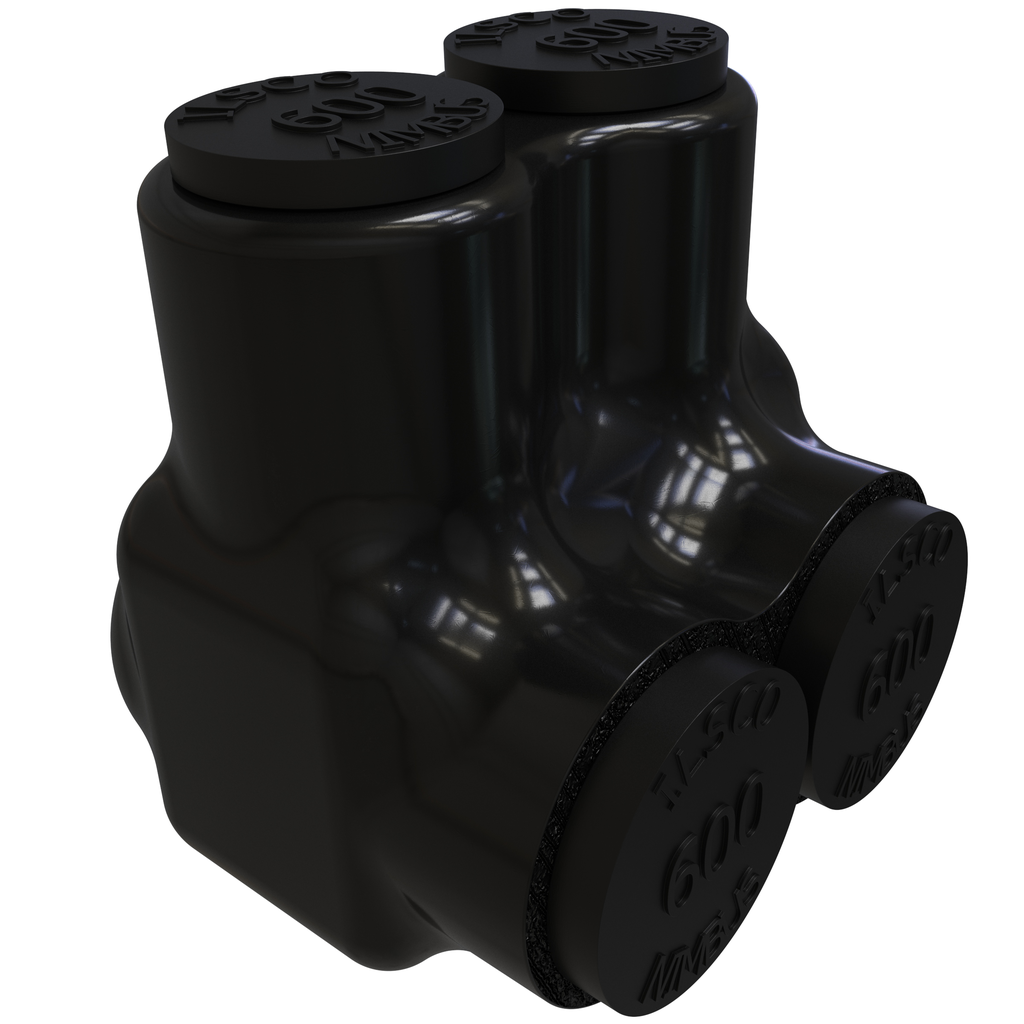

Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 600-4, 2 Ports, Single Sided Entry, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . PBTS-2-500

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameNimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 600-4, 2 Ports, Single Sided Entry, Tin Plated, UL, CSA | Mayer Electric
UPC783669080285
Weight0.707
WeightUnitlbs
Weight_AttribWeight
height3.034
height_AttribHeight
jsonUrlData/Product/ILSCO-Nimbus-Insulated-Aluminum-Multi-Tap-Connector-Conductor-Range-600-4-2-Ports-Single-Sided-Entry-Tin-Plated-UL-CSA-783669080285
jsonUrlData2ab084f7a-7028-4973-92ad-abb200c8edea
length2.781
length_AttribLength
moq, multiple, tierMinQty1, Number of Poles, Number of Wire Binding Screws per Port, Bag Quantity1
MPNPBTS-2-500
qtyInStock0
SKUILSPBTS2500
tierPrice1111.66
width0.10149606299212598
width_AttribWidth
Height3.034 in
Length2.781 in
Width2.578 in | 65.4812 mm
ConnectionMechanical
Contains DE-OX?, Dual RatedYes
Number of Conductors, Number of Ports / Wireways, Number of Usable Ports, Number of Usable Taps2
Replacement Part(s)PORTPLUG-500, SCREWCAP-500
Drive Size Main3/8
Drive Type MainInternal Hex
Height BX (IN)3.75
Max Insulation OD (IN)1.115
Max Insulation OD (mm)28.321
Weight BX (LB)2.3166
Width BX (IN)6
Width (mm)65.4812
Conductor TypeStranded
Conductor MaterialCopper, Aluminum
Connector Finish, Wire Binding Hardware FinishTin
InsulationPlastisol
Material, Wire Binding Hardware MaterialAluminum
Wire Binding Screw Size13/16
Wire Binding Torque375
Conductor Range AL Stranded (Primary, run, main, line), Conductor Range CU Stranded (Primary, run, main, line)600 kcmil - 4 Str
Voltage Rating600 V
Cap Color Main, Cap Color Tap, ColorBlack
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
Prop65 Compliance : WARNINGCancer and Reproductive Harm - www.P65warnings.ca.gov
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
Carton Quantity DescriptionSTD PACK QTY 3
NEMA CodeS-588-4
UPC Code78366908028
Environmental ConditionsCold temperature rated to -45?C
Flammability RatingInsulation rated per UL 94
Temperature Rating90?C
