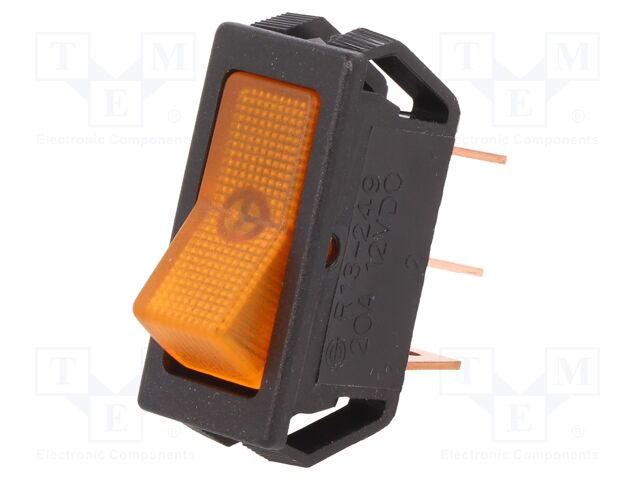

SCI R13-249B-01-BY | ROCKER; SPST; Pos: 2; OFF-ON; 20A/12VDC; orange; neon lamp; 50m?
SCI R13-249B-01-BY | ROCKER; SPST; Pos: 2; OFF-ON; 20A/12VDC; orange; neon lamp; 50m
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SCI |
|---|---|
| CategoryL1 | Switches and Indicators |
| CategoryL2 | Rocker Switches |
| DimensionUnit | mm |
| Extra Product Name | SCI R13-249B-01-BY | ROCKER; SPST; Pos: 2; OFF-ON; 20A/12VDC; orange; neon lamp; 50m? |
| atoms, moq, multiple, tierMinQty1 | 1 |
| diameter, length, width | 29.0 |
| jsonUrlData | d0c05d9971c74d858363971e32a876da.5 |
| jsonUrlData2 | b474663bfcd0e59c570c |
| keywords | SCI, R13-249B-01-BY, Switches and Indicators, Rocker Switches |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN, SKU | R13-249B-01-BY |
| qtyInStock | 238 |
| snippet | SCI R13-249B-01-BY | ROCKER; SPST; Pos: 2; OFF-ON; 20A/12VDC; orange; neon lamp; 50m |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierMinQty5 | 200 |
| tierPrice1 | 1.4836 |
| tierPrice2 | 1.2982 |
| tierPrice3 | 1.1591 |
| tierPrice4 | 0.99 |
| tierPrice5 | 0.79 |
| Type of switch | ROCKER |
| Contacts configuration | SPST |
| Number of positions, Stable positions number | 2 |
| Switching method | OFF-ON |
| DC contacts rating @R | 20A / 12V DC |
| Key button colour | orange |
| Illumination | neon lamp |
| Backlight colour | yellow |
| Max contact resistance: | 50m? |
| Body colour | black |
| Body material | polyamide |
| Leads | 6,35x0,8mm connectors |
| Panel thickness | max. 4mm |
| Mounting hole diameter | 29x11.6mm |
| Button marking | blank |
| Shape, Button shape | rectangular |
| Dimensions | 14x30.5x21.7mm |
| Manufacturer series | R13-249-DC |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| R13-249B-01-BY | 1 | 238 | 1 | 1 @ $1.48, 5 @ $1.30, 20 @ $1.16, 100 @ $0.99, 200 @ $0.79 |
