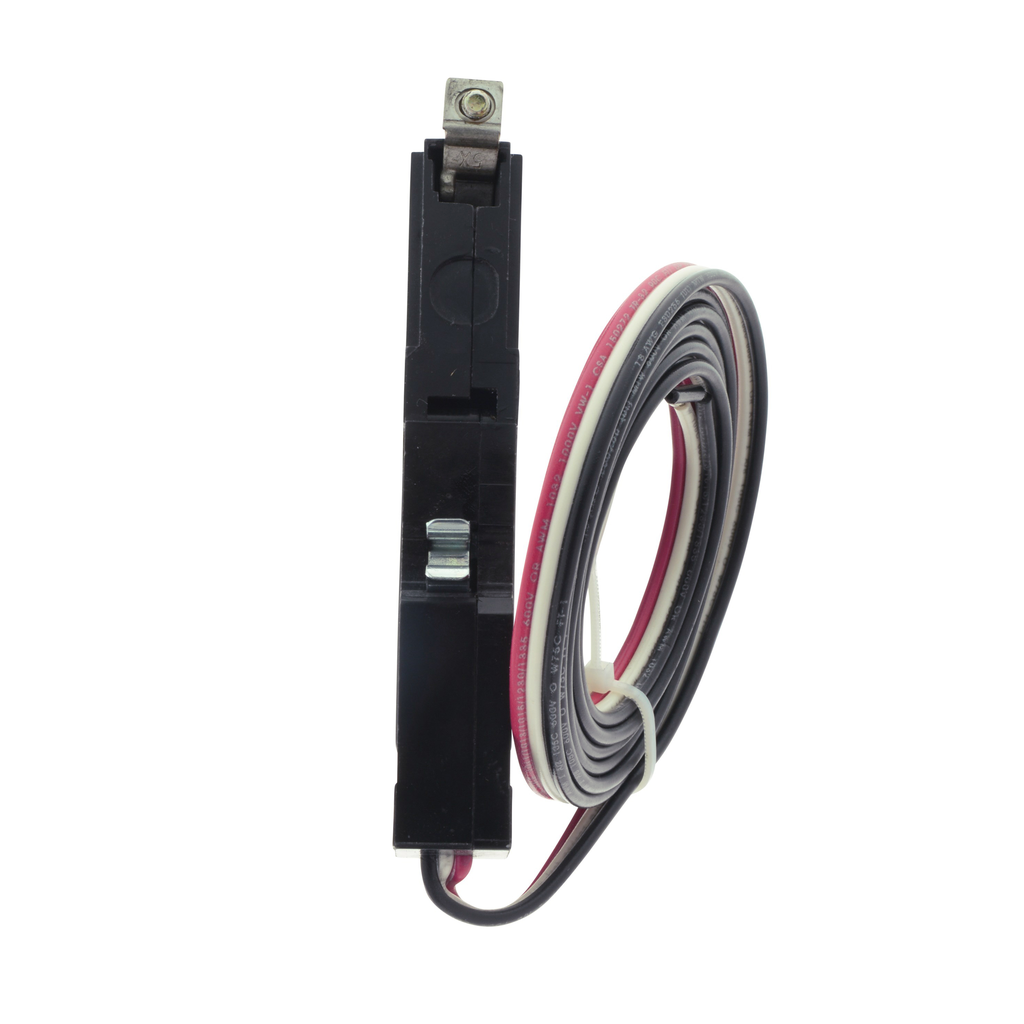

Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, Powerlink, bolt on mount, 60in leads | Mayer Electric

Shop SQUARE D at Mayer. Mini circuit breaker, QO, 20A, 1 pole, 120/240 VAC, 10 kA, Powerlink, bolt on mount, 60 in leads

Mayer Electric Supply . QOB120PL5393

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, Powerlink, bolt on mount, 60in leads | Mayer Electric
UPC785901404750
Weight0.272
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height116.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-20A-1-pole-120-240-VAC-10-kA-Powerlink-bolt-on-mount-60-in-leads-785901404750
jsonUrlData290687694-cfe9-4f86-a179-abd20062df28
keywordsSQUARE D, Mayer SQUARE D, 785901404750, QOB120PL5393
length_AttribDepth
moq, multiple, tierMinQty1, Number Of Spaces Required1
MPNQOB120PL5393
qtyInStock0
SKUSQDQOB120PL5393
snippetShop SQUARE D at Mayer. Mini circuit breaker, QO, 20A, 1 pole, 120/240 VAC, 10 kA, Powerlink, bolt on mount, 60 in leads
tierPrice1139.98
width19.0
width_AttribWidth
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C
Warranty18 months
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free product
Height116 mm
Tightening Torque4-4 N.m
Provided Equipment60 in lead
Net Weight0.272 kg
Breaking Capacity10 kA 120/240 V AC 50/60 Hz || 10 kA
Awg GaugeAWG 12...AWG 2 aluminium || AWG 14...AWG 2 copper
Width19 mm
Depth74 mm
Circuit Breaker Typestandard
Range Of ProductQO
Product Or Component Typecircuit breaker
Circuit Breaker ApplicationHACR rated
Mounting Modebolt-on
Poles Description1P
Electrical Connectionbox lugs
Line Rated Current20 A
[Ue] Rated Operational Voltage120/240 V AC

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQOB120PL5393111 @ $139.98
