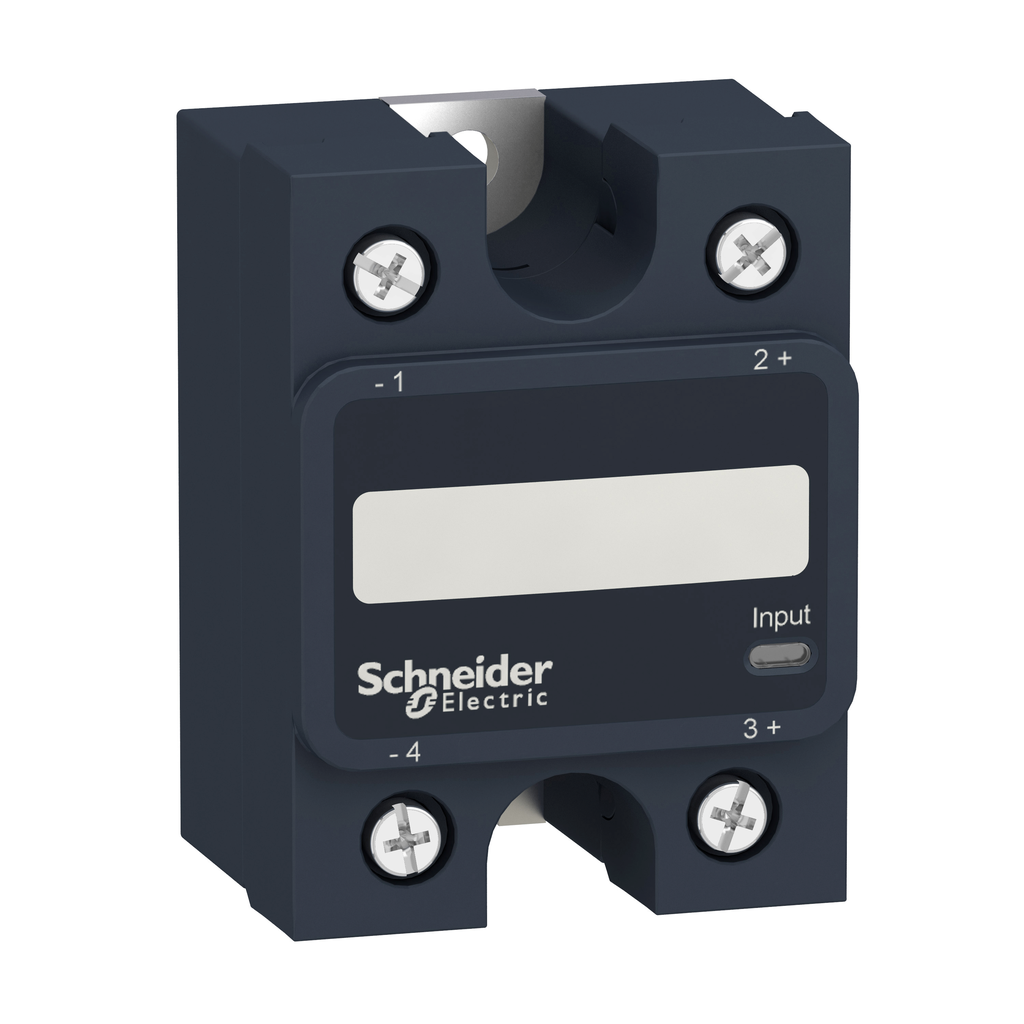

Harmony, Solid state relay, 25 A, panel mount, zero voltage switching, input 3?32 V DC, output 24?300 V AC | Mayer Electric

Mayer Electric Supply . SSP1A125BD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameHarmony, Solid state relay, 25 A, panel mount, zero voltage switching, input 3?32 V DC, output 24?300 V AC | Mayer Electric
UPC785901750673
Weight89.2
WeightUnitg
Weight_AttribNet Weight
jsonUrlData/Product/SQUARE-D-Solid-state-relay-25-A-panel-mounting-input-332-V-DC-output-24300-V-AC-1-NO-785901750673
jsonUrlData2ee084b56-bd9a-4f3d-b7c9-abde00f81f02
moq, multiple, tierMinQty11
MPNSSP1A125BD
qtyInStock0
SKUSQDSSP1A125BD
tierPrice128.27
Range Of ProductHarmony Solid State Relays
Mounting Supportpanel
Output Switching Modezero voltage switching
Product Or Component Typesolid state relay up to 30 A
Phase1 phase
Solid State Output Typezero voltage switching || SCR output
Line Rated Current25 A
Device Short NameSSP1
Safety Reliability DataMTTFd = 1875.9 years || B10d = 1731395
Cos Phi0.5-0.5 (with maximum load)
[Uc] Control Circuit Voltage3...32 V DC
Output Voltage24...300 V AC
Maximum Horse Power Rating0.5 hp 120 V AC || 1 hp 240 V AC
Tightening Torque1.5...1.7 N.m for input || 2...2.2 N.m for output
Insulation Resistance1000 MOhm at 500 V DC
Thermal Resitance0.8 ?C/W junction to case
Maximum I?T For Fusing259 A?.s for 8.33 ms at 60 Hz || 285 A?.s for 10 ms at 50 Hz
Dielectric Strength4 kV AC for input/output || 4 kV AC for input or output to case
Response Time0.5 cycle (turn-on) || 0.5 cycle (turn-off)
Surge Current250 A 16.6 ms
Load Current0.15-25 A
Local SignallingLED, green input
Net Weight89.2 g
[Uimp] Rated Impulse Withstand Voltage6 kV output to case || 6 kV input to output
Minimum Switching Voltage3 V DC turn-on
Maximum Leakage Current1 mA off-state
Ip Degree Of ProtectionIP20
Device Presentationcomplete product
Absolute Maximum Voltage600 V
Dv/Dt500 V/?s off-state at maximum voltage
Maximum Switching Voltage1 V DC turn-off
Capacitance Unbalance10 pF for input/output
Input Current Limits10-10 mA at 12 V DC
Protection Device Typetype 1 - 25 A miniature circuit breaker (MCB) B || type 2 - 20 A miniature circuit breaker (MCB) B
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1505006EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationX
Circularity ProfileENVEOLI1505006EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsCSA || UL || CE || EAC
Ambient Air Temperature For Operation-40-80 ?C
StandardsUL 508 || CSA C22.2 No 14-13 || EN/IEC 62314 || EN/IEC 60950-1
Pollution Degree2
MarkingCSA || CE || EAC || UL
Ambient Air Temperature For Storage-40-125 ?C
Overvoltage CategoryIII

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDSSP1A125BD111 @ $28.27
