S802CS1RP Littelfuse Inc. | Discrete Semiconductor Products | DigiKey

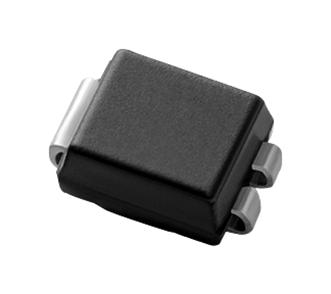

SCR 800 V 1.25 A Sensitive Gate Surface Mount Compak

Littelfuse Inc. . S802CS1RP

Attributes

Brand name, Manufacturer name, Manufacturer, MfrLittelfuse Inc.
Extra Product NameS802CS1RP Littelfuse Inc. | Discrete Semiconductor Products | DigiKey
atoms, moq, multiple, tierMinQty11
extraShipping0
MPNS802CS1RP
packagingCut Tape (CT)
qtyInStock2600
SKU8552359
snippetSCR 800 V 1.25 A Sensitive Gate Surface Mount Compak
tierMinQty210
tierMinQty3100
tierMinQty4500
tierMinQty51,000
tierMinQty62,500
tierPrice11.8744999999999998
tierPrice21.6755499999999999
tierPrice31.3062849999999997
tierPrice41.079068
tierPrice50.8518969999999999
tierPrice60.8036774999999999
CategoryDiscrete Semiconductor Products
SeriesSx02CSx
PackageTape & Reel (TR)
Product StatusActive
Voltage - Off State800 V
Voltage - Gate Trigger (Vgt) (Max)800 mV
Current - Gate Trigger (Igt) (Max)50 ?A
Voltage - On State (Vtm) (Max)1.7 V
Current - On State (It (AV)) (Max)800 mA
Current - On State (It (RMS)) (Max)1.25 A
Current - Hold (Ih) (Max)3 mA
Current - Off State (Max)1 ?A
Current - Non Rep Surge 50, 60Hz (Itsm)16A, 20A
SCR TypeSensitive Gate
Operating Temperature-40?C ~ 110?C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB (3 Leads), Compak
Supplier Device PackageCompak

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key85523591260011 @ $1.87, 10 @ $1.68, 100 @ $1.31, 500 @ $1.08, 1000 @ $0.85, 2500 @ $0.80
Newark34AC6474250025002000 @ $0.78, 4000 @ $0.70, 6000 @ $0.68, 10000 @ $0.66
Newark38AK72901149011 @ $1.71, 10 @ $1.39, 25 @ $1.29, 50 @ $1.20, 100 @ $1.09, 250 @ $1.00
