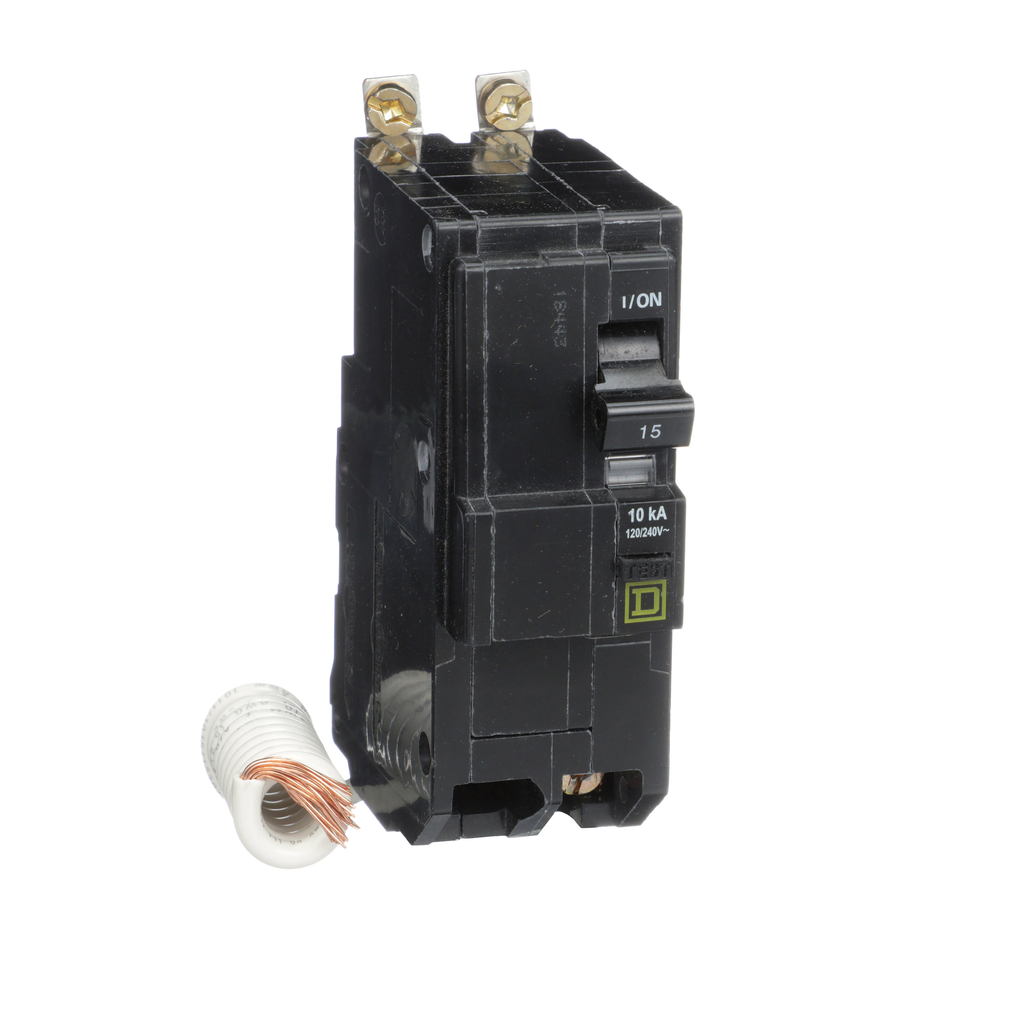

Mini circuit breaker, QO, 15A, 2 pole, 120/240VAC, 10kA, 30mA grd fault B, bolt on mount | Mayer Electric

Shop SQUARE D at Mayer. MINIATURE CIRCUIT BREAKER 120/240V 15A

Mayer Electric Supply . QOB215EPD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 15A, 2 pole, 120/240VAC, 10kA, 30mA grd fault B, bolt on mount | Mayer Electric
UPC785901120766
Weight0.426
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height105.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-15A-2-pole-120-240-VAC-10-kA-30mA-grd-fault-B-bolt-on-mount-785901120766
jsonUrlData2ff199101-ee8a-4781-ad03-abd20062e087
keywordsSQUARE D, Mayer SQUARE D, 785901120766, QOB215EPD
length_AttribDepth
moq, multiple, tierMinQty11
MPNQOB215EPD
qtyInStock0
SKUSQDQOB215EPD
snippetShop SQUARE D at Mayer. MINIATURE CIRCUIT BREAKER 120/240V 15A
tierPrice1687.48
width38.0
width_AttribWidth
Circuit Breaker Applicationnot rated
Mounting Modebolt-on
Circuit Breaker Typeground fault protecting class B 30 mA
Range Of ProductQO
Poles Description2P
Electrical Connectionpressure plate
Line Rated Current15 A
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC || 120 V AC
Warranty18 months
Height105 mm
Breaking Capacity10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Tightening Torque4.6-4.6 N.m 2.5-10 mm? (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm? (AWG 12...AWG 4)
Number Of Spaces Required2
Awg GaugeAWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
Width38 mm
Depth74 mm
Net Weight0.426 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI1406033
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1406033
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQOB215EPD111 @ $687.48
