American Stainless Pumps

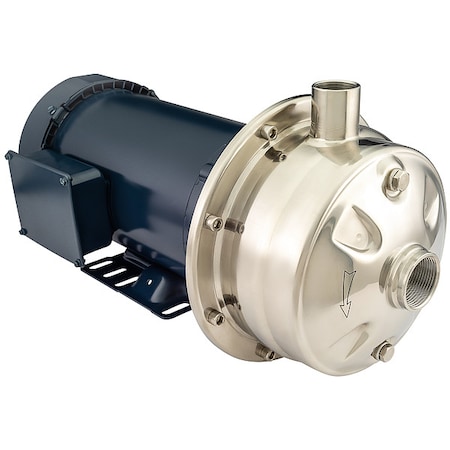

American Stainless Pumps . T1525243T3F

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameAmerican Stainless Pumps
DimensionUnitinch
GraingerSku60PY40
UPC, Cord TypeNone
UnitOfMeasureEA
Weight64.95
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginZZ
height, Specific Gravity (Maximum)15
jsonUrlData924526ffbdad25e5923b
length24.6
moq, multiple, tierMinQty11
MPNT1525243T3F
qtyInStock2
qtyInStockOverrideLimited Stock
SKUG600719736
tierPrice11499.14
urlhttps://www.zoro.com/american-stainless-pumps-centrifugal-pump-208-to-230460vac-ss-t1525243t3f/i/G600719736/
width14.8
Discharge Pump Type, ItemCentrifugal Pump
HP - Pumps, Horsepower3 hp
Phase - Pumps, Phase Broad3
Voltage - Pumps208 to 230/460VAC
Max Pressure - Pumps208 ft of head
Housing Material - Pumps304 Stainless Steel
Inlet Size - Pumps1.25 in NPT
Outlet Size - Pumps1 in NPT
Motor Enclosure - PumpsTotally Enclosed Fan-Cooled
Best Efficiency Range GPM @ Head28 to 43 gpm
Frame, Motor Frame Designation56J
Hz, Frequency60 Hz
Inlet Pressure, NPSHr10 psi
Height10 1/10 in
Width, Diameter9 1/5 in
Max Case Pressure125 psi
GPM of Water @ 140 Ft of Head42 g/min
Wetted Materials, Impeller Material, Pump Housing MaterialStainless Steel
Bearing TypeSealed Ball
Duty, Duty CycleContinuous
Amps8.0-7.4/3.7
Max Specific Gravity1.05
Agency ComplianceCSA, UL
Port RotationTop
Max Liquid Temp, Maximum Media Temperature400 Degrees F
GPM of Water @ 130 Ft of Head44 g/min
Motor Type3 - Phase; Totally Enclosed Fan-Cooled
Motor Ambient Temp Rating40 Degrees C
Manufacturers Warranty Length1 yr
Seal MaterialCarbon, Silicon Carbide, Viton
Overload Protection, Thermal Protection, Thermal Overload ProtectionNo
Max Head, Maximum Feet of Head208 ft
Installation Position, Mounting OrientationHorizontal
GPM of Water @ 120 Ft of Head48 g/min
Motor RPM3,450 RPM
Max Dia Solids3/40 in
Best Efficiency GPM @ PSI40
Impeller TypeEnclosed
Length, Length (Straight Wireway)18 3/10 in
SeriesTSP
Flow Rate @ 15 ft of Head (Maximum), Flow Rate @ 10 ft of Head (Maximum), Flow Rate @ 5 ft of Head (Maximum), Flow Rate @ 80 ft of Head (Maximum), Flow Rate @ 100 ft of Head (Maximum), Flow Rate @ 300 ft of Head (Maximum), Flow Rate @ 260 ft of Head (Maximum), Flow Rate @ 1 ft of Head (Maximum), Flow Rate @ 240 ft of Head (Maximum), Flow Rate @ 220 ft of Head (Maximum), Flow Rate @ 70 ft of Head (Maximum), Flow Rate @ 90 ft of Head (Maximum), Flow Rate @ 20 ft of Head (Maximum), Flow Rate @ 50 ft of Head (Maximum), Flow Rate @ 60 ft of Head (Maximum), Flow Rate @ 40 ft of Head (Maximum)Not Applicable
Overall Width9.2 in
For Use With Potable SystemsYes
Overall Height10.1 in
Electrical Connection TypeHardwired
Compatible Discharge Pipe Size5 1/4 in
Intake Type, Discharge TypeNPT
Motor Ambient Temperature (Maximum)104 Degrees F
Flow Rate @ 120 ft of Head (Maximum)48 gpm
Flow Rate @ 180 ft of Head (Maximum)22 gpm
Motor Enclosure Broad, Motor Enclosure TypeTEFC
Compatible Intake Pipe Size1 1/4 in
Nominal Voltage, Nameplate Voltage208-230/460V AC
Solid Diameter (Maximum)0.08 in
Flow Rate @ 160 ft of Head (Maximum)33 gpm
Pump Housing Material BroadSS
Best Efficiency Flow38 gpm
Flow Rate @ 200 ft of Head (Maximum)7 gpm
Suction Lift (Maximum)24 ft
Maximum RPM3,500 RPM
Best Efficiency Head146 ft
Impeller DesignClosed
Flow Rate @ 140 ft of Head (Maximum)42 gpm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6007197361211 @ $1499.14
Grainger60PY401-211 @ $2408.48
simsupply.comZO-G6007197361311 @ $1940.42
