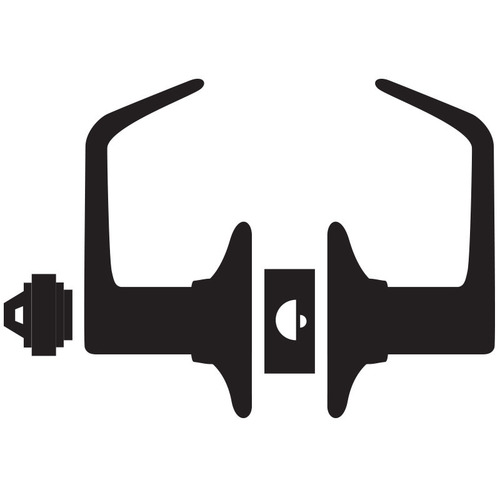

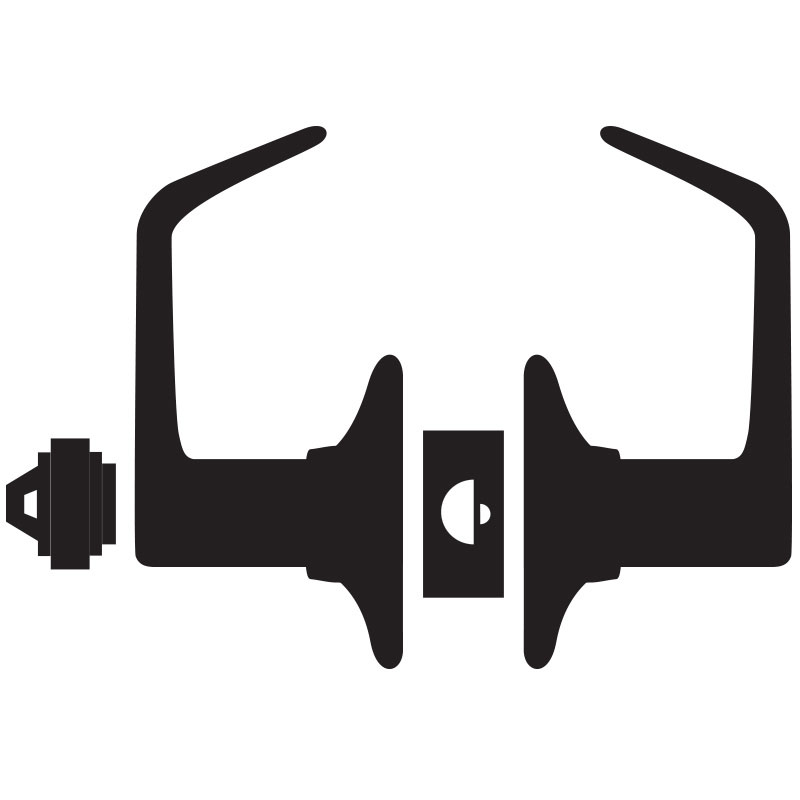

Schlage Commercial S70PD SAT 613 S Series Classroom C Keyway Saturn with 16-203 Latch 10-001 Strike Oil Rubbed Bronze Finish

S SeriesTubular Lock Schlage S Series levers are engineered for long life and optimum durability. Easy to install, service and maintain, an S Series lever can help you keep people and property secure. Specifications: Handing: Not handed, except Flair design Door thickness: 1 3/8" to 2" (35 mm-51 mm) except S40D: 1 3/8" to 1 7/8? (35 mm-48 mm) Backset: Universal backset latches standard, fit either 2 3/8" (60 mm) or 2 3/4" (70 mm) Fronts: Steel. 1" x 2 1/4" (25 mm x 57 mm) square corner, beveled, for 2 3/4" backset standard </ul

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSchlage Commercial
CategoryIdL3Locks and Accessories
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial S70PD SAT 613 S Series Classroom C Keyway Saturn with 16-203 Latch 10-001 Strike Oil Rubbed Bronze Finish
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorDark Oxidized Satin Bronze Oil Rubbed
height2.75
height_AttribStrike Height
length4.25
length_AttribLever Length-Inches
MPN, SKUS70PD SAT 613
qtyInStock-2
qtySourceFieldMap
tierPrice1372.56
width1.125
width_AttribStrike Width
Thickness1-3/4 In.
Color Code613/US10B
KeywaySchlage C
Function70-Classroom
Cylinder TypeP-6 Pin Conventional (Keyed 5)
ANSI FunctionF84 - Classroom
Bolt Protection1/2 In.
Dust BoxPlastic
Latch Backset DimAdjustable 2-3/8 In. and 2-3/4 In.
Latch Number16-203
Latch TypeDead Latch
Lever/Knob DesignSAT - Saturn
Lock Face Size2-1/4 In. x 1 In.
Special MarksConventional cylinder
Strike Height2-3/4 In.
Strike Number10-001
Strike TypeT-Strike
Strike Width1-1/8 In.
Finish, Finish DescriptionOil Rubbed Dark Bronze
Backset2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
StrikeT-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
DesignSaturn
GradeANSI/BHMA Grade 2
Lever StyleSAT-Saturn
Keyblank GroupingSCHL-C-6-1
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
HandingReversible
ADA ApprovedFalse
Keying ChargesCCAM
Sub-SeriesCL_Tubular_Locks_schlage_commercial_27
Lever MaterialPressure Cast Zinc
Lever Style FamilyStraight Return Lever
Latch CornerSquare
Lever Length-Inches4-1/4 Inch
Manufacturer ParentAllegion
Finish FamilyDark Bronze
ADA CompliantNo
FeaturesConcealed Mounting Screws; Independent Heavy Duty Lever Torsion Springs for Durability and Long Life; Interlocking Chassis and Latchbolt Restricts Chassis from Rotating in Door
Function FamilyClassroom
Chassis MaterialZinc
Front Size1" x 2-1/4"
StandardsANSI A156.2 Series 4000 Grade 2; UL/cUL Listed; FF-H-106C
Lever Projection2-1/2 Inch
Strike Size1-1/8" x 2-3/4" x 3/32"
Latch Throw1/2 Inch
Rose Diameter2-9/16 Inch
Door Thickness1-3/8" to 2"
Warranty3 Year Limited

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareS70PD SAT 6131-211 @ $372.56
thebuilderssupply.comSCH_S70PDSAT61311677777811 @ $262.98
