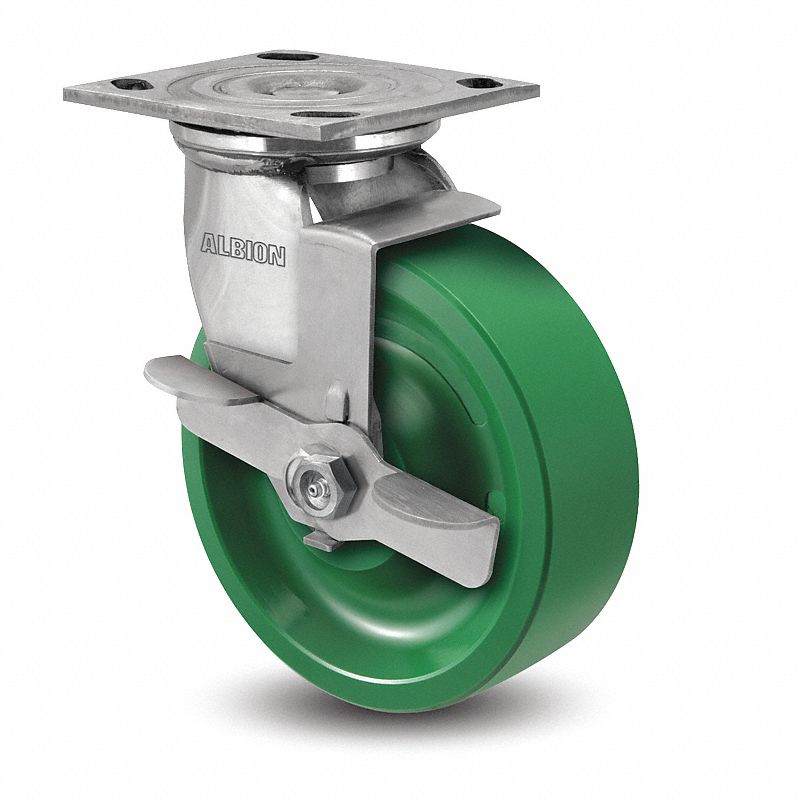

5" X 2" Non-Marking Polyurethane X-Treme Swivel Caster, Face Brake, Loads Up To 1000 lb

Albion . 05XI05201SFBD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAlbion
DimensionUnitinch
Extra Product Name5" X 2" Non-Marking Polyurethane X-Treme Swivel Caster, Face Brake, Loads Up To 1000 lb
UnitOfMeasureEA
Weight2.25
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead, moq, multiple, tierMinQty1, Number of Wheels1
extendedQty-2
height0.67
length, width0.83
MPN05XI05201SFBD
qtyInStock-1
SKUG300712976
tierPrice1297.52
url//www.zoro.com/static/assets/bundle/js/suppliers.5ebb7766.chunk.js
Caster Sub-TypeSwivel
Load Rating1000 lb
Wheel Dia5 in
Wheel Width, Overall Wheel Width2 in
Caster Stem TypeTop Plate
Swivel Lead1 5/8 in
ApplicationFood Processing, Bakery Dough Troughs,Stainless Carts, Pharmaceuticals, Laboratory, Clean Room, Hospital Waste Management, Marine, Dollies
Includes Thread Guards, With Toe PlateNo
Includes Spanner Bushing, NSF Listed, Non-MarkingYes
Number of Mounting Holes4
Inside Bolt Hole Spacing2-5/8 in X 3 in
Mounting Plate Size4 in X 4-1/2 in
Mounting Bolt Dia3/8 in
ItemPlate Caster W/ Brake
Swivel Raceway TypeDouble Ball
Wheel Core Material, Wheel Core TypeSolid
Tread ShapeStandard
Wheel Bearing TypeRoller
Operating Temperature RangeUp to 180?F
Outside Bolt Hole Spacing3 in X 3-5/8 in
Wheel/Tread Hardness70D
Caster Frame Material, Wheel Bearing MaterialStainless Steel
Caster Mounting TypePlate
Frame ConstructionFormed
Wheel/Tread Color, Core ColorGreen
Wheel/Tread MaterialPolyurethane - X-Treme
Wheel/Tread Hardness RatingHard
Wheel TypeSolid Polyurethane
FeaturesStainless-Steel Casters are Designed for Light-Duty Applications Where Frequent Wash-Downs are Necessary
StandardsNSF Listed, RoHS Compliant
Swivel Radius4 1/8 in
Mounting Plate Bolt Hole PatternB
Caster Brake TypeFace Brake
Frame FinishPolished
For Axle Dia1/2 in
Mounting Height6-1/2 in
Swivel ConstructionKingpin
Swivel Lock TypeNo Lock Included
Mounting Plate Thickness1/4 in
Load Rating Range1000 to 2999 lb
Hub Length2 3/16 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3007129761In Stock11 @ $297.52
simsupply.comCU-3630524C37321411 @ $297.36
Grainger60RL72111 @ $232.77
