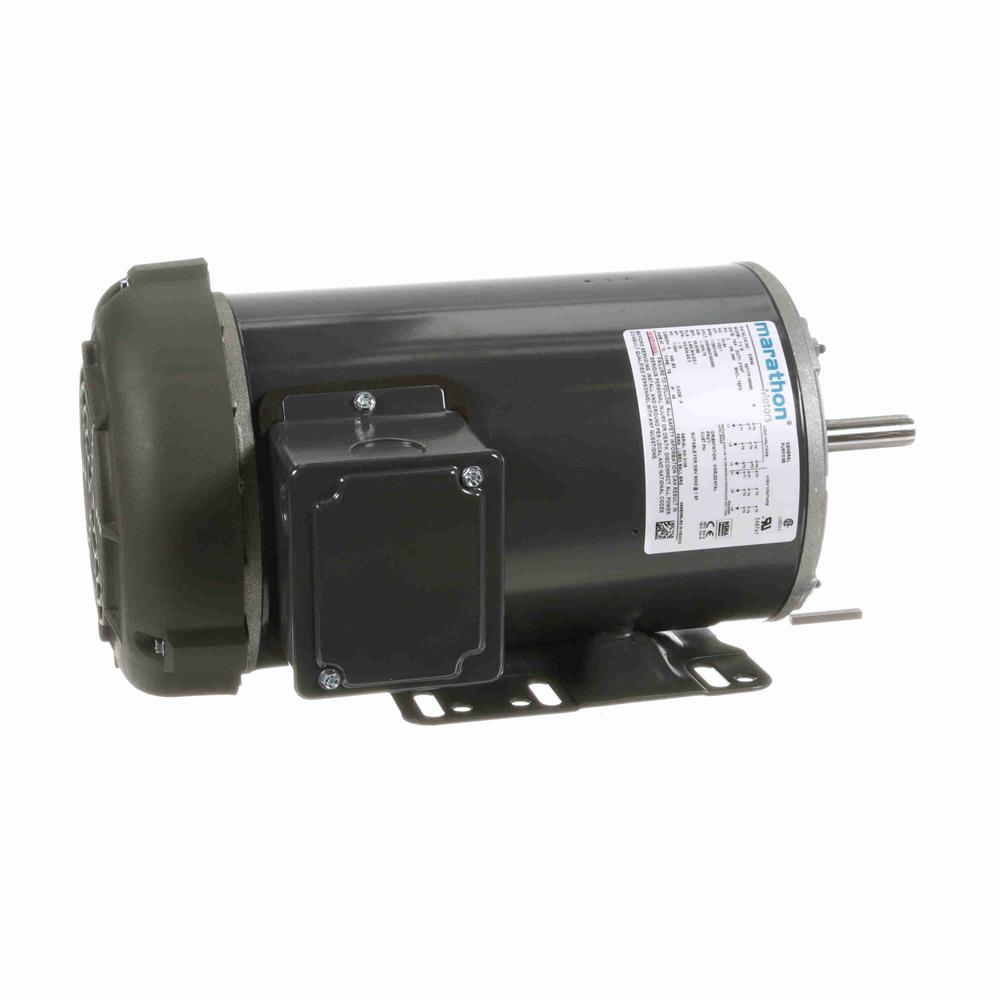

Marathon G365A 6-1/2" Diameter General Purpose Motor - G365A
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Manufacturer Model # | 056T17F15668 |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Marathon G365A 6-1/2" Diameter General Purpose Motor - G365A |
| Voltage, Volts | 230 |
| Weight | 48 |
| WeightUnit | lbs |
| diameter, height, width | 6.5 |
| height_Attrib, width_Attrib | Motor Diameter |
| length | 14.83 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds | 1 |
| MPN, SKU | G365A |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 484.94 |
| Amps | 4.6/2.3 |
| Bearings | Ball |
| Duty Cycle | Continuous |
| Efficiency | 0.865 |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Frame | 56H |
| HP | 1-1/2 |
| Hz | 60 |
| Insulation Class | B |
| Maximum Ambient Temperature | 40? C |
| Motor Diameter | 6-1/2" |
| Motor Shell Length | 8.65" |
| Mounting Orientation | Horizontal |
| Mounting | Base |
| Overall Length | 14.83" |
| Phase | 3 |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 1725 |
| Service Factor | 1.15 |
| Shaft Diameter | 5/8" |
| Shaft Length | 1.88" |
| Ship Weight | 48 lbs. |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G365A | 1 | -2 | 1 | 1 @ $484.94 |
