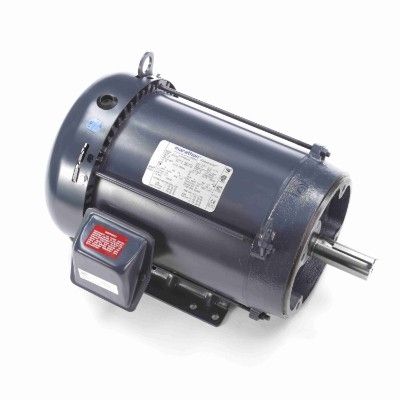

Motor, TEFC, 7-1/2 HP, 1770 RPM, 230/460V

http://www.sustainablesupply.com/cdn/shop/products/44P058_AS01_1024x.jpg

Marathon Motors . 213TTFBD6028

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMarathon Motors
Category, CategoryL1Motors
CategoryL2General Purpose AC Motors
CategoryL3Three Phase Motors
DimensionUnitinch
Extra Product NameMotor, TEFC, 7-1/2 HP, 1770 RPM, 230/460V
UnitOfMeasureEA
Voltage230/460
Weight161
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
extendedLead15
extendedQty-2
height14
length22.5
moq, multiple, tierMinQty1, No of Speeds1
MPN213TTFBD6028
qtyInStock0
SKUG9816125
tierPrice1881.56
urlhttps://www.zoro.com/marathon-motors-motor-tefc-7-12-hp-1770-rpm-230460v-213ttfbd6028/i/G9816125/
width16.81
Motor Shaft DesignKeyed
Motor Mounting TypeRigid Base
StandardsCE, CSA, UL Listed
Motor Shaft RotationCW/CCW
Duty, Duty CycleContinuous
Motor Enclosure DesignTotally Enclosed Fan-Cooled
CC NumberCC003A
Inverter RatedYes
Overall Length19 1/8 in
Shaft Length3 3/8 in
Motor Design3-Phase
Nameplate RPM, RPM @ 50Hz1,770
Motor Efficiency GroupNEMA Premium Efficient
HP, HP @ 50Hz7 1/2
Voltage Compatibility208V AC, 208-220/440, 208-230V AC, 208-230/460V AC, 208-240V AC, 220-230/460, 220/460V AC, 230V AC, 230/460, 240V AC, 460V AC
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Frame213TC
Frame MaterialRolled steel
Hz60/50
Full Load Amps, Full Load Amps @ 50Hz19.0/9.5
Motor ApplicationGeneral Application
Motor Service Factor, Service Factor @ 50Hz1.15
Shaft Dia1 3/8 in
Motor Frame MaterialSteel
Max Ambient Temp40 Degrees C
ItemGeneral Purpose Motor
RPM Group1701-1800
PhaseThree
Ins ClassF
Manufacturers Warranty Length1 yr
Motor BearingsBall
RPM Range1,701-1,800
Length Less Shaft15 3/4 in
Nominal Efficiency91.7 %
Green Certification or Other RecognitionNEMA Premium(R) Rated
Usable @ 200V, Usable @ 208VNo
NEMA DesignB
Voltage @ 50Hz230/460V AC
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9816125111 @ $881.56
Grainger44P05811
Dealers Electric213TTFBD602811111 @ $1022.50
sustainablesupply.comC2791456111 @ $621.43
motorsandcontrol.comGT1216A111 @ $852.94
pumpproducts.com213TTFBD60281-211 @ $1623.77
surpluscenter.com10-273911
Applied Industrial11555956411
Galco213TTFBD6028-MARA111 @ $763.16
