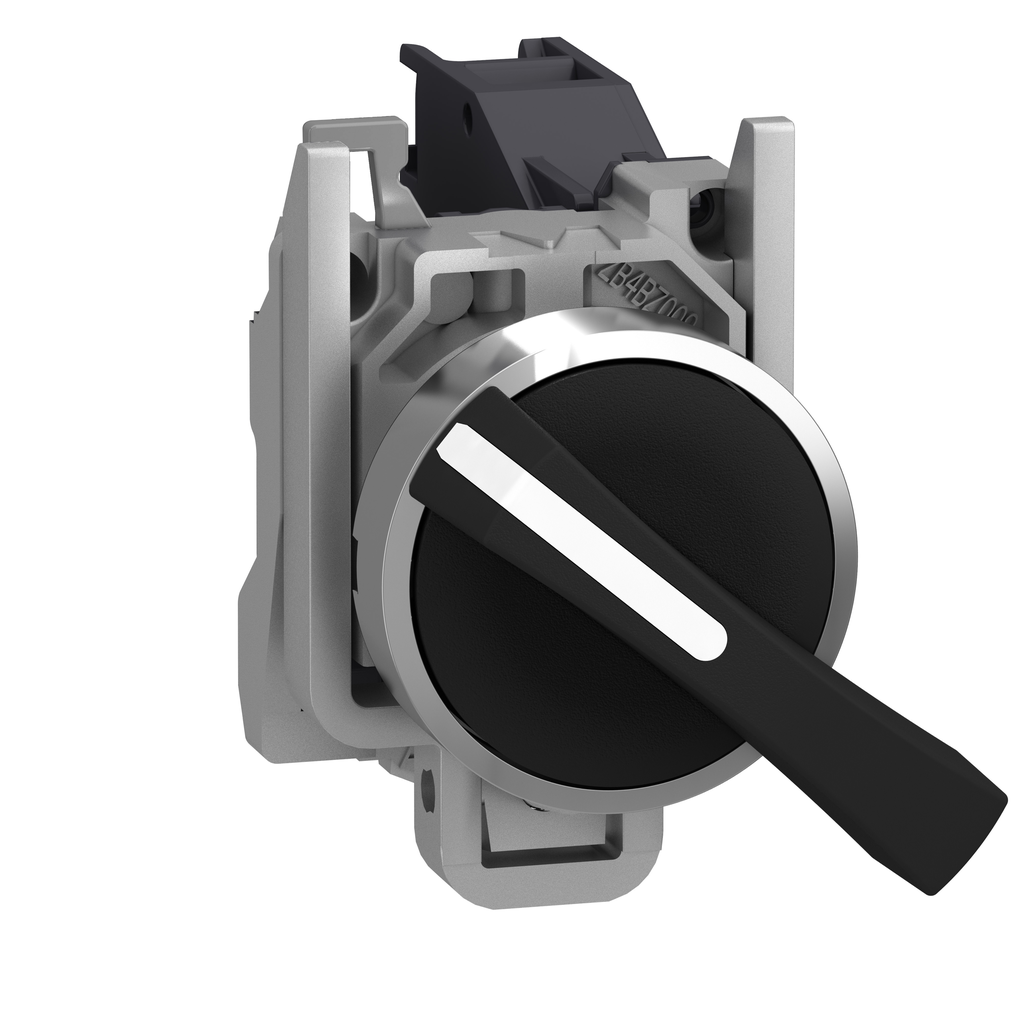

Harmony XB4, Selector switch, metal ,black ?22, long handle, 2 positions, stay put, 1 NO | Mayer Electric

SQUARE D . SQDXB4BJ21

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameHarmony XB4, Selector switch, metal ,black ?22, long handle, 2 positions, stay put, 1 NO | Mayer Electric
UPC3389110887082
Weight0.096
WeightUnitkg
Weight_AttribNet Weight
depth, length68.0
height48.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Harmony-XB4-Selector-switch-metal-black-Ø22-long-handle-2-positions-stay-put-1-NO-3389110887082
length_AttribDepth
moq, multiple, Sale Per Indivisible Quantity1
MPN, SKUSQDXB4BJ21
qtyInStock0
width30.0
width_AttribWidth
Range Of ProductHarmony XB4
Mounting Diameter22 mm
Type Of Operatorstay put
Product Or Component Typeselector switch
Shape Of Signaling Unit Headround
Fixing Collar Materialzamak
Head Typestandard
Contacts Type And Composition1 NO
Bezel Materialchromium plated metal
Contact Operationslow-break
Operator Profileblack long handle
Operator Position Information2 positions 90?
Device Short NameXB4
Warranty18 months
Contacts Usagestandard contacts
Height48 mm
Terminals Description Iso N?1(13-14)NO
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Net Weight0.096 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN 60947-1
Device Presentationcomplete product
Resistance To High Pressure Washer7000000 Pa 55 ?C 0.1 m
[Ui] Rated Insulation Voltage600 V 3)EN 60947-1
Mechanical Durability1000000 cycles
Torque Value0.14 N.m NO changing electrical state
Width30 mm
Depth68 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsGL || UL || CSA || BV || DNV || LROS (Lloyds register of shipping)
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
StandardsEN/IEC 60947-5-5 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP69 || IP69K || IP67 IEC 60529
Overvoltage Categoryclass I IEC 60536
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Protective TreatmentTH
