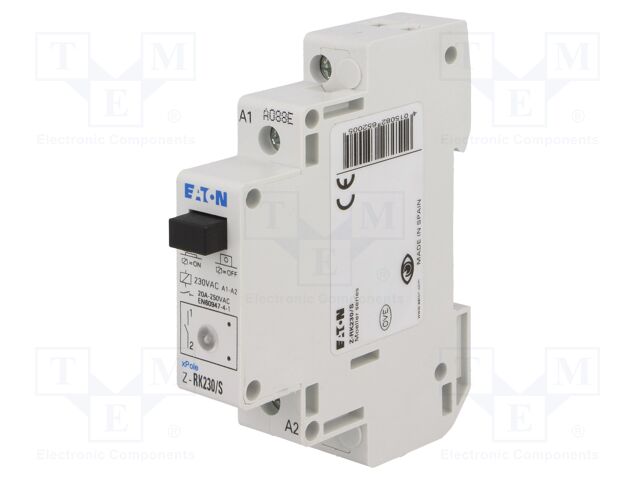

EATON ELECTRIC Z-RK230/S | Relay: installation; monostable; NO; Ucoil: 230VAC; 17.5x90x60mm
EATON ELECTRIC Z-RK230/S | Relay: installation; monostable; NO; Ucoil: 230VAC; 17.5x90x60m
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | EATON ELECTRIC |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Installation Relays |
| Extra Product Name | EATON ELECTRIC Z-RK230/S | Relay: installation; monostable; NO; Ucoil: 230VAC; 17.5x90x60mm |
| atoms, moq, multiple | 1 |
| jsonUrlData | b021ddd49f02dd23cfce4ea3f106ad07. |
| jsonUrlData2 | 9b9f5cdb9a64f0cf6036 |
| keywords | EATON ELECTRIC, Z-RK230/S |
| MPN, SKU | Z-RK230/S |
| qtyInStock | 0 |
| snippet | EATON ELECTRIC Z-RK230/S | Relay: installation; monostable; NO; Ucoil: 230VAC; 17.5x90x60m |
| Type of relay | installation |
| Relay variant | monostable |
| Contacts configuration | NO |
| Rated coil voltage | 230V AC |
| Switched voltage | max. 250V AC |
| Body dimensions | 17.5x90x60mm |
| Mounting | for DIN rail mounting |
| Max operating current | 20A |
| Operating temperature | -20...45?C |
| IP rating | IP20 |
| Leads | screw terminals |
| Relay series | Z-RK |
| Indication | LED |
| Design | test button |
