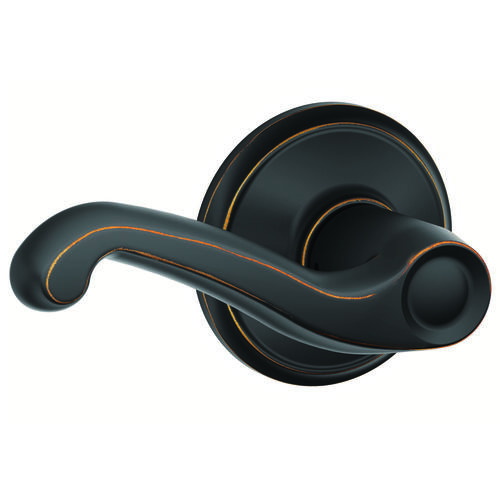

Schlage Residential F10 FLA 716 Flair Series Passage Lever, Zinc, Aged Bronze

F SeriesLever Locks The Schlage F-Series levers offer the benefit of over 90 years of Schlage quality design and workmanship. With a range of levers in a variety of finishes, Schlage has a lockset to complement any architectural style. These value-engineered locksets are built to last. Available Functions: F10/F75 ? Hall & Closet*: Both knobs/levers always unlocked F40/F76 ? Bed & Bath*: Push-button locking Can be opened from outside with small circular tool Turning inside knob/lever releases button F170 ? Non-turning*: Non-turning

Allegion . F10 FLA 716

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Locks and Accessories
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Residential F10 FLA 716 Flair Series Passage Lever, Zinc, Aged Bronze
atoms, moq, multiple, tierMinQty11
color, Color, Finish FamilyAntique Bronze
diameter, length, width2.125
length_Attrib, width_AttribCross Bore Diameter
MPNF10 FLA 716
qtyInStock-2
qtySourceFieldMap
tierPrice153.08
Finish, Finish DescriptionAged Bronze
Function10-Hall/Closet
DesignFlair Lever
StrikeFull Lip 2-1/4 Inch, Radius Corner
Backset2-3/8 Inch or 2-3/4 Inch
Color Code643E/US11/716
GradeANSI/BHMA Grade 2
Lever StyleFLA-Flair
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
Handing, Door HandingReversible
Projection2.5000
Door Thickness, For Door Thickness1-3/8" to 1-3/4"
Bore Size2.1250
Product Length5 Inch
Included ComponentsPassage levers, roses, latch, strike, mounting hardware
Door Cross Bore2.125 Inch
Product Material, MaterialZinc
Box Length7.0000
Box Width6.0000
Box Height3.2500
Strike NameRound Corner Full Lip
Bolt Throw1/2 Inch
Product Projection2-1/2 Inch
StandardsANSI/BHMA A156.39-2015; UL Listed; ADA
Function FamilyPassage/Hall/Closet
Box Dimensions (L x W x H)3.25x6x7"
ADA CompliantYES
Door PreparationCross Bore 2-1/8"; Edge Bore 7/8"
Lever Style FamilyWave Lever
Sub-SeriesF10-FLA
ANSI FunctionF75
Function DescriptionLatch retracted by knobs/levers at all times
Latch TypeSpring
Door Edge Bore1 Inch
Faceplate Dimension1" x 2-1/4"
Strike Number10-027
Backset Size2-3/8 x 2-3/4"
WarrantyLimited Lifetime Mechanical and Finish Warranty
Strike TypeRadius, Full Lip
NomenclatureF10FLA716 PSGE LVR FLR AGE BRZ
Edge Bore Diameter7/8"
ApplicationResidential Single and Multi-Family Doors
Cylinder Type5-Pin
Key TypeNot Keyed
Cross Bore Diameter2-1/8"
Faceplate Size1 x 2-1/4"
Bolt Throw Size1/2"
Strike Size1-5/8 x 2-1/4 Inch

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareF10 FLA 7161-211 @ $53.08
