QSH-060-01-F-D-A-K Samtec Inc. | Connectors, Interconnects | DigiKey

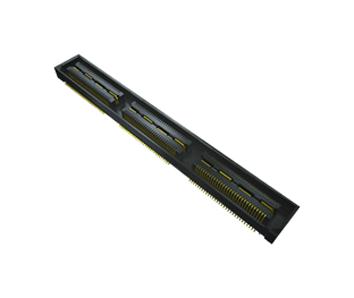

120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Samtec Inc. |
|---|---|
| CategoryL1, Category | Connectors, Interconnects |
| CategoryL2 | Rectangular Connectors |
| CategoryL3 | Arrays, Edge Type, Mezzanine (Board to Board) |
| DimensionUnit | mm |
| Extra Product Name | QSH-060-01-F-D-A-K Samtec Inc. | Connectors, Interconnects | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| height | 5.0 |
| height_Attrib | Mated Stacking Heights |
| MPN, Manufacturer Product Number | QSH-060-01-F-D-A-K |
| packaging, Package | Tray |
| qtyInStock | 121 |
| SKU | 2664431 |
| snippet, Detailed Description | 120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 64 |
| tierMinQty5 | 128 |
| tierMinQty6 | 256 |
| tierMinQty7 | 448 |
| tierMinQty8 | 960 |
| tierPrice1 | 15.47000 |
| tierPrice2 | 13.70800 |
| tierPrice3 | 13.18040 |
| tierPrice4 | 12.65328 |
| tierPrice5 | 11.95031 |
| tierPrice6 | 10.89590 |
| tierPrice7 | 10.19292 |
| tierPrice8 | 9.34936 |
| Digi-Key Part Number | SAM10651-ND |
| Description | CONN RCPT 120POS SMD GOLD |
| Manufacturer Standard Lead Time | 6 Weeks |
| Series | Q Strip? QSH |
| Product Status | Active |
| Connector Type | Receptacle, Center Strip Contacts |
| Number of Positions | 120 |
| Pitch | 0.020" (0.50mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Board Guide, Ground Bus (Plane), Pick and Place |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.00?in (0.076?m) |
| Mated Stacking Heights | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm |
| Height Above Board | 0.128" (3.25mm) |
| Base Product Number | QSH-060 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 2664431 | 1 | 121 | 1 | 1 @ $15.47, 10 @ $13.71, 25 @ $13.18, 64 @ $12.65, 128 @ $11.95, 256 @ $10.90, 448 @ $10.19, 960 @ $9.35 |
 Newark | 96P3258 | 1 | 60 | 1 | 1 @ $6.84, 10 @ $6.21, 100 @ $5.17, 250 @ $4.56, 500 @ $4.44, 1000 @ $4.14 |
 Radwell | QSH-060-01-F-D-A-K | 1 | 1 | 1 @ $16.00 | |
| RS Online | 1798757 | 1 | 1 | ||
| RS Delivers | 179-8757 | 1 | 1 | 1 @ $8.17 | |
| RS Delivers | 179-8987 | 1 | 1 | 1 @ $10.55, 25 @ $9.90, 100 @ $9.33, 250 @ $8.82, 500 @ $8.37 | |
| Samtec | QSH-060-01-F-D-A-K | 1 | 1 | 1 @ $9.73, 10 @ $8.99, 25 @ $8.50, 50 @ $8.19, 100 @ $6.36, 500 @ $5.75, 1000 @ $4.53, 3008 @ $3.31, 8192 @ $3.06, 17664 @ $2.83 | |
| RS Online | 1798987 | 1 | 1 |
