Wahl

Digital Thermometer Remote Rtd -328-1472f | 6NFX7 | Worldwide Delivery | +44 203 287 5224 | [email protected]

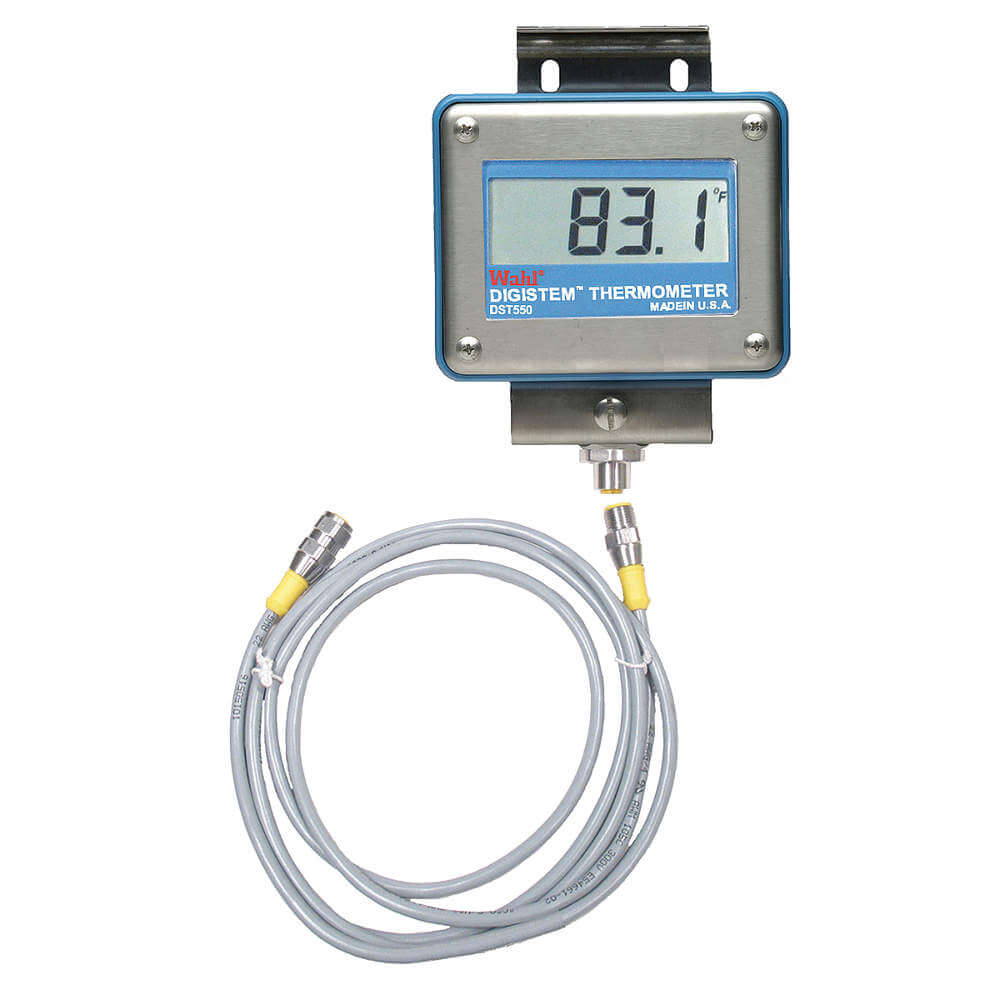

Wahl . D1396-10

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameWahl
DimensionUnitinch
GraingerSku6NFX7
UPC, Electrical ConnectionsNone
UnitOfMeasureEA
Weight7
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead33
extendedQty-2
height5
jsonUrlData924526ffbdad25e5923b
length20
moq, multiple, tierMinQty11
MPND1396-10
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG2309688
tierPrice1972.00
urlhttps://www.zoro.com/wahl-digital-rtd-thermometer-328-degrees-to-1472-degrees-f-d1396-10/i/G2309688/
width10
ItemDigital RTD Thermometer
Temp Range (F)-328 Degrees to 1472 Degrees
Response Time1 Second Standard, Adjustable .25 Second Intervals From .25 to 10 Seconds
Temp Range (C)-200 Degrees to 800 Degrees
Sensor TypeRemote RTD
Temp Accuracy+/- 0.1 Degrees F/C for 1 Year Period At Ambient Temp 23 Degrees C +/- 5 Degrees C
Case MaterialStainless Steel
Probe ConnectorQuick Disconnect
Accuracy+/-0.1 Degrees F/ +/-0.1 Degrees C
Mounting, Mounting StyleWall Mount Remote
Width5.3 in
Standards3-A Sanitary Standard 74-03 Authorization When Used With Wahl Sanitary Process Connection Probes
Height4 3/10 in
Process Connection1/2 in FNPT with 4 m Cable
IncludesProbe and Wall Mount
Enclosure RatingNEMA 4X
Depth2.7 in
Safety RatingIntrinsically Safe
Manufacturers Warranty Length, Manufacturer Warranty Length2 yr
Power SourceBattery
FeaturesMin/Max Temp Switch
Display Digit Size1.0 in
Display4 in LCD 4 Digits
Line Length, Cable Length4 m
Probe TechnologyRTD Probe
Digit Height1 in
Thread Size1/2 in
Scale TypeDigital
Housing Material304 Stainless Steel
Includes NIST-Traceable Certificate, Backlit, NSF Rated, 3-A CertifiedNo
Thermometer TypeWater-Resistant Stem Mount Digital Thermometer
Digital Display1 1/4 in H x 3 3/8 in W Display with 4-Digit LCD - 1 in Digit Height
Maximum Temperature C, Maximum Temperature ?C800 Degrees C
Resolution0.1 Degrees F/0.1 Degrees C
Mounting Hole Diameter0.25 in
Temperature Resolution F0.1 Degrees F
Power Source Details3.6V Lithium Thionyl Chloride "C" Battery
Temperature Range-328 Degrees to 1472 Degrees F/-200 Degrees to 800 Degrees C
Sensor TechnologyRTD
Display TypeLCD
Lens MaterialPolycarbonate
Display Size1 1/4 in H x 3 3/8 in W
Includes Batteries, WaterproofYes
Display Height1.25 in
Construction304 Stainless Steel Housing with Polycarbonate Lens
Maximum Temperature F, Maximum Temperature ?F1,472 Degrees F
Minimum Temperature C, Minimum Temperature ?C-200 Degrees C
Minimum Temperature F, Minimum Temperature ?F-328 Degrees F
Thread TypeNPT
Display Width3.375 in
Temperature ScaleFahrenheit/Celsius
Temperature Resolution C0.1 Degrees C
Number of Digits4
Thread GenderFemale
Battery Type(1) Lithium Thionyl Chloride C
Temp Range-328 Degrees to 1472 Degrees F(-200 Degrees to 800 Degrees C)
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2309688111 @ $972.00
Grainger6NFX711
Raptor SuppliesAE9XYD111 @ $1438.59
