Boneham

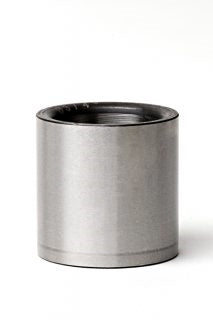

Drill Bushing - Headless Press Fit P406JY25/64" Drill Size with Steel Finish.RC 62-64 to RC 62-64 with 25/64" 0.3860"P-TYPE Technical Specs*Please contact [email protected] for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*Full Description

Boneham . P406JY

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameBoneham
DimensionUnitinch
GraingerSku11J702
UPCNone
UnitOfMeasureEA
Weight0.01
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginGB
extendedLead20
extendedQty-2
height0.38
jsonUrlData924526ffbdad25e5923b
length, width0.63
moq, multiple2
MPNP406JY
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3068950
tierMinQty11
tierPrice14.88
urlhttps://www.zoro.com/boneham-drill-bushing-type-p-drill-size-2564-in-p406jy/i/G3068950/
Finish, Head Material, Material - MachiningHigh Speed Steel
Concentricity Tolerance.0003" T.I.R. Max
Overall Length3/8 in
Inside Dia Tolerance+0.0001 in /+0.0005 in
Rockwell HardnessRC 62-64
Material52100 Thru Hardened
HardnessRc 62-64
Drill Size, Inside Dia25/64 in
Measurement SystemFractional Inch
Outside Dia5/8 in
Outside Dia Tolerance+0.0014 in /+0.0017 in
Bushing Head TypeHeadless
Bushing TypeHeadless Press Fit
Size- Decimal25/64" (0.3906)
Decimal Equivalent0.3906
Drill Bushing Wall TypeStandard Wall
ItemPress-Fit Drill Bushing (P)
Heat TreatmentThrough Hardened
Head TypeNo
Bushing CodeP
Size - Decimal33/64 in - 0.5156
Country of Origin (subject to change)United Kingdom

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3068950221 @ $4.88
National Supply Network071250241-211 @ $10.42
freertool.comBH-P406JY111 @ $6.47
National Supply Network71250241-211 @ $11.72
