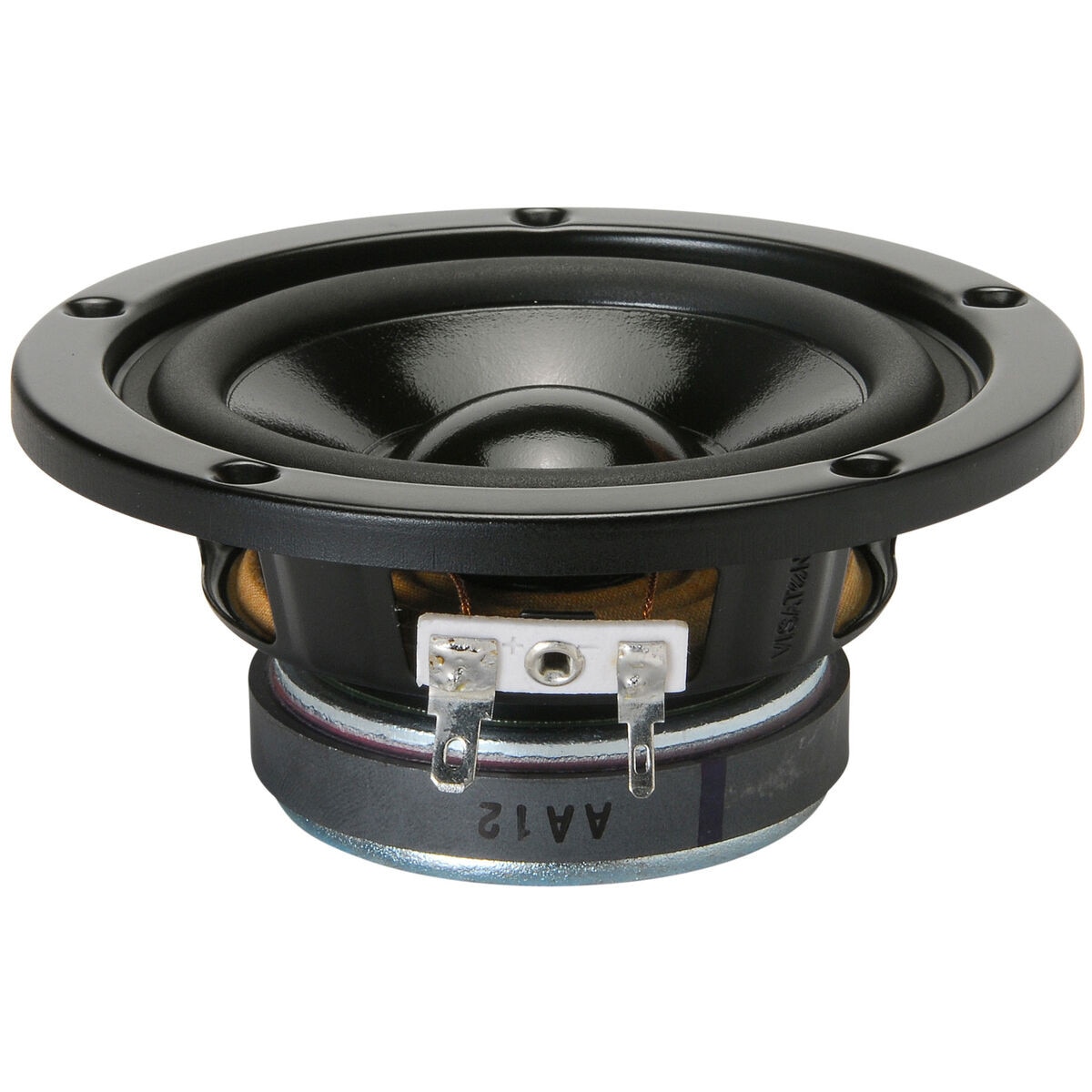

Visaton W100S-8 4" Woofer with Treated Paper Cone 8 Ohm

Visaton W100S-8 4" Woofer with Treated Paper Cone 8 Ohm. Part Number: 292-560 by Visaton.

Visaton . W100S - 8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandVisaton
DimensionUnitinch
Extra Product NameVisaton W100S-8 4" Woofer with Treated Paper Cone 8 Ohm
Weight1.171
WeightUnitlbs
depth, length1.89
diameter, height, width4.8
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelW100S - 8
qtyInStockOnly 2 In Stock
SKU, Part Number292-560
snippetVisaton W100S-8 4" Woofer with Treated Paper Cone 8 Ohm. Part Number: 292-560 by Visaton.
tierMinQty210
tierMinQty325
tierPrice133.23
tierPrice232.24
tierPrice330.86
Unit of MeasureEach
Nominal Diameter4"
Power Handling (RMS)30 Watts
Power Handling (MAX)50 Watts
Impedance8?
Frequency Response63 to 15,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter0.79"
Resonant Frequency (Fs)63Hz
DC Resistance (Re)6.7?
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)2.74
Electromagnetic Q (Qes)0.67
Total Q (Qts)0.54
Compliance Equivalent Volume (Vas)0.19ft?
Maximum Linear Excursion (Xmax)2mm
Cone MaterialTreated Paper
Surround MaterialRubber
Overall Outside Diameter4.8"
Baffle Cutout Diameter3.7"
Depth1.89"
Sealed Volume0.1ft?
Sealed F395.8Hz
Vented Volume0.2ft?
Vented F359.4Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com292-5601Only 2 In Stock11 @ $33.23, 10 @ $32.24, 25 @ $30.86
