V-15G3-1C26-K Omron Electronics Inc-EMC Div | Switches | DigiKey

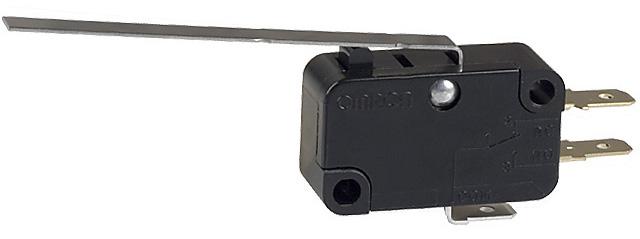

The Omron V-15G3-1C26-K is a miniature basic switch with a hinge lever and spdt 15A 250V rating. It belongs to the V-15G series and is manufactured by Omron. This switch is a snap action type with an unsealed design.

Omron Electronic Components V-15G3-1C26-K

Omron Electronics Inc-EMC Div . V-15G3-1C26-K

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, MfrOmron Electronics Inc-EMC Div
Extra Product NameV-15G3-1C26-K Omron Electronics Inc-EMC Div | Switches | DigiKey
atoms, minimum, moq, multiple1
MPNV-15G3-1C26-K
qtyInStock1325
SKUSW134-ND
Part Status, Features-
CircuitSPDT
Switch FunctionOn-Mom
Current Rating (Amps)15A (AC), 100mA (DC)
Actuator TypeLever, Straight
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.187" (4.7mm)
Ingress ProtectionIP40
Operating Force130gf
Release Force12gf
Pretravel0.354" (9.0mm)
Differential Travel0.110" (2.8mm)
Overtravel0.079" (2.0mm)
Operating Temperature-25?C ~ 80?C
Operating Position0.600" (15.2mm)
Electrical Life100,000 Cycles
Mechanical Life50,000,000 Cycles
Voltage Rating - AC250 V
Voltage Rating - DC125 V

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-KeySW134-ND113251
Allied ElectronicsE536107915011 @ $3.91
Onlinecomponents.comV-15G3-1C26-K1123011 @ $2.48, 25 @ $2.36, 60 @ $2.24, 100 @ $2.13, 500 @ $2.02, 1000 @ $1.52
RadwellV15G31C26K111 @ $5.00
Newark35K32311004900100100 @ $3.70, 250 @ $3.55
1SourceV-15G3-1C26-K11
4 Star ElectronicsV15G31C26K11
Newark37M0291111 @ $4.47, 10 @ $4.04, 25 @ $3.63, 50 @ $3.50, 100 @ $3.08, 250 @ $2.82
Allied Electronics7017576411
RS Delivers807-41811611 @ $3.25, 10 @ $2.93, 50 @ $2.44, 100 @ $2.27, 250 @ $2.09
RS Delivers250903965311
ZoroG005919465111 @ $90.45
Digi-Key3109411
us.rs-online.com70175764124111 @ $5.08, 10 @ $4.81, 20 @ $4.78, 50 @ $4.66, 100 @ $4.58, 200 @ $4.46
RS Online807418111
