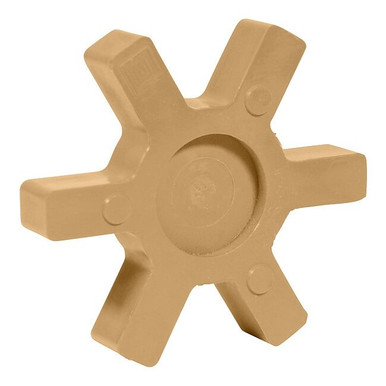

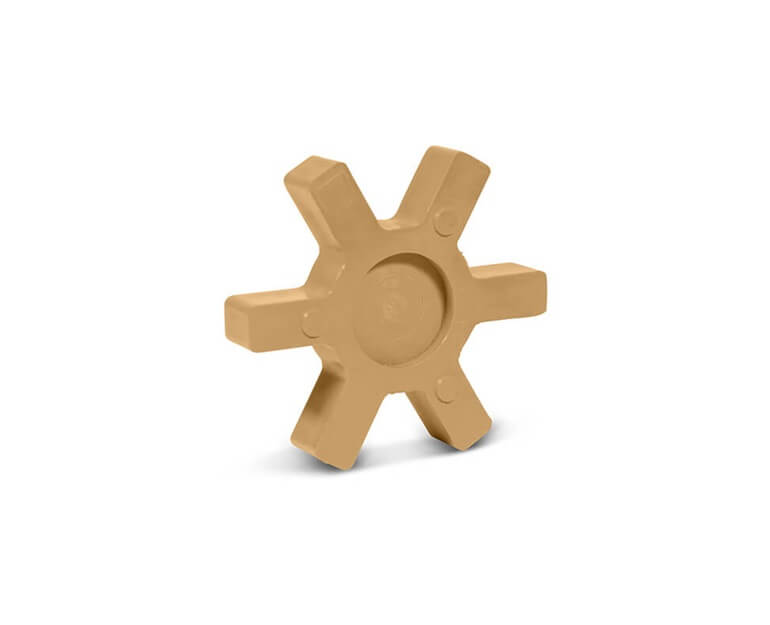

L075H HYTREL SPIDER
L075H HYTREL SPIDER
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | TB Woods |
|---|---|
| CategoryL1 | Shaft Couplings and Collars |
| CategoryL2 | Jaw Couplings |
| CategoryL3 | Components |
| CategoryL4 | Spider Elements |
| Extra Product Name, snippet | L075H HYTREL SPIDER |
| moq, multiple | 4 |
| MPN | L075H |
| qtyInStock | 0 |
| SKU | 340634 |
| tierMinQty1, Element thickness | 1 |
| tierPrice1 | 19.07 |
| Product family | L-Jaw Spider |
| Size code | 75 |
| Element type | Open Center Spider |
| Dimension (in ) (OD) | 1.735 |
| Thickness, Thickness (in) | 0.435 |
| Max compatible bore size | 0.875 |
| Horsepower Rating at 100 RPM | 43 |
| Max speed | 11000 |
| Overall length | 2.13 |
| Min compatible bore size | 0.25 |
| Chemical resistance, Oil resistance | Excellent |
| Center hole | 0.73 |
| Temperature rating | -60?F to 250?F |
| Material type | Hytrel, White |
| Element durometer | 55D |
| Torsional stiffness | Hard |
| Power rating at 100 RPM | 0.36 HP |
| Jaw type | Straight |
| Max parallel misalignment | 0.015 |
| O D | 1.74 |
| Element material | Hytrel |
| Max angular misalignment | 1/4? |
| Coupling size | L075 |
| Torque | 26 Nm |
| Flexibility | Fair |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| MRO Supply | 340634 | 4 | 4 | 1 @ $19.07 | |
 Grainger | 1A924 | 1 | 275 | 1 | 1 @ $17.64 |
| AA8TYJ | 1 | 1 | 1 @ $35.76 | ||
| Applied Industrial | 100812704 | 1 | 1 | ||
| 9471 | 1 | -2 | 1 | ||
| sustainablesupply.com | C1659947 | 1 | -2 | 1 | 1 @ $22.59 |
 simsupply.com | ZO-G0284742 | 1 | 42 | 1 | 1 @ $28.02 |
 Zoro | G0284742 | 1 | 465 | 1 | 1 @ $19.09 |
