Where can I buy 284TTDBD6007?

284TTDBD6007 is available from Zoro, Grainger, Dealers Electric, sustainablesupply.com, motorsandcontrol.com. See pricing comparison above.

What is the price of 284TTDBD6007?

Pricing ranges from $2635.64 to $4612.82 depending on quantity and distributor.

Is 284TTDBD6007 in stock?

Yes, 284TTDBD6007 is currently in stock at multiple distributors with immediate availability.

Marathon Motors

Name: Marathon Motors
Brand: Marathon Motors
Price: 2859.00 USD
Availability: OutOfStock

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name	Marathon Motors
DimensionUnit	inch
GraingerSku	26ZY18
UPC, Motor Thermal Protection	None
UnitOfMeasure	EA
Voltage	230/460V AC
Weight	518
WeightUnit	lbs
cali_prop65_orglabel, cali_prop65_whtlabel	False
countryOfOrigin	MX
extendedLead	26
extendedQty	-2
height	18
jsonUrlData	924526ffbdad25e5923b
length	31.25
moq, multiple, tierMinQty1, No of Speeds	1
MPN	284TTDBD6007
perItemShipping	250.00
qtyInStock	0
qtyInStockOverride	Drop Ship
SKU	G9922631
tierPrice1	2859.0
url	https://www.zoro.com/marathon-motors-close-coupled-pump-motor-3-phase-30-hp-284ttdbd6007/i/G9922631/
width	22.25

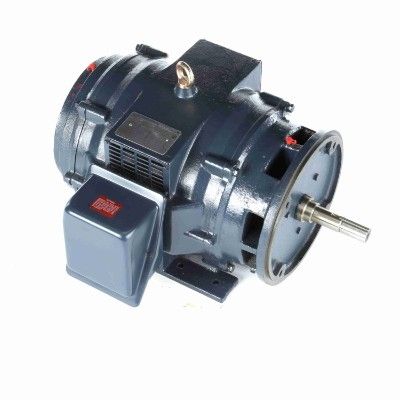

Item	Close-Coupled Pump Motor
Motor Design	3-Phase
HP	30
RPM Range	3,001-3,600
Nameplate RPM	3,560
Frame	284JM
Motor Mounting Type	Face/Base
Motor Service Factor	1.15
Shaft Dia	1 1/4 in
Full Load Amps	71.5/35.5
Standards	CE Mark, CSA Certified, UL Recognized
Inverter Rated	Yes
Phase	Three
Nominal Efficiency	91.7 %
CC Number	CC003A
Motor Shaft Rotation	CW/CCW
Max Ambient Temp	40 Degrees C
Duty, Duty Cycle	Continuous
Motor Frame Material, Frame Material	Cast Iron
Motor Enclosure Design	Open Dripproof
Shaft Length	5 1/4 in
Motor Efficiency Group	NEMA Premium Efficient
Motor Sub Application	Close-Coupled Pump
Overall Length	26 9/16 in
Motor Shaft Design	JM Threaded
Motor Bearings	Ball
Motor Application	Pump
Voltage Compatibility	200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Length Less Shaft	21 5/16 in
Hz	60
Ins Class	F
Green Certification or Other Recognition	NEMA Premium(R) Rated
Inverter Rating	10:1 Variable Torque, 2:1 Constant Torque
Conduit Box Location	Exterior
Usable @ 208V, Usable @ 200V	No
Height	15 in
NEMA Design	B
Bolt Circle Dia	11 in
Motor Mounting Position	Horizontal
Conduit Box Position	F1, F2
Country of Origin (subject to change)	Mexico

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Zoro	G9922631	1		1	1 @ $2859.00
Grainger	26ZY18	1		1
Dealers Electric	284TTDBD6007	1	Backordered	1	1 @ $3054.25
sustainablesupply.com	C2903331	1	Add to Cart	1	1 @ $4320.24
motorsandcontrol.com	GT0469	1		1	1 @ $0.00
pumpproducts.com	284TTDBD6007	1	-2	1	1 @ $4612.82
Galco	284TTDBD6007-MARA	1		1	1 @ $2635.64
