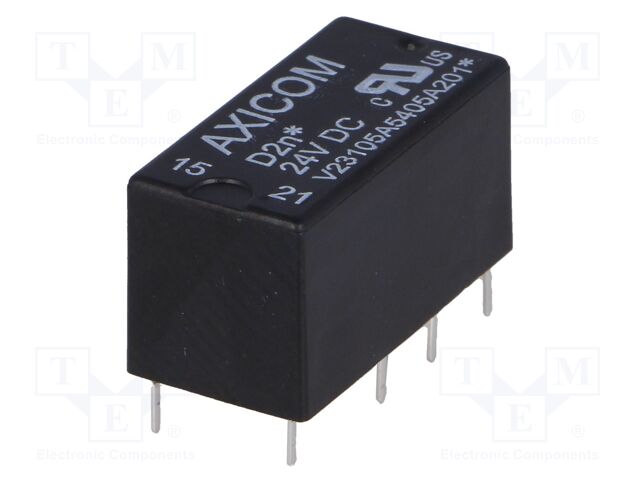

TE Connectivity 0-1393793-9 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 3A; 0.5A/125VAC; PCB

TE Connectivity 0-1393793-9 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 3A; 0.5A/125VAC; PC

TE Connectivity . 0-1393793-9

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTE Connectivity
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameTE Connectivity 0-1393793-9 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 3A; 0.5A/125VAC; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlDatabdfbfadfd92d0ae8f2050682afa9c9a3.
jsonUrlData2e0707da35063decbeaa5
keywordsTE Connectivity, 0-1393793-9, D2N24-1440, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN0-1393793-9
qtyInStock0
SKUD2N24-1440
snippetTE Connectivity 0-1393793-9 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 3A; 0.5A/125VAC; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice13.53
tierPrice23.22
tierPrice32.57
tierPrice42.4
tierPrice52.17
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage24V DC
Contact current max3A
AC contacts rating @R0.5A / 125V AC
DC contacts rating @R1A / 30V DC
Switched voltagemax. 220V DC,
Relay variantminiature
MountingPCB
Coil resistance1.44k?
Coil voltage min16.8V DC
Coil voltage max38.3V DC
Operate time, Release time10ms
Body dimensions20.3x10.1x11.43mm
Coil power consumption400mW
Mechanical durability150000000 cycles
Operating temperature-25...70?C
Relay seriesD2N
Contact resistance100m?
Switching capacity60W,
Terminal pitch5mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMED2N24-1440111 @ $3.53, 5 @ $3.22, 25 @ $2.57, 100 @ $2.40, 500 @ $2.17
