Grainger.com

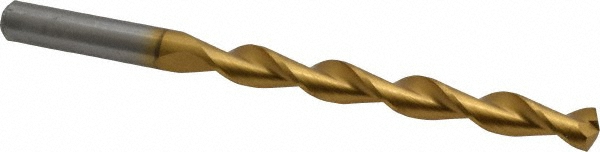

Holemaking - C/L 135 DEG. PAR.JOB.TIN,Letter R, 135 Degree Point Angle, TiN Coated, High Speed Steel Jobber Drill
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 434L21 | 1 | 1 | ||
 Zoro | G2827577 | 1 | 1 | 1 | 1 @ $15.00 |
| 53885 | 1 | 1 | 1 @ $12.07 | ||
 bscsource.com | 53885 | 1 | 1 | 1 @ $32.69 | |
 Guardian | 80904188 | 1 | -2 | 1 | 1 @ $48.79 |
| 53885 | 9 | -2 | 6 | 1 @ $12.07 | |
| 53885 | 1 | -2 | 1 | 1 @ $14.43 | |
| 80904188 | 1 | -2 | 1 | 1 @ $24.78 | |
 MRO Supply | 6131208 | 1 | 1 | 1 @ $12.32 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Chicago Latrobe 150DHT Series High-Speed Steel Jobber Length Drill Bit, TiN Coated, Round Shank, Parabolic Flute, 135 Degree Split Point, Letter Size R, 6-Pack
Brand: Chicago Latrobe
Details
- Parabolic flute configuration with proprietary Convoflute flute design offers wider flute space, dispersing chips away from the cutting edges more rapidly and increasing coolant flow volume
- Manufactured from premium high-speed steel
- 135 degree self-centering split point reduces thrust with easier penetration
- Engineered for deep-hole drilling up to 8 to 12 x diameter depth, depending on drill diameter
- Titanium nitride (TiN) coating adds lubricity and hardness, enhancing chip flow, finished hole quality, and drill life
- Made in the USA
Chicago Latrobe 150DHT Series High-Speed Steel Jobber Length Drill Bit, TiN Coated, Round Shank, Parabolic Flute, 135 Degree Split Point, Letter Size R (Pack of 1)
Brand: Chicago Latrobe
Details
- Parabolic flute configuration with proprietary Convoflute flute design offers wider flute space, dispersing chips away from the cutting edges more rapidly and increasing coolant flow volume^Manufactured from premium high-speed steel^135 degree self-centering split point reduces thrust with easier penetration^Engineered for deep-hole drilling up to 8 to 12 x diameter depth, depending on drill diameter^Titanium nitride (TiN) coating adds lubricity and hardness, enhancing chip flow, finished hole quality, and drill life
R 4.750
Brand: Chicago Latrobe
'Drill Bit, Letter, Drill Bit Size R, Decimal Equivalent 0.3390, Drill Bit Point Angle 135 Degrees , Drill Bit Material High Speed Steel, Drill Bit Finish TiN, Shank Type Straight, Flute Type Parabolic, Coolant Fed Non-Coolant Through, Cutting Direction Right Hand, Overall Length 4.750 In., Grade General Purpose, Shank Dia. 0.339 In., Flute Length 3.437 In., Point Type Split, List Number 150DH-TN, Standards ANSI'
Details
- Price For: Each List Number : 150DH-TN Point Type : K-Notch Split Drill Bit Grouping : Drill Bit Drill Bit Finish : TiN Drill Bit Material : High Speed Steel Application : Low Carbon Steel, Soft Alloy Steel, Aluminum, Non-Ferrous Materials, Deep-hole Drilling Shank Type : Straight Grade : General Purpose Cutting Direction : Right Hand Flute Length : 3-7/16" Drill Bit Point Angle : 135 Degrees
- Material : High Speed Steel Coolant Through : No Standards : ANSI Overall Length : 4-3/4" Shank Dia. : 0.3390" Drill Bit Dimension Type : Letter Drill Bit Size : R Number of Flutes : 2 Flute Type : Spiral Decimal Equivalent : 0.3390 Item : Jobber Length Drill Bit Depth x Dia. Ratio : 8xD Measurement System : Letter Point Angle : 135 Shank Size : 0.316 Diameter : 0.316 Left/Right Hand : Right
- Drill Style : Jobber Drill Shank Length : 1-5/16" Depth:Dia. Ratio : 8xD Coolant Fed : Non-Coolant Through Helix Angle : 40 Degrees Primary Material Application : Steel Spiral Direction : Right Hand Finish - Machining : TiN Drill Point Length : 0.0000 Series : 150DH-TN Drill Bit Point Type : Split Point Material Grade - Machining : General Purpose Drill Diameter Tolerance : +0.0000"/-0.0010"
- Primary Material Application ISO Code : P Material - Machining : High Speed Steel Maximum Drilling Depth : 2.712" Drill Length Class : Jobber Length Shank Type - Machining : Straight Country of Origin (subject to change) : United States
Listing
| Product group | BISS Basic |
|---|---|
| Product type | MECHANICAL_COMPONENTS |
| Part number | 53885 |
| Items per pack | 1 |
| Label | CHICAGO-LATROBE |
| Manufacturer | CHICAGO-LATROBE |
Catalog
| Feature | Chicago Latrobe R Dia. 4-3/4" OAL TiN Coated |
|---|---|
| Category | Tools & Home Improvement |
| MPN | 53885 |
| Product group | BISS |
| Product type | MECHANICAL_COMPONENTS |
| Manufacturer | Chicago Latrobe |
Chicago-Latrobe 53885 150DHT Deep Hole Jobber Length Drill Bit, R Drill - Letter, 0.339 in Drill - Decimal Inch, 135 deg Point, HSS, TiN Coated (6 Each)
Brand: Chicago Latrobe
Chicago-Latrobe Jobber Length Drill Bit, Deep Hole, Series: 150DHT, Imperial, R Drill - Letter, 0.339 in Drill - Decimal Inch, 4-3/4 in Overall Length, 3-7/16 in Cutting Depth, 2 Flutes, Parabolic/Right Spiral Flute, 3-7/16 in Flute Length, 0.339 in Dia x 1.3125 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiN Coated, Applicable Materials: Low Carbon Steel and Soft Alloy Steel
