Dixon F10 Center Punch Band Clamp Pre-formed F-Series | MROSupply.com

F10 Model Code: AI - Price is for 1 Box, 50EA/BOX (part# F10) This item features: -Locking Type: Crimp-End Band. Model Code Model Description AAClamp I.D.:1 1/2 in, Width:5/8 in, Thickness:0.0220 in, Material:Stainless Steel, Type:Band & Buckle, Quantity:100 per box ABClamp I.D.:1 1/2 in, Width:5/8 in, Thickness:0.0310 in, Material:Galvanized Steel, Type:Band & Buckle, Quantity:100 per box ACClamp I.D.:1 1/4 in, Width:5/8 in, Thickness:0.0250 in, Material:Galvanized Steel, Type:Band & Buckle, Quantity:100 per box ADClamp I.D.:1 3/8 in, Width:3/8 in, Thickness:0.0200 in, Material:Stainless Steel, Type:Band & Buckle, Quantity:100 per box AEClamp I.D.:1 3/8 in, Width:3/8 in, Thickness:0.0250 in, Material:Galvanized Steel, Type:Band & Buckle, Quantity:100 per box AFClamp I.D.:1 in, Width:5/8 in, Thickness:0.0220 in, Material:Stainless Steel, Type:Band & Buckle, Quantity:100 per box AGClamp I.D.:1 in, Width:5/8 in, Thickness:0.0250 in, Material:Galvanized Steel, Type:Band & Buckle, Quantity:100 per box AHClamp I.D.:13/16 in, Width:3/8 in, Thickness:0.0250 in, Material:Galvanized Steel, Type:Band & Buckle, Quantity:100 per box AIClamp I.D.:2 1/2 in, Width:5/8 in, Thickness:0.0310 in, Material:Galvanized Steel, Type:Band & Buckle AJClamp I.D.:2 in, Width:5/8 in, Thickness:0.0220 in, Material:Stainless Steel, Type:Band & Buckle, Quantity:100 per box AKClamp I.D.:2 in, Width:5/8 in, Thickness:0.0310 in, Material:Galvanized Steel ALClamp I.D.:3 1/2 in, Width:5/8 in, Thickness:0.0310 in, Material:Galvanized Steel, Type:Band & Buckle AMClamp I.D.:3 in, Width:5/8 in, Thickness:0.0310 in, Material:Galvanized Steel, Type:Band & Buckle ANClamp I.D.:4 in, Width:5/8 in, Thickness:0.0220 in, Material:Stainless Steel, Type:Band & Buckle, Quantity:25 per box AOClamp I.D.:4 in, Width:5/8 in, Thickness:0.0310 in, Material:Galvanized Steel, Type:Band & Buckle AP Clamp I.D.:5 in, Width:5/8 in, Thickness:0.0310 in, Material:Galvanized Steel, Type:Band & Buckle <T

GALV P-F CLAMPS FAST-LOK

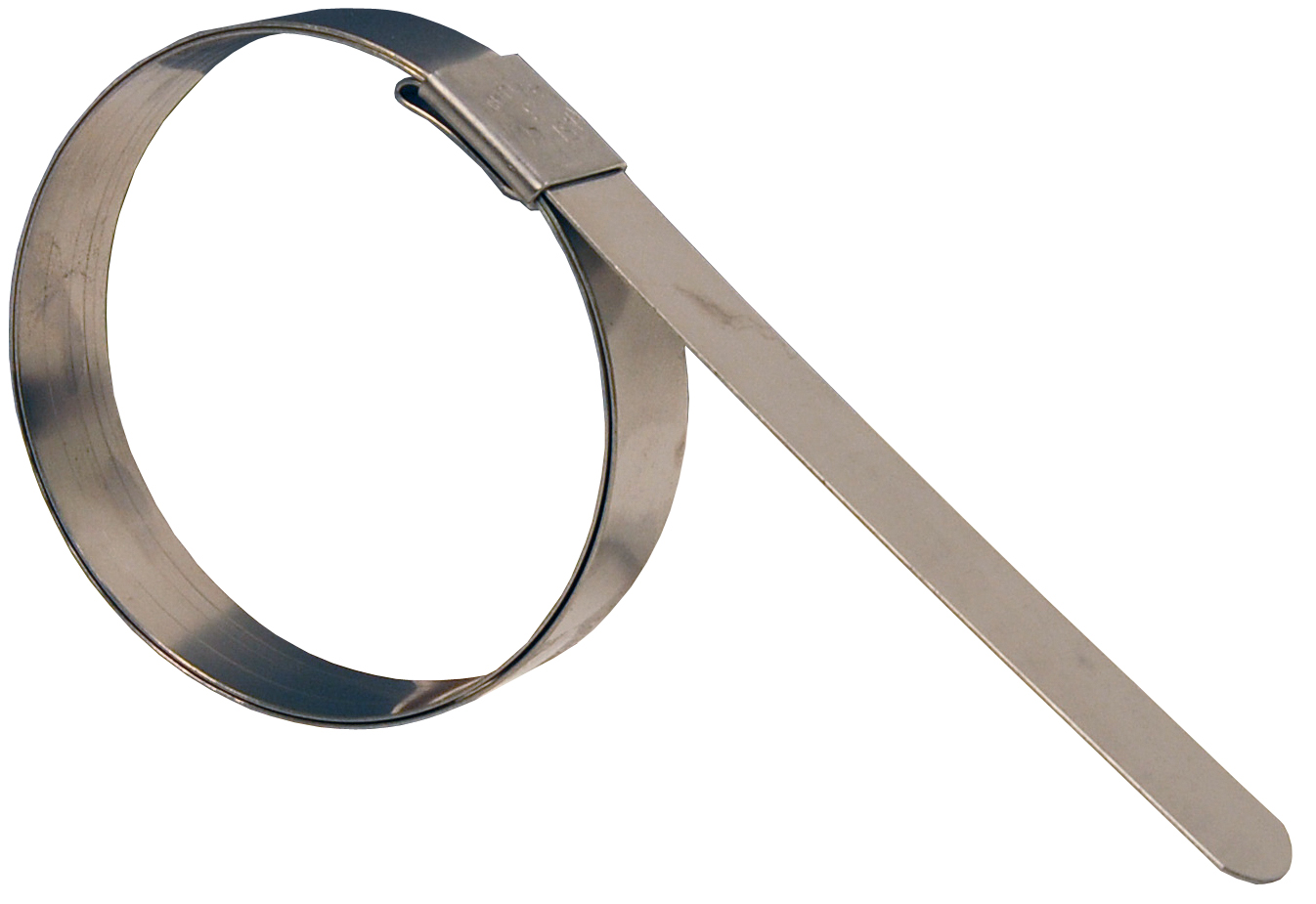

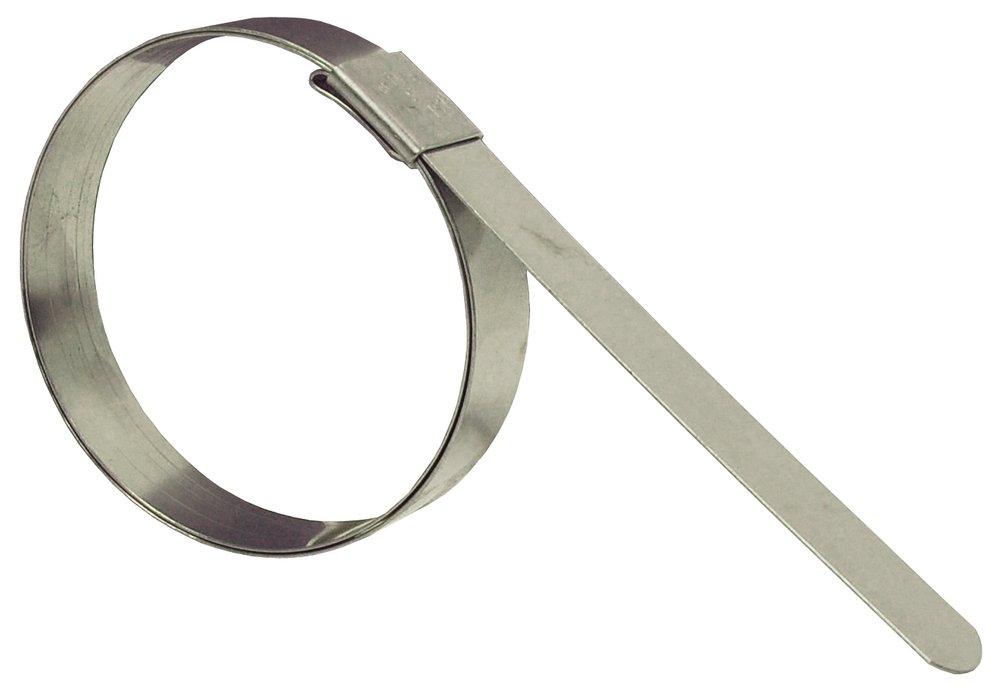

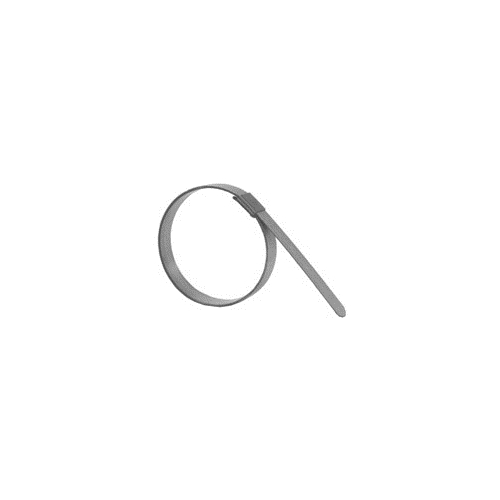

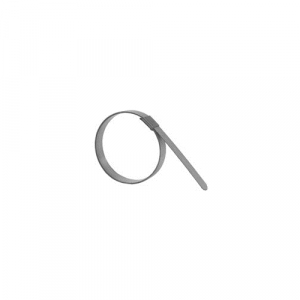

Dixon Style F Preformed Band Clamps are from their F Series line of center punch bandclamps. These center punch hose clamps are compatible with the F1, F38, F40, and F100 Band Clamp Hand Tools (other manufacturer punch style tools may also be used). F Series Band Clamps come pre-formed in a given diameter with the tailpiece already through the buckle and must be slid over the hose end. F and FO Series Clamps are available in Galvanized Steel or Stainless Steel (300 Series Band, 302 Series Buckle) and are double-wrapped, triple-punched, and hold permanently. Sold in package quantities only, quantity varies with size of clamp. Please reference chart below for bandwidth and package quantity for these Pre-Formed Dixon Center Punch Band Clamps. The use of band style clamps is a proven method of retaining hose couplings in industrial hose applications. To achieve proper retention and sealing of the hose coupling in the hose, it is imperative that these clamps be installed correctly. Please follow the manufacturerâ€s recommendations as to the proper selection and installation of band clamps. When installing multiple clamps the buckles must be offset around the hose, eliminating the possibility of a straight line leak under the buckle area. The first clamp should be installed just inside the mark on the hose furthermost from the hose end (reference page 11). Leaving excess band material turned back over the buckle does not improve the performance of the clamp. In fact, a safety hazard develops from this practice by leaving sharp edged material exposed.

Dixon, F10, F-Series 2-1/2" Pre-formed Galvanized Steel Center Punch Band Clamp Use For use with center punch clamp tools F1, F38, F40 and F100, other manufacturer's punch style tools may also be used Features Pre-formed
