OD1232-12HB Orion Fans | Fans, Thermal Management | DigiKey

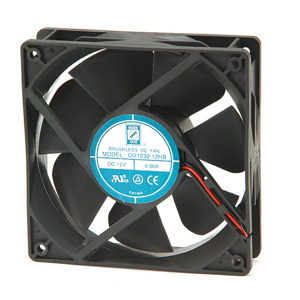

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 120.0 CFM (3.36m?/min) 2 Wire Leads
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OD1232-12HB Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OD1232-12HB |
| qtyInStock | 505 |
| SKU | 1053-1136-ND |
| Part Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 32.00mm |
| Air Flow | 120.0 CFM (3.36m?/min) |
| Static Pressure | 0.420 in H2O (104.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features, Ingress Protection, Weight | - |
| Noise | 51.0dB |
| RPM | 3750 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | -4 ~ 176?F (-20 ~ 80?C) |
| Approval Agency | cURus, TUV |
| Current Rating (Amps) | 0.600A |
| Voltage Range | 6 ~ 13.8VDC |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Lifetime @ Temp | 60000 Hrs @ 40?C |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1053-1136-ND | 1 | 505 | 1 | |
 arcade-electronics.com | ORI-OD1232-12HB | 1 | -2 | 1 | 1 @ $23.08 |
| Hotenda | H1901920 | 1 | 113 | 1 | 1 @ $16.63, 10 @ $15.84, 25 @ $14.85, 100 @ $13.17, 250 @ $12.38, 500 @ $12.13 |
 Carlton Bates Company | 40308486199 | 1 | 1 | 1 @ $0.00 | |
| Future Electronics | 6107809 | 1 | 20 | 1 | 1 @ $20.39, 5 @ $17.08, 10 @ $15.82, 25 @ $14.30, 50 @ $13.25 |
 Newark | 89AH2505 | 1 | 1 | 1 @ $27.90, 5 @ $25.95, 10 @ $25.05, 25 @ $24.15, 50 @ $22.80, 100 @ $20.40 | |
| Digi-Key | 2621041 | 1 | 139 | 1 | 1 @ $22.45, 10 @ $20.50, 25 @ $19.73, 50 @ $18.43, 100 @ $17.00, 250 @ $16.74, 500 @ $16.61 |
 Onlinecomponents.com | OD1232-12HB | 2 | 113 | 1 | 2 @ $18.59, 100 @ $16.16, 1000 @ $15.67, 10000 @ $15.67 |
| Mouser | 670-OD123212HB | 1 | 115 | 1 | 1 @ $21.59, 10 @ $19.72, 100 @ $16.35, 1000 @ $15.97, 10000 @ $15.97 |
| Galco | OD1232-12HB-ORIN | 1 | 1 | ||
 Newark | 51AK1620 | 1 | 68 | 1 | 1 @ $32.98, 5 @ $30.95, 10 @ $30.01, 25 @ $29.07, 50 @ $27.67, 100 @ $25.17 |
| 10141379 | 1 | 51 | 1 | 1 @ $25.00 | |
| us.rs-online.com | 70103687 | 1 | 19 | 1 | 1 @ $22.45, 10 @ $20.51, 25 @ $19.73, 50 @ $18.43, 100 @ $17.00, 250 @ $16.74 |
