QSE-040-01-L-D-A-K-TR Samtec Inc. | Connectors, Interconnects | DigiKey

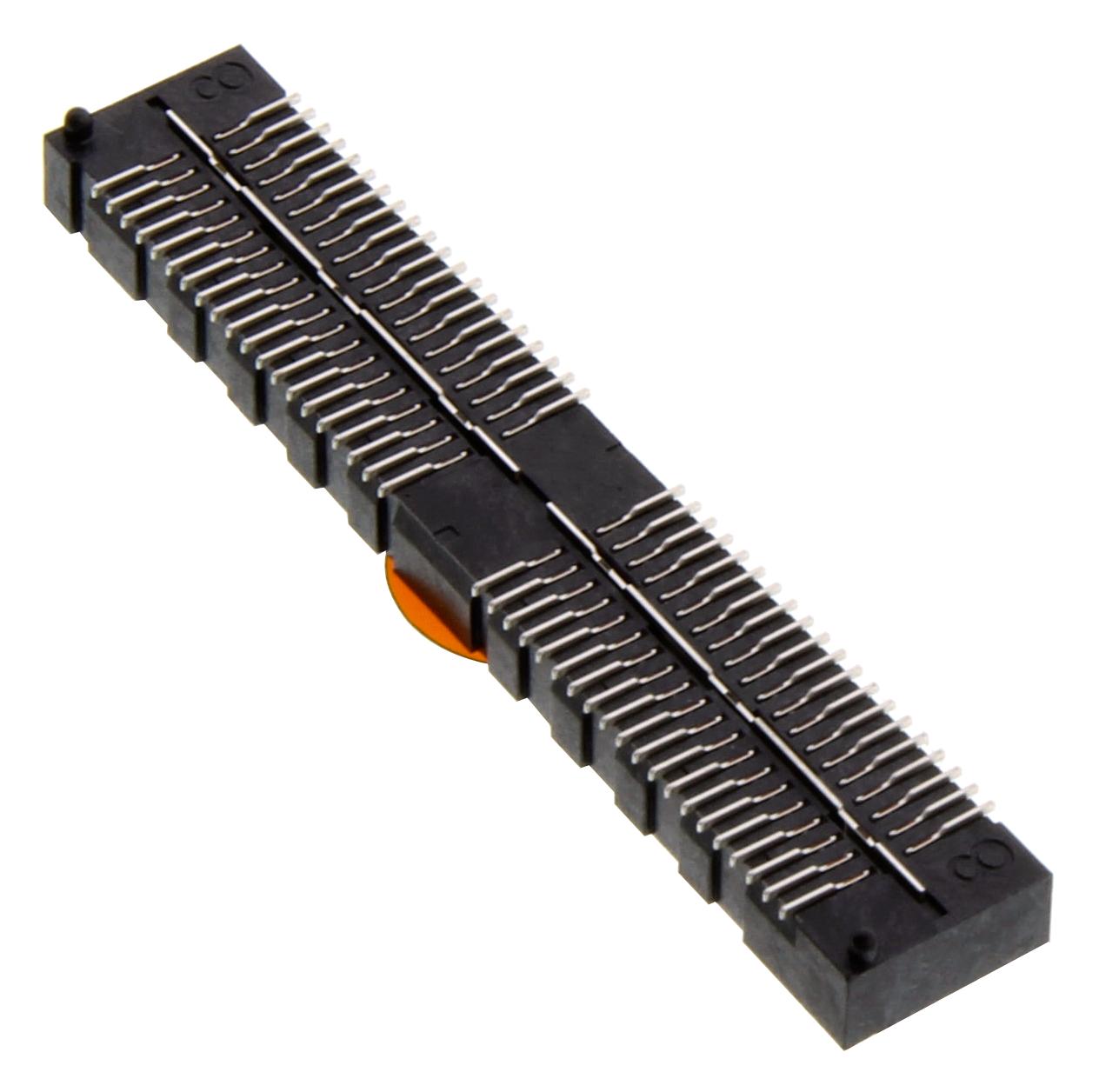

80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Samtec Inc. |
|---|---|
| CategoryL1, Category | Connectors, Interconnects |
| CategoryL2 | Rectangular Connectors |
| CategoryL3 | Arrays, Edge Type, Mezzanine (Board to Board) |
| DimensionUnit | mm |
| Extra Product Name | QSE-040-01-L-D-A-K-TR Samtec Inc. | Connectors, Interconnects | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| height | 5.0 |
| height_Attrib | Mated Stacking Heights |
| MPN, Manufacturer Product Number | QSE-040-01-L-D-A-K-TR |
| packaging | Cut Tape (CT) & Digi-Reel? |
| qtyInStock | 1981 |
| SKU | 6561628 |
| snippet, Detailed Description | 80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 50 |
| tierMinQty5 | 100 |
| tierMinQty6 | 475 |
| tierMinQty7 | 950 |
| tierPrice1 | 11.58000 |
| tierPrice2 | 10.26100 |
| tierPrice3 | 9.86640 |
| tierPrice4 | 9.47180 |
| tierPrice5 | 8.94560 |
| tierPrice6 | 7.63004 |
| tierPrice7 | 6.99859 |
| Digi-Key Part Number | SAM13213TR-ND - Tape & Reel (TR) |
| Description | CONN RCPT 80POS SMD GOLD |
| Manufacturer Standard Lead Time | 6 Weeks |
| Series | Q Strip? QSE |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Connector Type | Receptacle, Center Strip Contacts |
| Number of Positions | 80 |
| Pitch | 0.031" (0.80mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Board Guide, Ground Bus (Plane), Pick and Place |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0?in (0.25?m) |
| Mated Stacking Heights | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm |
| Height Above Board | 0.128" (3.25mm) |
| Base Product Number | QSE-040 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 6561628 | 1 | 1981 | 1 | 1 @ $11.58, 10 @ $10.26, 25 @ $9.87, 50 @ $9.47, 100 @ $8.95, 475 @ $7.63, 950 @ $7.00 |
 Newark | 97AC6763 | 1 | 10 | 1 | 1 @ $8.74, 200 @ $7.74, 500 @ $7.53, 1000 @ $7.00 |
 Radwell | QSE-040-01-L-D-A-K-TR | 125 | 125 | 1 @ $12.00 | |
| RS Online | 1802834 | 1 | 1 | ||
| RS Delivers | 180-2834 | 1 | 1 | 1 @ $11.19, 25 @ $10.69, 100 @ $9.00, 250 @ $8.56, 500 @ $7.55 | |
| Newark | 96P2922 | 1 | 1 | 1 @ $7.74, 250 @ $7.53, 500 @ $7.21 | |
| Digi-Key | 8827968 | 1 | 147 | 1 | 1 @ $10.65, 10 @ $10.19, 25 @ $9.26, 50 @ $8.80, 100 @ $8.57 |
| Digi-Key | 8828174 | 1 | 1425 | 1 | 1 @ $11.64, 10 @ $10.48, 25 @ $9.87, 50 @ $9.62, 100 @ $9.36, 475 @ $7.93, 950 @ $7.29 |
| Samtec | QSE-040-01-L-D-A-K-TR | 1 | 1900 | 1 | 1 @ $9.57, 10 @ $8.85, 25 @ $8.37, 50 @ $8.06, 100 @ $6.19, 500 @ $5.56, 1000 @ $4.31, 3325 @ $3.06, 9025 @ $2.83, 19000 @ $2.61 |
| RS Delivers | 180-2553 | 1 | 1 | 1 @ $7.93 | |
| RS Online | 1802553 | 1 | 1 |
