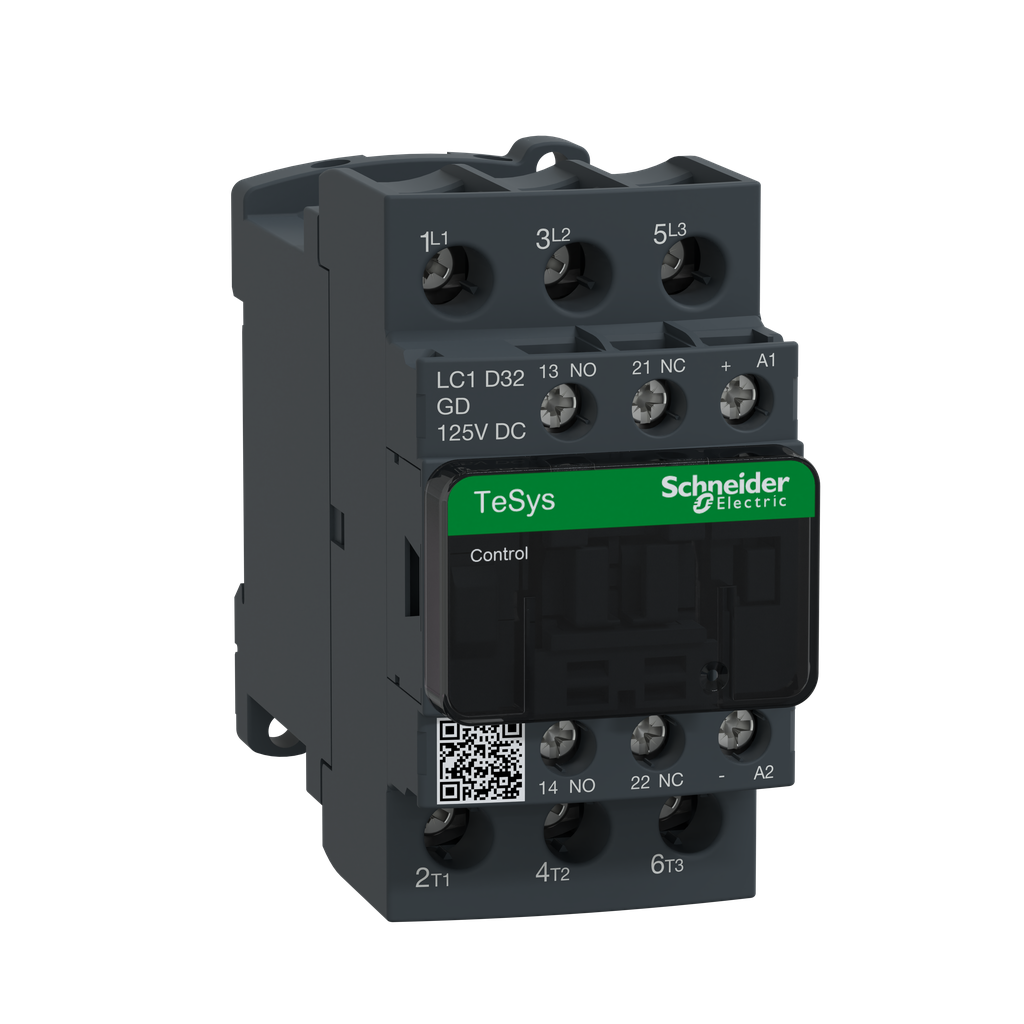

IEC contactor, TeSys Deca, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 125VDC coil, open style | Mayer Electric

Mayer Electric Supply . LC1D32GD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameIEC contactor, TeSys Deca, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 125VDC coil, open style | Mayer Electric
UPC785901207320
Weight0.535
WeightUnitkg
Weight_AttribNet Weight
depth, length101.0
height85.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-TeSys-D-contactor-3P3-NO-AC-3-440-V-32-A-125-V-DC-coil-785901207320
jsonUrlData2d4288468-1de4-4eeb-b4ad-abde00f79d14
length_AttribDepth
moq, multiple, tierMinQty11
MPNLC1D32GD
qtyInStock0
SKUSQDLC1D32GD
tierPrice1241.06
width45.0
width_AttribWidth
Product CertificationsCCC || RINA || BV || GOST || LROS (Lloyds register of shipping) || GL || DNV || UL || CSA || UKCA
[Uc] Control Circuit Voltage125 V DC
Power Dissipation Per Pole2 W AC-3 || 5 W AC-1 || 2 W AC-3e
Average Impedance2 mOhm - Ith 50 A 50 Hz power circuit
Auxiliary Contact Composition1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current10 A 60 ?C signalling circuit || 50 A 60 ?C power circuit
Mounting Supportplate || rail
Control Circuit TypeDC standard
StandardsCSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Applicationresistive load || motor control
Rated Breaking Capacity550 A 440 V power circuit IEC 60947
Product Or Component Typecontactor
Irms Rated Making Capacity140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1 || 550 A 440 V power circuit IEC 60947
Product NameTeSys D || TeSys Deca
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
RangeTeSys || TeSys Deca
Pole Contact Composition3 NO
Utilisation CategoryAC-3 || AC-4 || AC-1 || AC-3e
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Poles Description3P
Operating Time53.55...72.45 ms closing || 16...24 ms opening
Overvoltage CategoryIII
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
Device Short NameLC1D
Protective Coverwith
Warranty18 months
Non-Overlap Time1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Minimum Switching Current5 mA signalling circuit
Control Circuit Voltage Limits0.1...0.25 Uc -40-70 ?C drop-out DC || 0.7...1.25 Uc -40-60 ?C operational DC || 1...1.25 Uc 60-70 ?C operational DC
Hold-In Power Consumption In W5.4-5.4 W 20 ?C
Insulation Resistance> 10 MOhm signalling circuit
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Time Constant28 ms
Minimum Switching Voltage17 V signalling circuit
Signalling Circuit Frequency25...400 Hz
Inrush Power In W5.4-5.4 W 20 ?C)
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Rohs Exemption Information, Mercury Free, Pvc FreeYes
Environmental DisclosureENVPEP110229EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI1102029EN
Eu Rohs DirectiveCompliant
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
Ambient Air Temperature For Operation-40-60 ?C || 60-70 ?C with derating
Height85 mm
Climatic WithstandIACS E10 || IEC 60947-1 Annex Q category D
Pollution Degree3
Net Weight0.535 kg
Ambient Air Temperature For Storage-60-80 ?C
Protective TreatmentTH IEC 60068-2-30
Ip Degree Of ProtectionIP20 front face IEC 60529
Operating Altitude0...9842.52 ft (0...3000 m)
Fire Resistance850 ?C IEC 60695-2-1
Width45 mm
Depth101 mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLC1D32GD111 @ $241.06
