Ultra-Dex Usa

Ultra-Dex Usa . E06M SCLPR2-203

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameUltra-Dex Usa
DimensionUnitinch
GraingerSku33NA73
UnitOfMeasureEA
Weight0.3
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead15
extendedQty-2
height0.38
jsonUrlData924526ffbdad25e5923b
length7
moq, multiple, tierMinQty1, Number of Inserts, Number of Coolant Holes1
MPNE06M SCLPR2-203
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9230155
tierPrice1241.00
urlhttps://www.zoro.com/ultra-dex-usa-indexable-boring-bar-e06m-sclpr2-6-in-l-carbide-80-degrees-diamond-insert-shape-e06m-sclpr2-203/i/G9230155/
width2.38

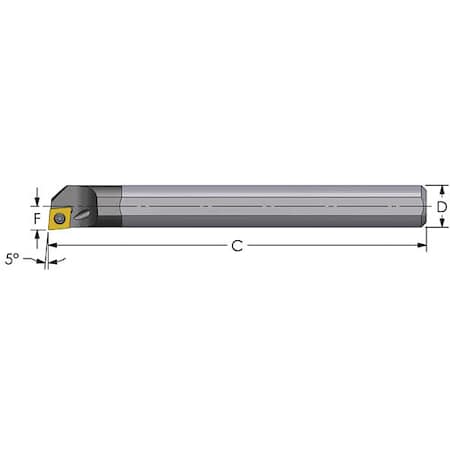

ItemIndexable Boring Bar
Overall Length6 in
Shank Dia3/8 in
Min Bore0.410"
Cutting Direction, Left/Right HandRight Hand
Insert Shape80 Degrees Diamond
Shank MaterialCarbide
StyleCoolant-Thru
ANSI Code, ANSI NumberE06M SCLPR2
Mounting StyleScrew Lock
TypeTurning
Inscribed Circle1/4"
Lead Angle, Cutting Edge Type, Side Cutting Edge Angle-5 Degrees
Insert Thickness0.0937"
For Use WithCPMT 21.51
RakePositive
Bar Dia0.375"
Insert Size21.51
Insert Clearance Angle11 Degrees
Center to Cutting Tip, Insert Inscribed Circle1/4 in
Cutting ApplicationBoring
Min Bore Dia0.4600 in
Coolant FedCoolant Through
Compatible HardwareMTS-255 Insert Screw, T-7 Key
Insert Holding TypeScrew On
Insert StyleCPMT
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9230155111 @ $241.00
ZoroG6672640111 @ $212.11
