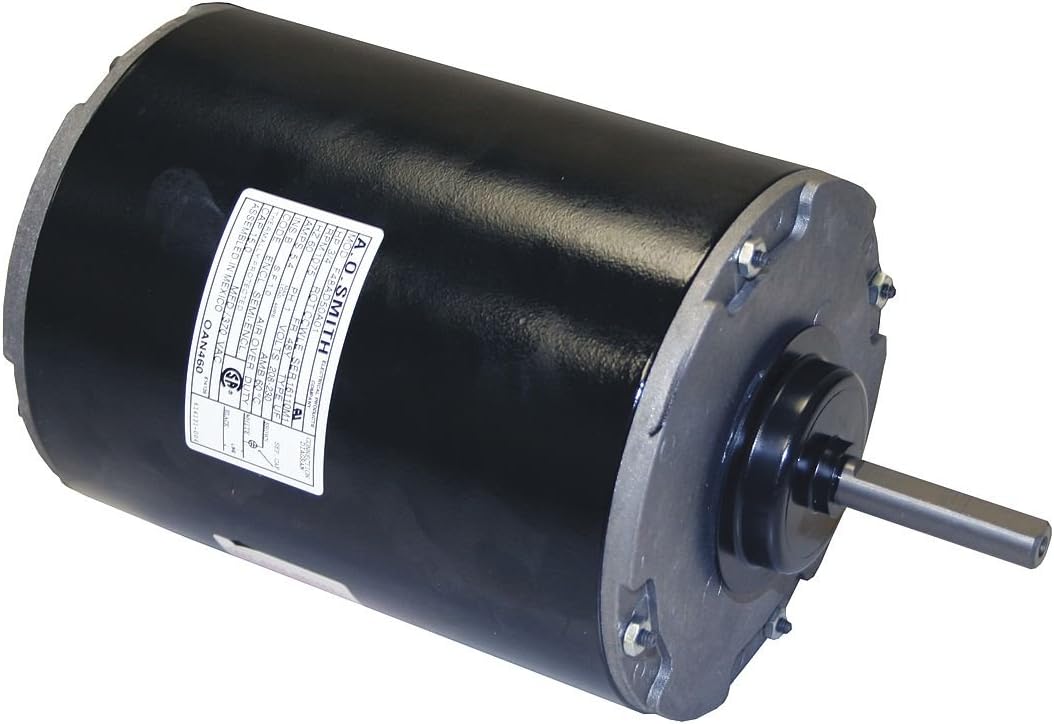

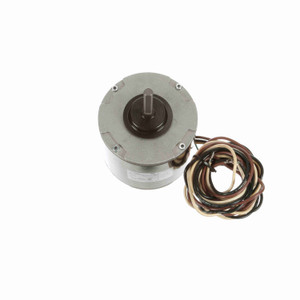

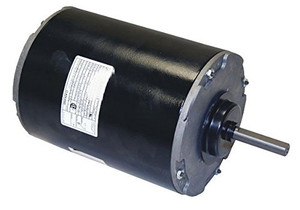

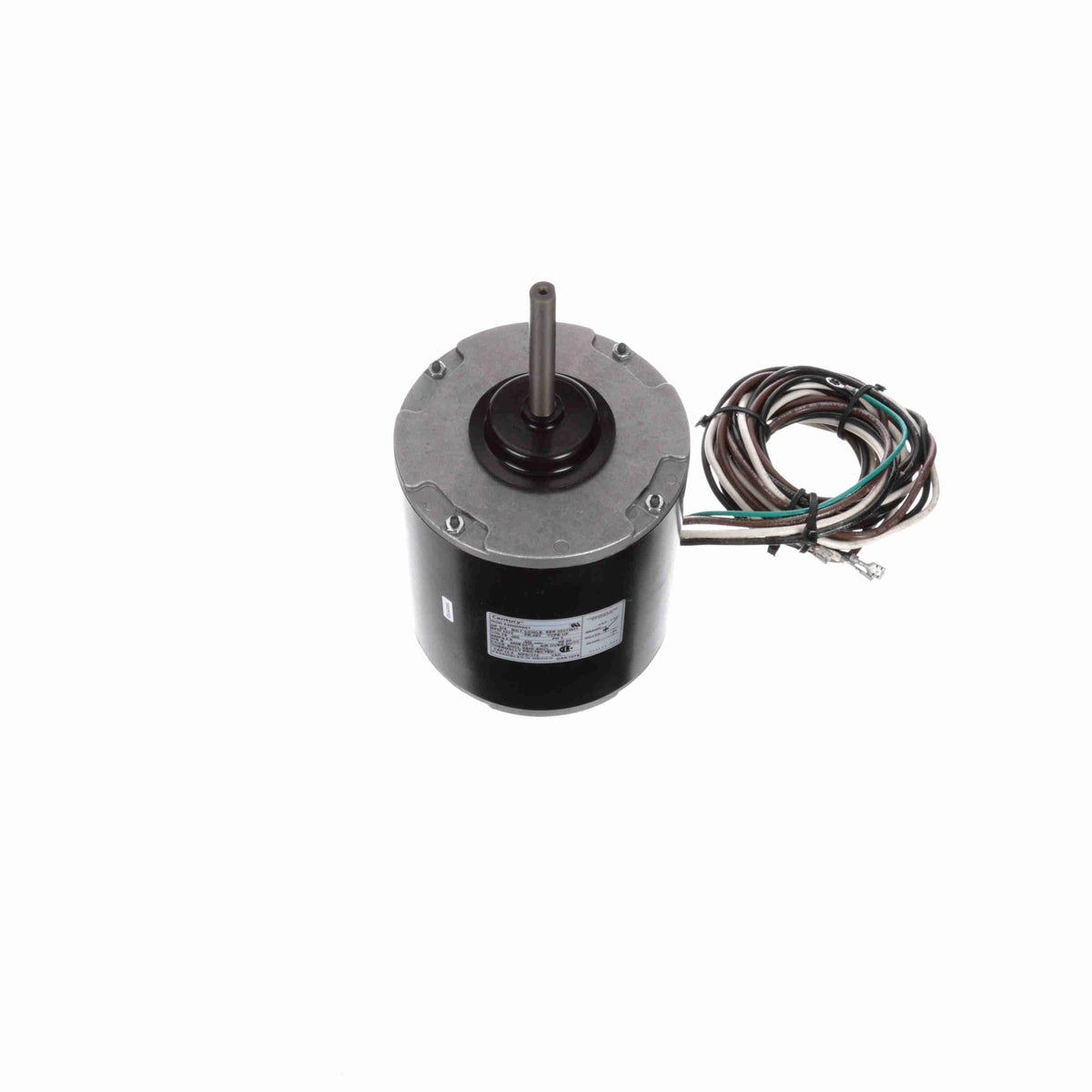

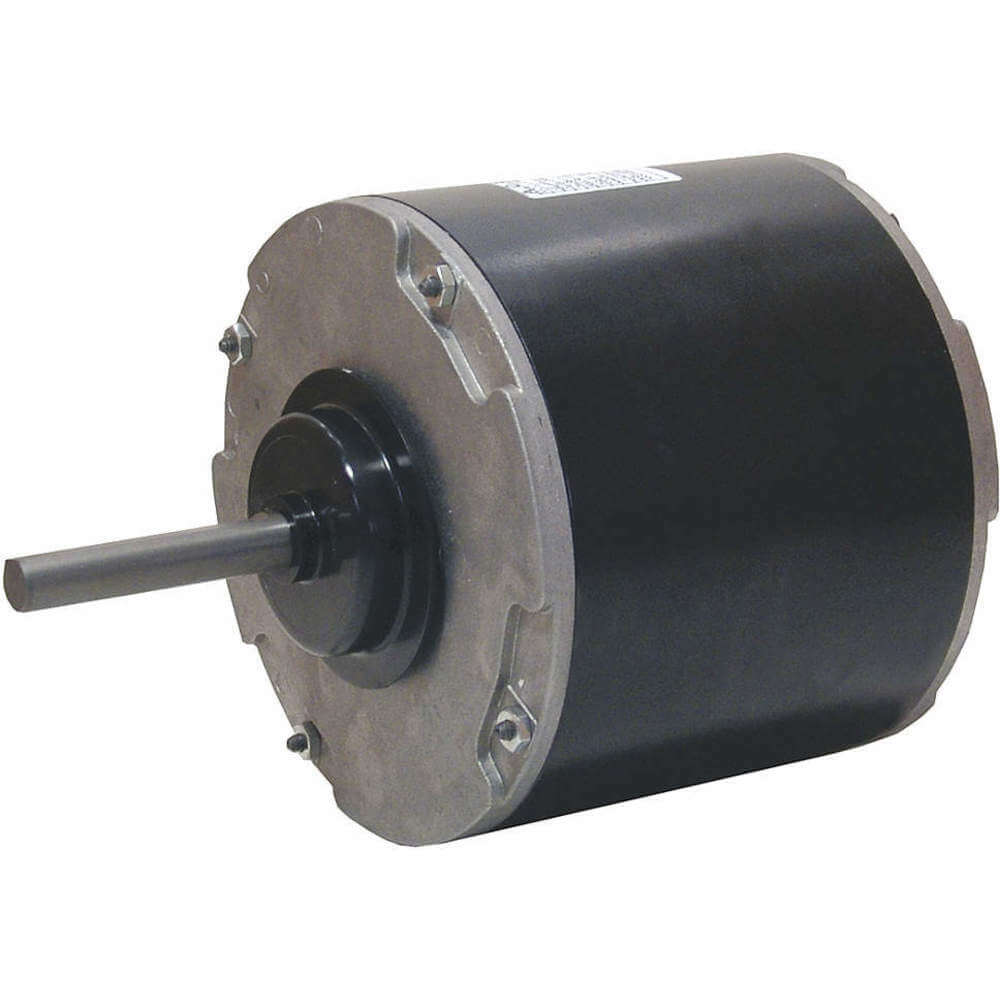

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,100, No. of Speeds 1, Voltage 460V AC, Full Load Amps 1.0, 48Y Frame, OEM Replacement Brand Aaon, Replacement For F48A11A27C, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,100, No. of Speeds 1, Voltage 460V AC, Full Load Amps 1.0, 48Y Frame, OEM Replacement Brand Aaon, Replacement For F48A11A27C, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band

Century . OAN010

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCentury
CategoryId, CategoryIdL36493
CategoryIdL138
CategoryIdL29918
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3HVAC Motors
CategoryL4OEM Replacement Motors
DimensionUnitinch
GTIN, UPCNone
GraingerSku12N953
UnitOfMeasureEA
Voltage460V
Weight14.65
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height9.4
jsonUrlData924526ffbdad25e5923b
length11.1
moq, multiple, tierMinQty1, No of Speeds, Number of Shafts, Phase1
MPNOAN010
qtyInStock37
qtyInStockOverride-2
SKUG3940474
tierPrice1341.99
urlhttps://www.zoro.com/century-motor-13-hp-oem-replacement-brand-aaon-replacement-for-f48a11a27c-oan010/i/G3940474/
width8.2
Shaft Dia1/2"
Shaft Length2-3/4"
Length Less Shaft5 1/4 in
Body Dia5.7"
Manufacturers Warranty Length1 yr.
Overall Length8"
Frame48Y
HP1/3 HP
ItemMotor
Motor ApplicationOEM Replacement
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignSemi Enclosed
Motor Mounting TypeRound Belly Band
Motor Shaft RotationCounterclockwise Lead End
Motor Sub ApplicationCondenser Fan Motor
Motor Thermal ProtectionAutomatic
Nameplate RPM1100 rpm
OEM Replacement BrandAaon
RPM Range1001-1100
Motor BearingsBall

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG394047413711 @ $341.99
Raptor SuppliesAA4JFD111 @ $555.77
AmazonTPB004ZLUS02111 @ $227.82
AmazonTPB009STC76O111 @ $280.77
AmazonB009STC76O11
Voomi SupplyOAN0101-211 @ $359.43
sustainablesupply.comC15413511Add to Cart11 @ $450.67
DreisilkerCE-RBC-OAN0101-211 @ $359.73
emotorpro.comOAN0101-211 @ $357.16
uri.comOAN0101-211 @ $785.64
midwestapplianceparts.comOAN010-AO-P111 @ $357.60
homeessentialsdirect.comOAN0101-211 @ $358.50
Square OneOAN01011
hvacdiscountstore.comCEN--OAN010111 @ $328.07
simsupply.comZO-G394047412211 @ $404.80
ptacsolutions.comOAN010111 @ $441.56
