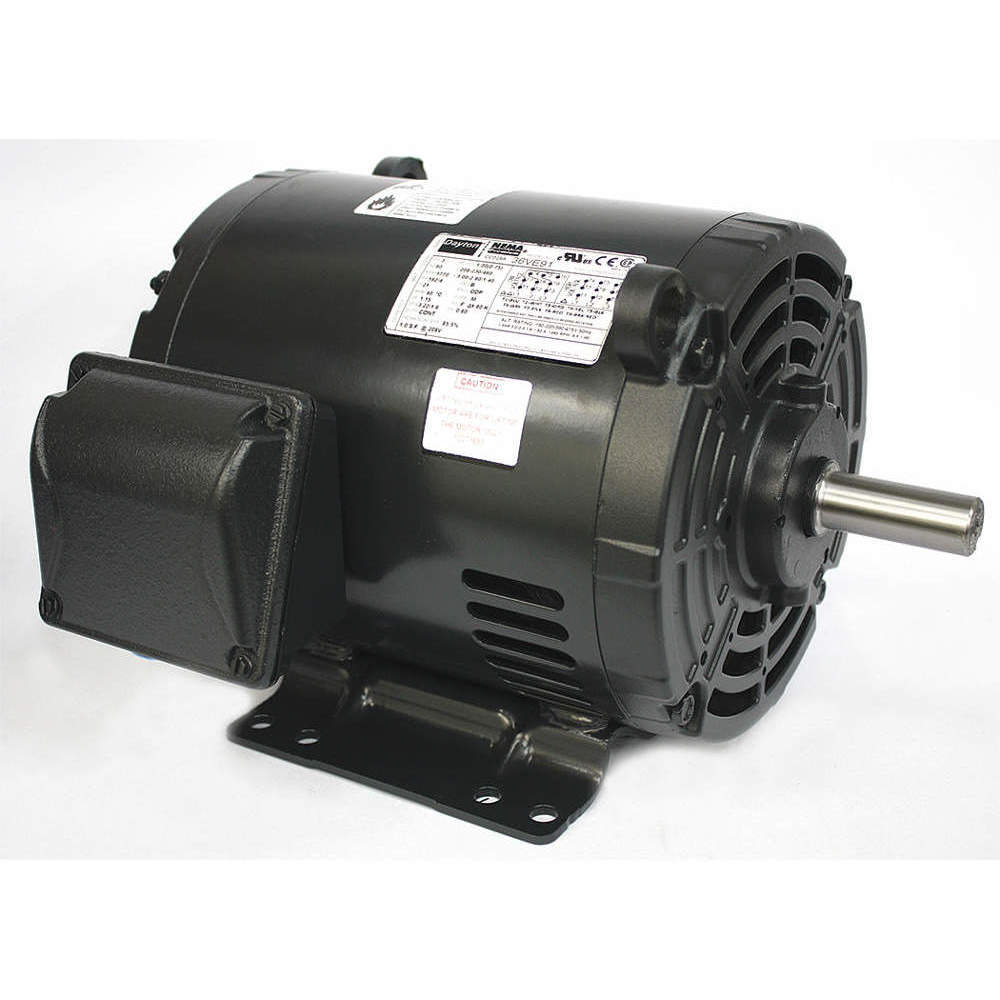

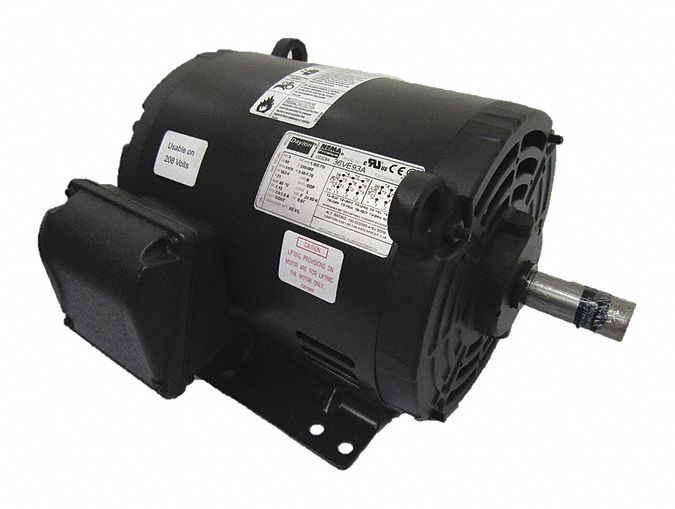

General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,170, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.5/1.20, 182/4 Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed

General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,170, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.5/1.20, 182/4 Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed

Dayton . 36VE93

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
CategoryId, CategoryIdL39921
CategoryIdL138
CategoryIdL29913
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3General Purpose AC Motors
CategoryL43-Phase AC Motors
DimensionUnitinch
GraingerSku, MPN36VE93
UPC190735275276
UnitOfMeasureEA
Voltage230/460V AC
Weight56.8
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height12.5
jsonUrlData924526ffbdad25e5923b
length18.3
moq, multiple, tierMinQty1, HP1
qtyInStock5
qtyInStockOverride-2
SKUG1811078
tierPrice1417.99
urlhttps://www.zoro.com/dayton-3-phase-general-purpose-motor-1-hp-1824-frame-230460v-ac-voltage-1-170-nameplate-rpm-36ve93/i/G1811078/
width14.5
Length Less Shaft11 1/4 in
Shaft Dia7/8 in
Overall Length13 1/2 in
Manufacturers Warranty Length1 yr
Shaft Length2 1/4 in
ItemGeneral Purpose Motor
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeRigid Base
RPM Range1,101-1,200
Frame182/4
Motor Thermal ProtectionNone
Motor Service Factor1.15
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor ApplicationGeneral Application
Motor Design3-Phase
Nameplate RPM1,170
Motor Shaft RotationCW/CCW
Motor Mounting PositionHorizontal
Motor Frame MaterialRolled Steel
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
IncludesConduit Box

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG18110781511 @ $417.99
Grainger36VE9311
Raptor SuppliesAH7KLG111 @ $635.90
sustainablesupply.comC30194381Add to Cart11 @ $557.15
emotorpro.com36VE931-211 @ $715.64
grainger.caWWG36VE9311
simsupply.comZO-G18110781111 @ $494.74
