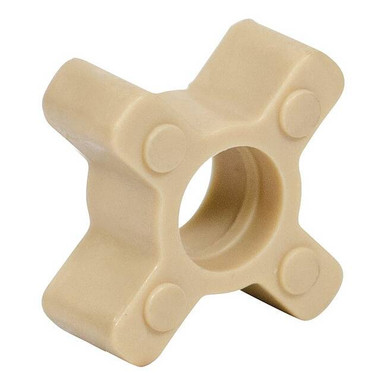

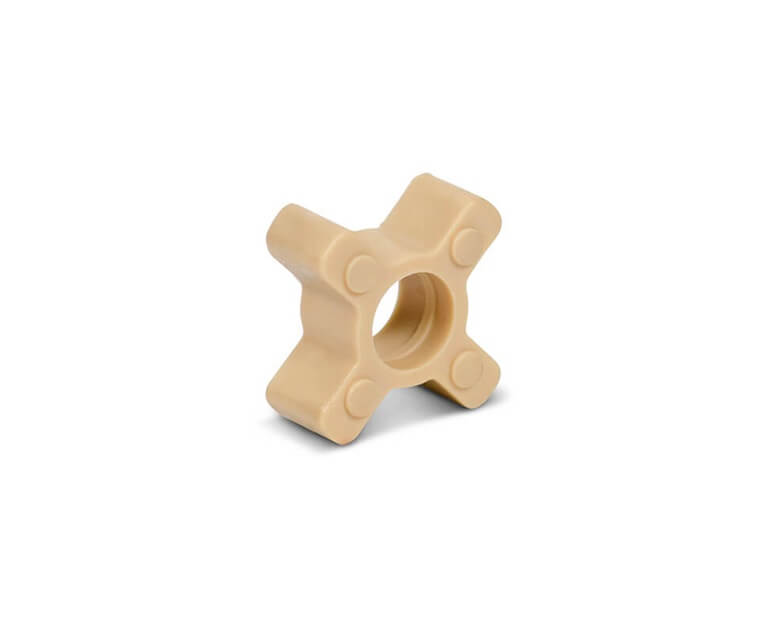

L070H HYTREL SPIDER
L070H HYTREL SPIDER
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | TB Woods |
|---|---|
| CategoryL1 | Shaft Couplings and Collars |
| CategoryL2 | Jaw Couplings |
| CategoryL3 | Components |
| CategoryL4 | Spider Elements |
| Extra Product Name, snippet | L070H HYTREL SPIDER |
| moq, multiple | 6 |
| MPN | L070H |
| qtyInStock | 0 |
| SKU | 340144 |
| tierMinQty1, Element thickness | 1 |
| tierPrice1 | 12.71 |
| Product family | L-Jaw Spider |
| Size code | 70 |
| Element type | Open Center Spider |
| Thickness, Thickness (in) | 0.44 |
| Max compatible bore size | 0.75 |
| Element durometer | 55D |
| Max speed | 14000 |
| Overall length | 2 |
| Min compatible bore size | 0.25 |
| Chemical resistance, Oil resistance | Excellent |
| Center hole | 0.46 |
| Temperature rating | -60?F to 250?F |
| Material type | Hytrel, White |
| Horsepower Rating at 100 RPM | 39 |
| Torsional stiffness | Hard |
| Power rating at 100 RPM | 0.18 HP |
| Jaw type | Straight |
| Max parallel misalignment | 0.015 |
| Dimension (in ) (OD) | 1.360 |
| O D | 1.36 |
| Element material | Hytrel |
| Max angular misalignment | 1/4? |
| Coupling size | L070 |
| Torque | 13 Nm |
| Flexibility | Fair |
