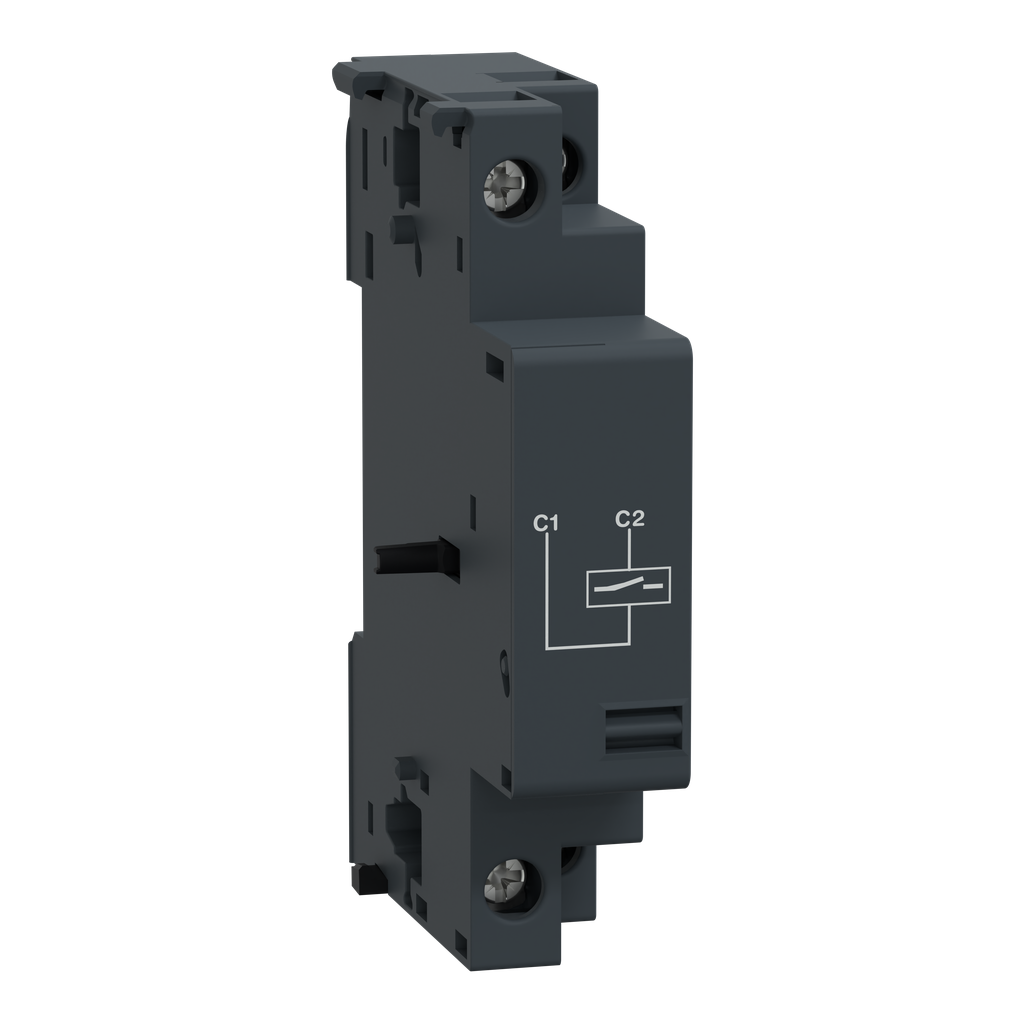

Shunt release (MX), TeSys Deca, 110-115V AC 60Hz | Mayer Electric

Mayer Electric Supply . GVAS116

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameShunt release (MX), TeSys Deca, 110-115V AC 60Hz | Mayer Electric
UPC785901343691
Weight0.105
WeightUnitkg
Weight_AttribNet Weight
depth, length66.0
height89.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Shunt-release-MX-TeSys-GV2-GV3-110-115V-AC-60Hz-785901343691
jsonUrlData24e027797-dcaa-49ad-b7d1-abde00f75e1a
length_AttribDepth
moq, multiple, tierMinQty11
MPNGVAS116
qtyInStock0
SKUSQDGVAS116
tierPrice192.60
width18.0
width_AttribWidth
Product Or Component Typeshunt trip release
RangeTeSys || TeSys Deca
Device Short NameGVAS
Warranty18 months
[Uc] Control Circuit Voltage110...115 V AC 60 Hz
Control Circuit Voltage Limits0.7...1.1 Un
Height89 mm
Range CompatibilityGV2ME || GV2LE || GV2L || GV2P || GV3L || GV3P
Hold-In Power Consumption In W1.6-1.6 W
Net Weight0.105 kg
Inrush Power In Va14-14 VA AC
[Ui] Rated Insulation Voltage690 V AC IEC 60947-1 || 600 V AC UL 60947-4-1 || 600 V AC CSA C22.2 No 60947-4-1
Mechanical Durability10000 cycles with GV3P and GV3L || 30000 cycles with GV2ME and GV2P
Threshold Tripping Voltage0.75...0.2 Un
Hold-In Power Consumption In Va5-5 VA AC
On-Load Factor100 %
Quantity Per Setset of 10
Operating Time10...15 ms IEC 60947-1
Colordark grey
Width18 mm
Depth66 mm
Inrush Power In W10.5 W
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP111252EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDGVAS116111 @ $92.60
