D-2008SP CU

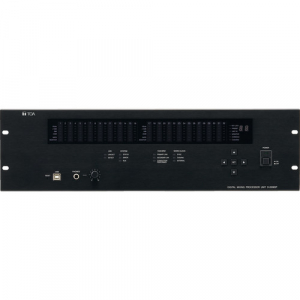

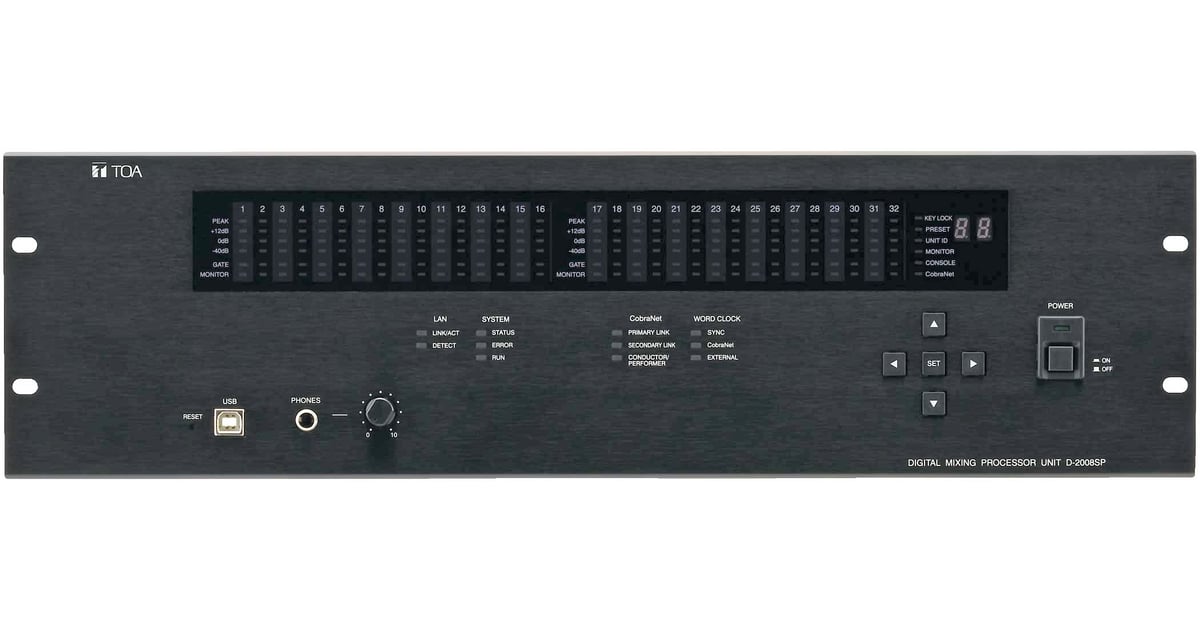

TOA Electronics D-2008SP CU. 32-Channel Digital Mixing Processor Unit The D-2008SP Digital Mixing Processor Unit is designed to have up to 32 audio inputs and outputs in total, and to be mounted in an EIA standard equipment rack (3U size). A built-in powerful signal processing function permits the unit to be used as both a mixer and a signal processor. Its audio input / output and control ports can accept optional plug-in modules, making the unit have a maximum of 32 inputs or 32 outputs and up to 2 control modules Expandable to a massive 128 input/output configuration, the D-2000 Series includes various modules and peripherals that can be combined to create the best possible sound in small to medium-size venues of all typesbr including hotel banquet and function rooms, indoor sports facilities, multipurpose halls and places of worship and many others Key Features: - The D-2000 Series fully modular design makes it a simple matter to create a configuration that meets specific user requirements - 24-Bus Matrix - Totally flexible input-to-output signal routing for zoning or room combining as needed - Highly Effective Feedback Suppression - Essential Audio Processing - 32 Preset Memories for User Convenience - VCA and RS-232C Control Specifications: - Power Source: AC mains, 50 / 60Hz - Power Consumption: 76W - Frequency Response: 20Hz - 20kHz, +/-1dB (+/-4dB input) - Sampling Frequency: 48kHz - Input and Output: Input Max. 32 channels, modular construction (modules optional) - Control: RS-232C, D-sub connector (9 pins) Used for external control // Module: Remote control module slot: 2 - Operating Temperature: 41°F to 104°F - Dimensions: 18.98" × 5.22" × 13.52" - Weight: 13.89 pounds
