Boneham

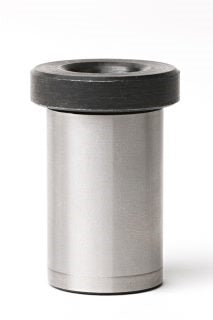

Drill Bushing - Head Press Fit H4028IU21/64" Drill Size with STEEL Finish.RC 62-64 to RC 62-64 with 21/64" 0.323"H-TYPE Technical Specs*Please contact [email protected] for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*Full DescriptionDril

Boneham . H4028IU

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameBoneham
DimensionUnitinch
GraingerSku11G661
UPCNone
UnitOfMeasureEA
Weight0.14
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginGB
extendedLead15
extendedQty-2
height1.97
jsonUrlData924526ffbdad25e5923b
length, width0.22
moq, multiple, tierMinQty11
MPNH4028IU
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG1988491
tierPrice19.51
urlhttps://www.zoro.com/boneham-drill-bushing-h-drill-size-2164-in-h4028iu/i/G1988491/
Drill Bushing Wall TypeStandard Wall
Overall Length1 3/4 in
Drill Size, Inside Dia21/64 in
HardnessRc 62-64
Bushing TypeHead Press Fit
Finish, Head Material, Material - MachiningHigh Speed Steel
Inside Dia Tolerance+0.0002 in /+0.0006 in
ItemHeaded Press-Fit Drill Bushing (H)
Concentricity Tolerance.0003" T.I.R. Max
Length under Head1-3/4"
Heat TreatmentThrough Hardened
Decimal Equivalent0.3281
Size- Decimal21/64" (0.3281)
Outside Dia Tolerance+0.0017 in /+0.0014 in
Head Thickness7/32"
Outside Dia5/8 in
Measurement SystemFractional Inch
Rockwell HardnessRC 62-64
Bushing Head TypeHeaded
Material52100 Thru Hardened
Head Dia51/64 in
Head TypeYes
Bushing CodeH
Size - Decimal1-41/64 in - 1.6406
Flute TypeSpiral
Point TypeSplit
Drill Bit Dimension TypeFractional
Country of Origin (subject to change)United Kingdom

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG1988491111 @ $9.51
National Supply Network073210941-211 @ $23.85
freertool.comBH-H4028IU111 @ $14.59
National Supply Network73210941-211 @ $26.83
