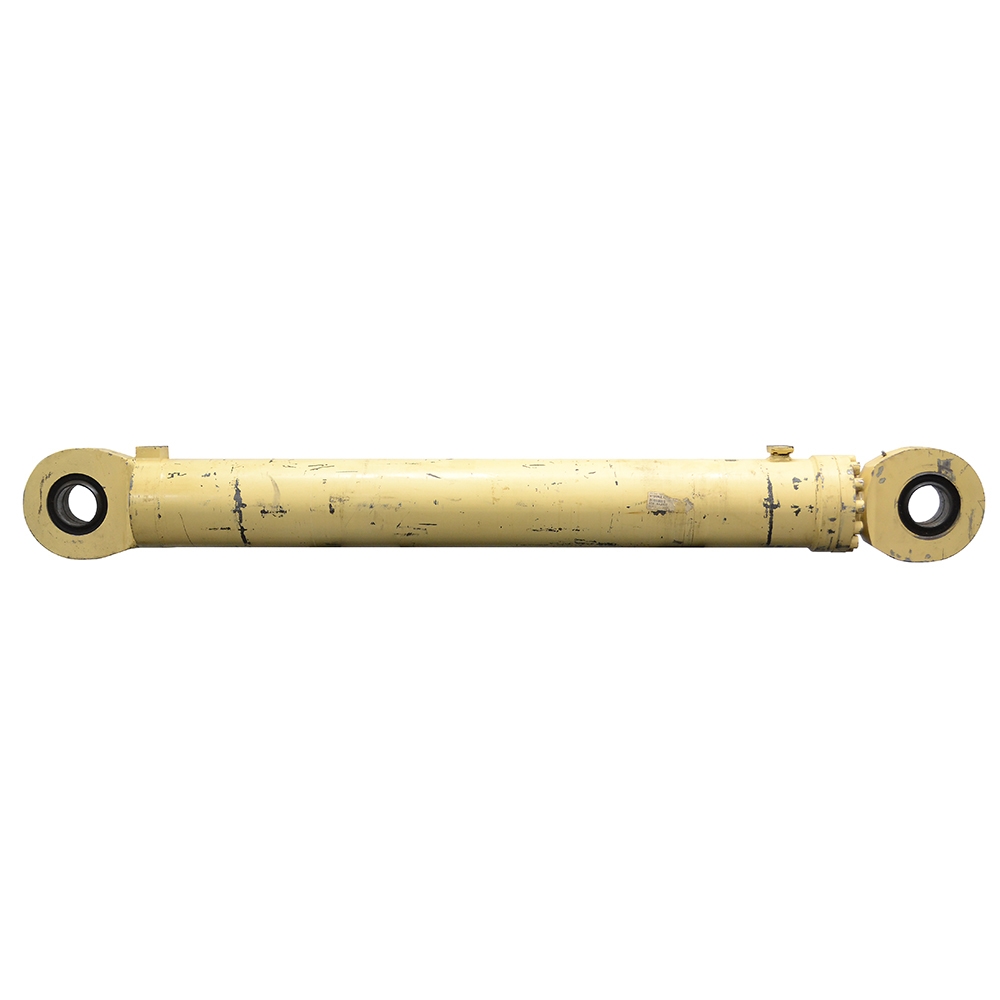

6.25(159mm) x 49.125(1248mm) x 4.33(110mm) Double-Acting Hydraulic Cylinder Fuchs Hydraulics 650188200 160110820249 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com

Fuchs Hydraulics . 650188200

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerFuchs Hydraulics
DimensionUnitinch
Weight835
WeightUnitlbs
diameter, height4.33
height_AttribRod Dia.
length74.875
length_AttribRetracted Length
moq, multiple, qtyInStock, tierMinQty11
MPN650188200
SKU9-20266
snippet6.25(159mm) x 49.125(1248mm) x 4.33(110mm) Double-Acting Hydraulic Cylinder Fuchs Hydraulics 650188200 160110820249, Double Acting Hydraulic CylindersFuchs Hydraulics,650188200,
tierPrice1699.95
width3.18
width_AttribWidth
Bore x Stroke6.25"(159mm) x 49.125"(1248mm)
Barrel Thickness0.813"
Gland RetainerBolt on gland
Pressure3000 PSI
Rod Dia4.33"(110mm)
Ports4 bolt 1" code 62 flange size 16
Retracted Length74.875"
Gland Face to Rod Pin Center22"
Shpg835 lbs.
Rod End, Base EndSwivel Eye
Width3.18"
Pin-Center-To-Swivel Eye-End4.92"
Swivel Eye Width3.34"
Pin Hole3.54"(90mm)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
surpluscenter.com9-202661111 @ $699.95
