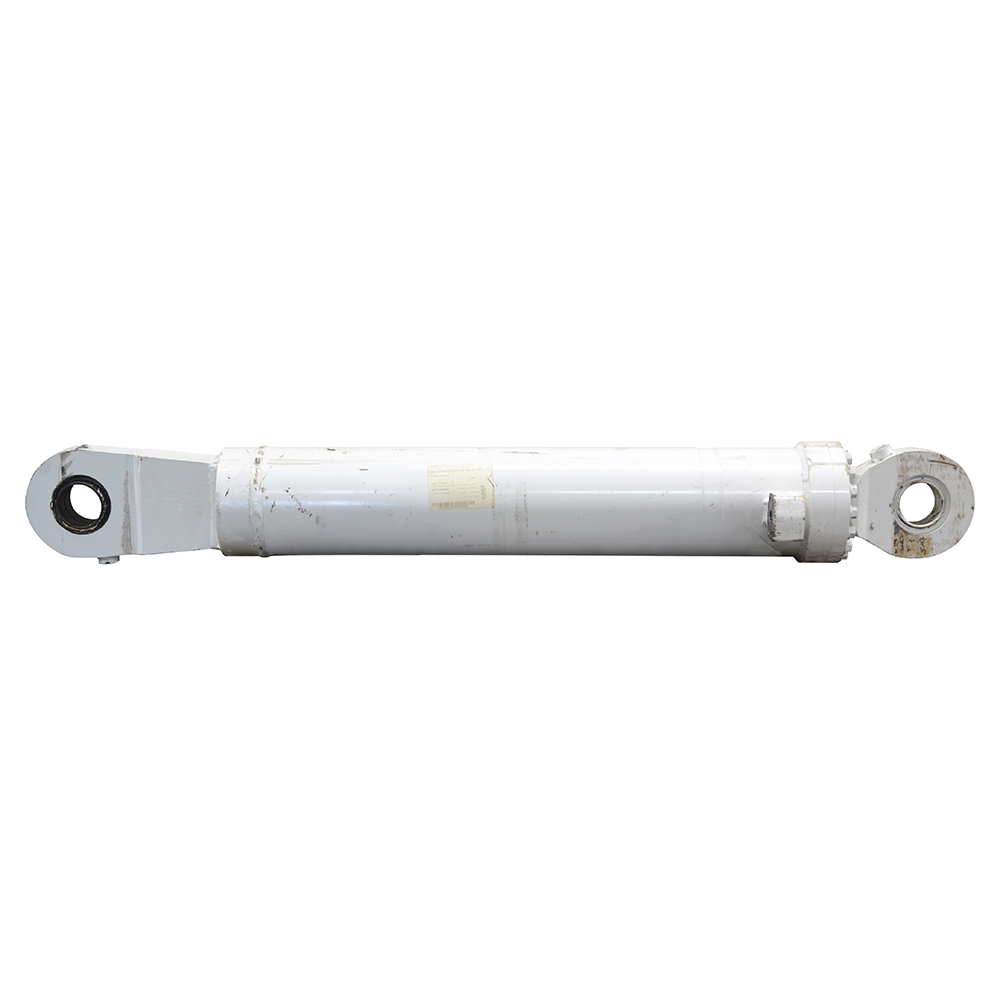

5.9(150mm) x 29.5(750mm) x 3.15(80mm) Double-Acting Hydraulic Cylinder 6501482000 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com

FUCHS . 650148200

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerFUCHS
DimensionUnitinch
Extra Product Name5.9(150mm) x 29.5(750mm) x 3.15(80mm) Double-Acting Hydraulic Cylinder 6501482000 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com
Weight410
WeightUnitlbs
diameter, height3.15
height_AttribRod Dia.
length54.25
length_AttribRetracted Length
moq, multiple, qtyInStock, tierMinQty11
MPN650148200
SKU9-20240
snippet5.9(150mm) x 29.5(750mm) x 3.15(80mm) Double-Acting Hydraulic Cylinder 6501482000, Double Acting Hydraulic Cylinders, 5.9 (150mm) x 29.5 (750mm) xFUCHS,650148200,
tierPrice1449.95
width2.31
width_AttribWidth
Bore x Stroke5.9"(150mm) x 29.5"(750mm)
Barrel Thickness0.583"
Gland RetainerBolt on gland
Pressure3000 PSI
Rod Dia3.15"(80mm)
Ports4 bolt 3/4" code 62 flange size 12
Retracted Length54.25"
Gland Face to Rod Pin Center5.25"
Shpg410 lbs.
Rod End, Base EndSwivel Eye
Width2.31"
Pin-Center-To-Swivel Eye-End3.48"
Swivel Eye Width1.875"
Pin Hole2.79"(70mm)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
surpluscenter.com9-202401111 @ $449.95
