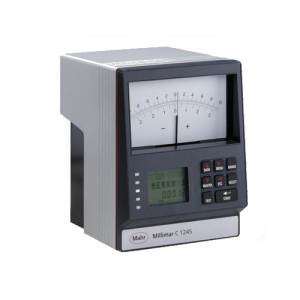

Order 5331250KAL by Mahr C 1245 M Compact Amplifier - US Mega Store

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, CompatibilityMahr
CategoryL1Test Equipment
CategoryL2Meters
CategoryL3Amplifiers
CategoryL4Mahr 5331250KAL
ConditionNEW
Extra Product NameOrder 5331250KAL by Mahr C 1245 M Compact Amplifier - US Mega Store
Weight2
WeightUnitkg
Weight_AttribProduct weight
moq, multiple, tierMinQty11
MPN, SKU5331250KAL
qtyInStockContact Us
tierPrice14400
DisplayAnalog scale, LCD 53 mm x 40 mm
Scale reading145 mm x 80 mm
Range and text display7 digit LCD, 5 x 7 dot matrix, alpha-numeric
Digital display7 digit LCD, 7segments
Range of digital display mm, Measuring Range, inductive probe+/- 2000
Range of analog display mm+/- 10, +/- 30, +/- 100, +/- 300, +/- 1000, +/- 3000, +/- 10000
Range of analog display inches+/- .0003'', +/- .001'', +/- .003'', +/- .01'', +/- .03'', +/- .1'', +/- .3''
Resolution mm0,1
Tolerance display5 LEDs, 3 colors
Probe inputs4
Measuring combinationDefinition of the input combinations via formula editor
Features16
Programs, Test steps6
Dynamic functionsMax, Min, Max-Min, (Max+Min)/2, Mean
Statistical functionsN, x-bar, S, Xmax, Xmin, Range
ClassificationMax. 998, max on I/O
ConfigurationPC, keyboard
Zero setterZero setting at any point
Response time digital display0.25 s
Response time analog display0.3 s
Response time control outputs, Response time analog output0.02 s
Response time measuring value memory0.005 s
Data transmission rate40 Hz
Error limit, digital display0,3 % (min. 0,2 mm)
Error limit, analog display2 %
Error limit, analog output0,1 %
Data interfaceRS-232C, wireless
Hardware interfacesRS-232C, I/O interface
Control inputs3 optocoupler inputs, 24 V, 10 mA
Control outputs6 optocoupler outputs, 24 V, 100 mA
Analog outputMax. +/-4V, sensitivity adjustable
Energy supply230 V/115 V; 50/60 Hz
Power consumption11 VA
IP protection categoryIP 42
Working temperature MIN, Operating temperature Min0 C
Working temperature MAX40 C
Operating temperature Max50 C
Temperature coefficient0.005 %/C
Product weight2 kg

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com5331250KAL1Contact Us11 @ $4400.00
