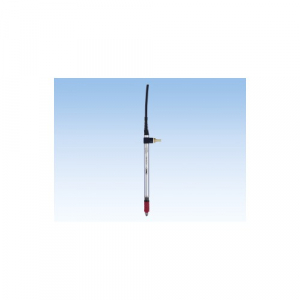

Mahr Federal P2104FB Federal Type Inductive Probe w/ Pneumatic Push 5324084. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Mahr . 5324084

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMahr
DimensionUnitfoot
length2.5
length_AttribCable length
moq, multiple, tierMinQty11
MPN, SKU5324084
qtyInStock0
snippetMahr Federal P2104FB Federal Type Inductive Probe w/ Pneumatic Push 5324084. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice1855.00
Measuring range± 2.0 mm / ± 0.079"
Distance of lower stop- 2.2 to 0 mm / -0.09 to 0"
Distance of upper stop8.4 to 10.4 mm / -0.33 to 0.41"
Lifter/RetractionCompressed air (max. 1 bar)
Measuring force at the electrical zero pointdepending on air pressure
Increase in measuring force, within range ± 5 0 mm-
Sensitivity deviation0.3 %
within range ± 0 5 mm0.5 µm / 20 µin
within range ± 1 0 mm2.0 µm / 80 µin
within range ± 2 0 mm4.0 µm / 160 µin
Protection class according to DIN VDE 0470 Part 1 / IEC 60529IP64
Cable length2.5 m / 8 ft

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Megadepot5324084111 @ $855.00
usmegastore.com53240841-211 @ $855.00
