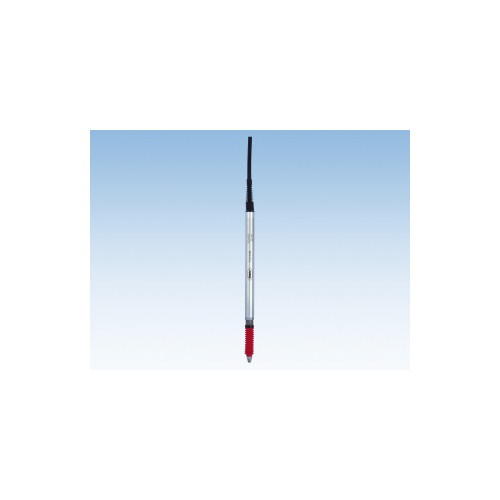

Mahr Federal P2010M +/-5mm Range Mahr Type Standard Inductive Probe 5324010. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Mahr . 5324010

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMahr
DimensionUnitfoot
length2.5
length_AttribCable length
moq, multiple, tierMinQty11
MPN, SKU5324010
qtyInStock0
snippetMahr Federal P2010M +/-5mm Range Mahr Type Standard Inductive Probe 5324010. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice1782.00
Measuring range± 5.0 mm / ± 0.197"
Distance of lower stop- 5.3 mm / - .20"
Distance of upper stop+ 5.3 / + .20"
Lifter/Retraction, within range ± 0 5 mm, within range ± 1 0 mm-
Measuring force at the electrical zero point0.75 N ± 0.15 N
Increase in measuring force0.1 N / mm
Sensitivity deviation0.3 %
within range ± 2 0 mm4.0 µm / 160 µin
within range ± 5 0 mm20.0 µm / 800 µin
Protection class according to DIN VDE 0470 Part 1 / IEC 60529IP64
Cable length2.5 m / 8 ft

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Megadepot5324010111 @ $782.00
usmegastore.com53240101-211 @ $782.00
