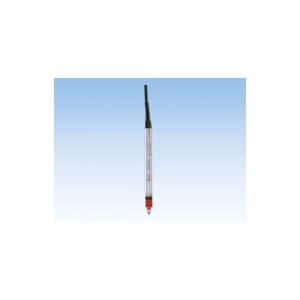

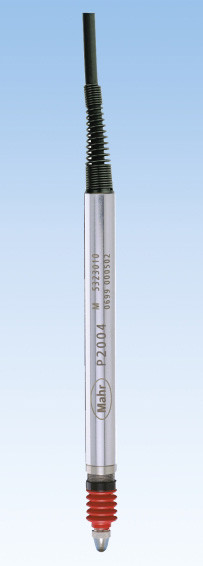

Mahr Federal P2004F +/-2mm Range Federal Type Inductive Probe 5323014. ✅Mahr Federal authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Mahr . 5323014

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMahr
DimensionUnitfoot
length2.5
length_AttribCable length
moq, multiple, tierMinQty11
MPN, SKU5323014
qtyInStock0
snippetMahr Federal P2004F +/-2mm Range Federal Type Inductive Probe 5323014. ✅Mahr Federal authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice1637.00
Measuring range± 2.0 mm / ± 0.079"
Distance of lower stop- 2.2to0 mm / -0.09to0"
Distance of upper stop2.2to4.4 mm / 0.09to0.173"
Lifter/RetractionN/A
Measuring force at the electrical zero point0.75 N ± 0.15 N
Increase in measuring force0.2 N / mm
Sensitivity deviation0.3 %
within range ± 0 1 mm-
within range ± 0 5 mm0.4 µm/ 16 µin
within range ± 1 0 mm1.5 µm/ 60 µin
within range ± 2 0 mm3.0 µm/ 120 µin
Protection class according to DIN VDE 0470 Part 1 / EN 60529IP64
Cable length2.5 m / 8 ft

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Megadepot5323014111 @ $637.00
penntoolco.com532301411
usmegastore.com532301414-6 Weeks Factory Lead Time11 @ $637.00
penntoolco.com116825111 @ $699.95
