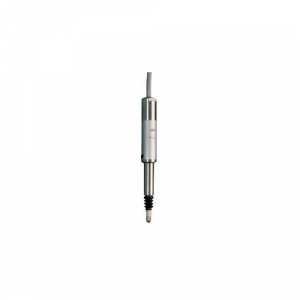

Mahr Federal 1301 Millimar +/-1mm Range Straight Type Inductive Probe 5313010. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Mahr . 5313010

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMahr
DimensionUnitfoot
length1.5
length_AttribCable length
moq, multiple, tierMinQty11
MPN, SKU5313010
qtyInStock0
tierPrice1925.00
Measuring range± 1.0 mm / ± 0.039"
Distance of lower stop (Relative to the electrical zero point)-1.1 to 0 mm / -0.043 to 0"
Distance of upper stop (Relative to the electrical zero point)+2.7 mm / +0.106"
Lifter/RetractionCable release
Measuring force at the electrical zero point0.75 N ± 0.15 N
Increase in measuring force0.4 N / mm
Sensitivity deviation0.3 %
within range ± 0 3 mm, within range ± 2 0 mm-
within range ± 0 5 mm0.5 µm / 20 µin
within range ± 1 0 mm2.0 µm / 80 µin
Protect class acc to IEC 60529IP64
Cable length1.5 m / 5 ft
Compatibility - MahrLVDT

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Megadepot5313010111 @ $925.00
usmegastore.com53130101-211 @ $925.00
