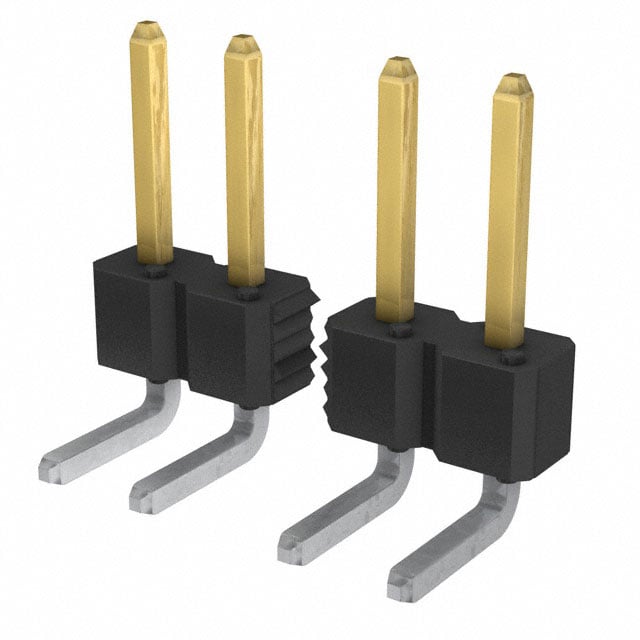

Amphenol ICC (FCI) . 77315-118-11LF

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, MfrAmphenol ICC (FCI)
Extra Product Name77315-118-11LF Amphenol ICC (FCI) | Connectors, Interconnects | DigiKey
atoms, minimum, moq, multiple, Number of Rows1
MPN77315-118-11LF
qtyInStock0
SKU77315-118-11LF-ND
PackageBag
Part StatusActive
Connector TypeHeader, Breakaway
Contact TypeMale Pin
Pitch - Mating0.100" (2.54mm)
Number of Positions11
Row Spacing - Mating, Overall Contact Length, Features, Operating Temperature, Ingress Protection, Current Rating (Amps), Voltage Rating, Mated Stacking Heights, Applications-
Number of Positions LoadedAll
StyleBoard to Board
ShroudingUnshrouded
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening TypePush-Pull
Contact Length - Mating0.230" (5.84mm)
Contact Length - Post0.120" (3.05mm)
Insulation Height0.094" (2.40mm)
Contact ShapeSquare
Contact Finish - MatingGold or Gold, GXT?
Contact Finish Thickness - Mating30.0?in (0.76?m)
Contact Finish - PostTin
Contact MaterialPhosphor Bronze
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Insulation ColorBlack
Contact Finish Thickness - Post78.7?in (2.00?m)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key77315-118-11LF-ND11
HotendaH131042111
Digi-Key4275932500500500 @ $0.57
